58

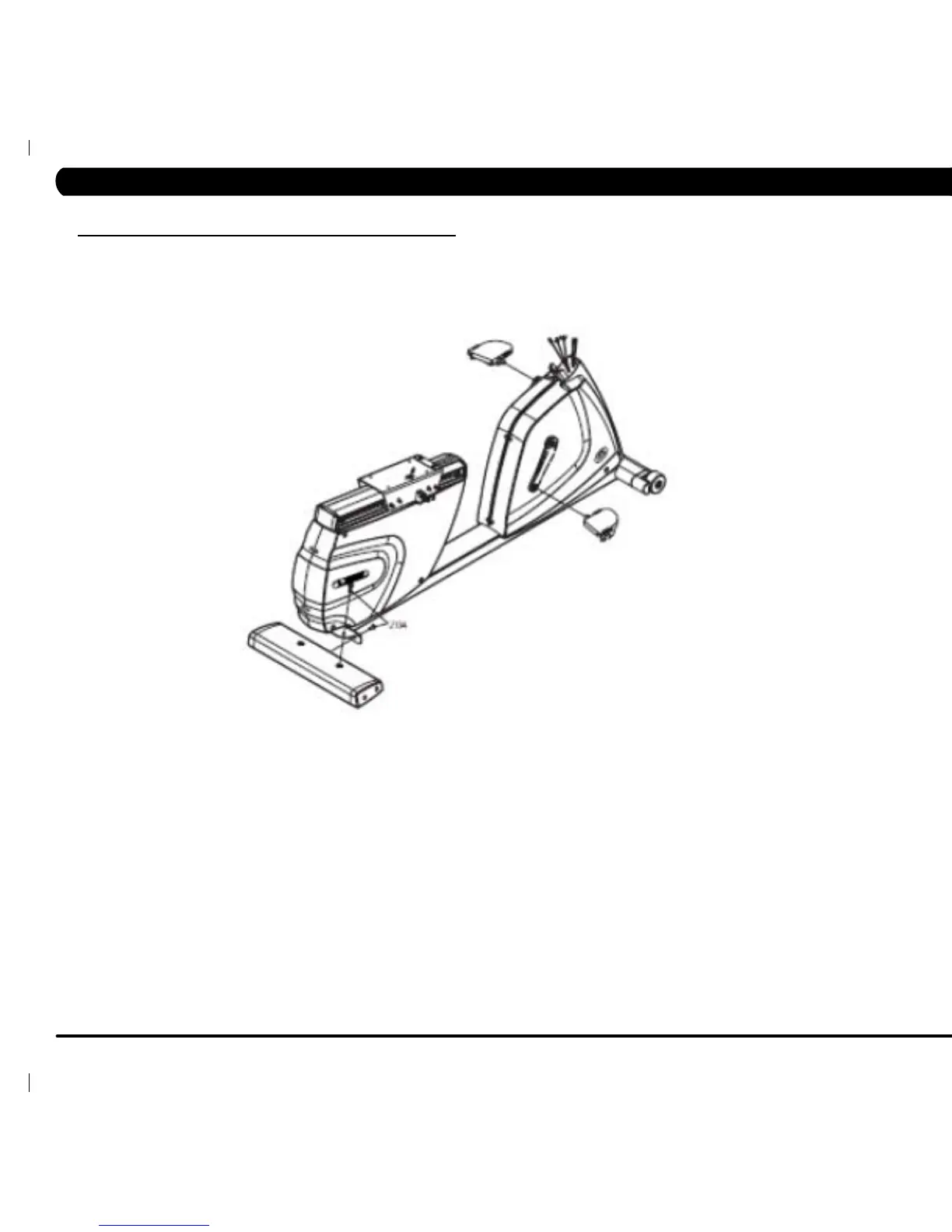

REAR FOOT
Install the rear foot in position at the rear of the bike with the mating holes in the frame bracket. Insert the four screws (Z04) through the frame bracket and
rear foot. Using the #5 Allen Wrench (Z32) tighten the screws securely.
PEDALS
Install the pedals on the pedal cranks using the Open Wrench (Z31). The Matrix logo on the pedal strap must point upward.
NOTE: Be careful to align the threads correctly to avoid damage. A little grease on the threads should help the pedals to screw in easily and correctly. Turn
the left pedal spindle counter clockwise when threading into the crank arm, and turn the right pedal spindle clockwise when threading into the crank arm.
CHAPTER 8: BIKE SPECIFICATIONS AND ASSEMBLY GUIDE
8.4 ASSEMBLY INSTRUCTIONS
STEP 1
