8.4 ASSEMBLY INSTRUCTIONS CONTINUED
CHAPTER 8: BIKE SPECIFICATIONS AND ASSEMBLY GUIDE

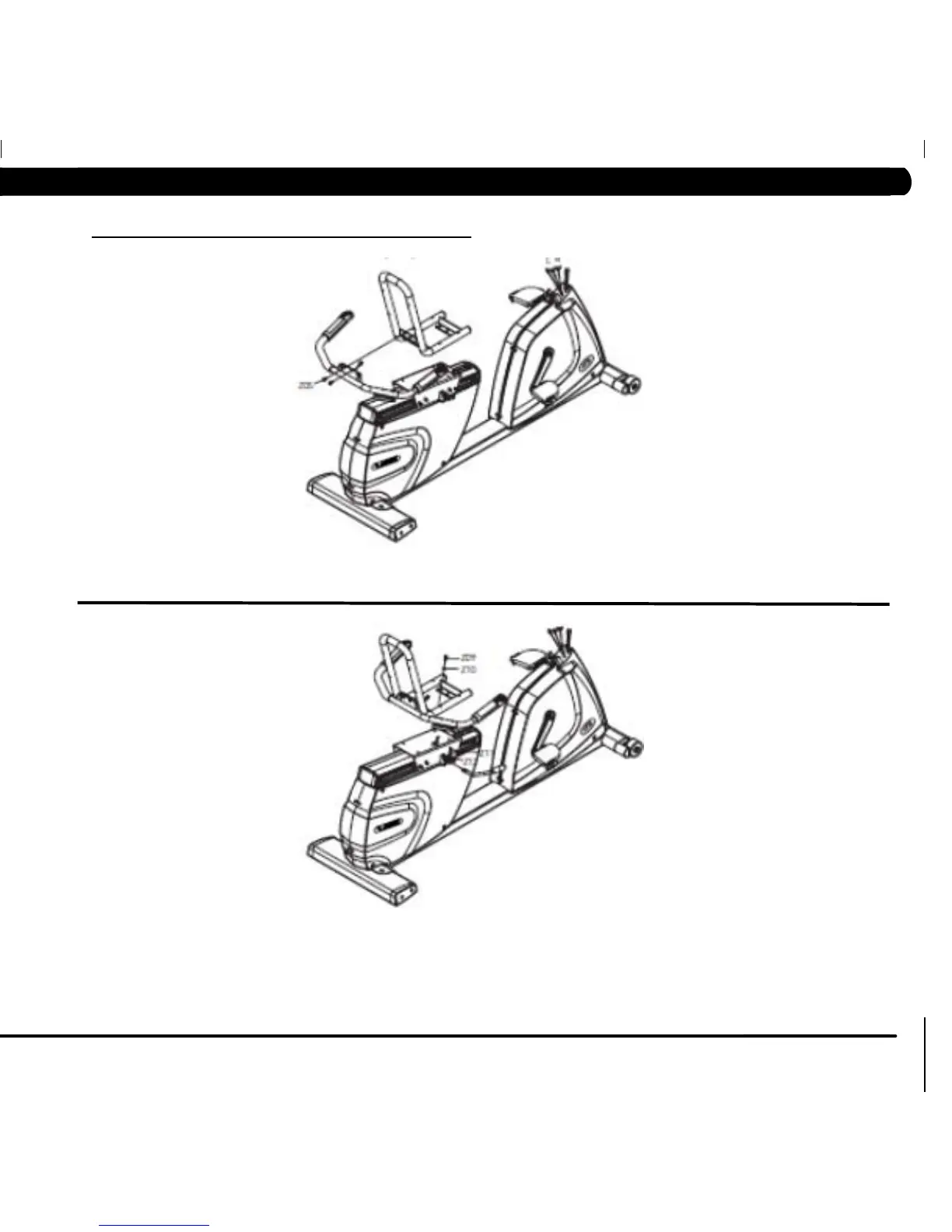

Pull the heart rate wire through the hole in the bottom of the seat frame, and make sure the wire gets through the tunnel of the plate. Mount the seat
handlebars to the seat frame by using the three socket flat head screws (Z05).
STEP 2
59
1) Install the seat rail on the seat adjustment bracket using the four washers (Z10) and screws
(Z09). Tighten them with the #5 Allen Wrench.
2) Connect the wire harness from the seat handlebar to the wire harness coming from the seat
frame.
3) Slide the seat adjustment handle between the teeth of the seat adjustment bracket. Insert the
two spring washers (Z12) and socket head screws (Z11), and tighten with the #4 Allen Wrench.
STEP 3
To Next Page
