8.4 ASSEMBLY INSTRUCTIONS CONTINUED
CHAPTER 8: BIKE SPECIFICATIONS AND ASSEMBLY GUIDE
ACCESSORY

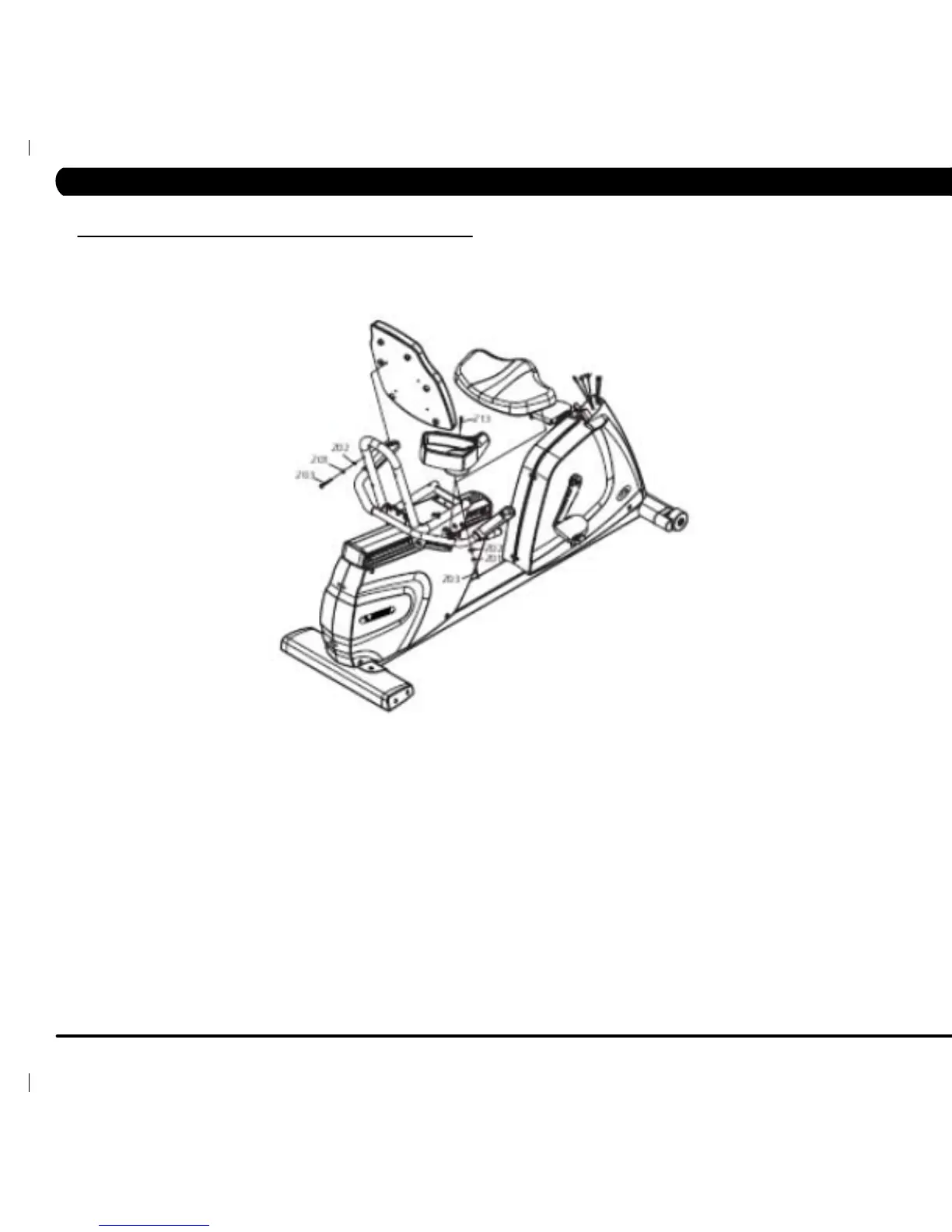

Secure the accessory rack to the seat handlebar with two button head screws (Z13). Be careful when inserting the screws to clear the wires inside the
handlebar to prevent damage. Tighten with the Phillips screwdriver (Z34).
SEAT AND SEAT BACK
Mount the seat to the seat frame with four arc washers (Z02), spring washers (Z01), and socket button head screws (Z03). Tighten with the #5 Allen
Wrench (Z32). Mount the seat back to the seat frame with four arc washers (Z02), spring washers (Z01) and socket button head screws (Z03). Tighten with
the #5 Allen Wrench (Z32).
