Maxim Integrated Page 15 of 42
5. Go to the Device tab and select Update SmartSensor_MAX32664 Software. Then
select Update Firmware and select the *.msbl file from the extracted Eval Package and
click Open.

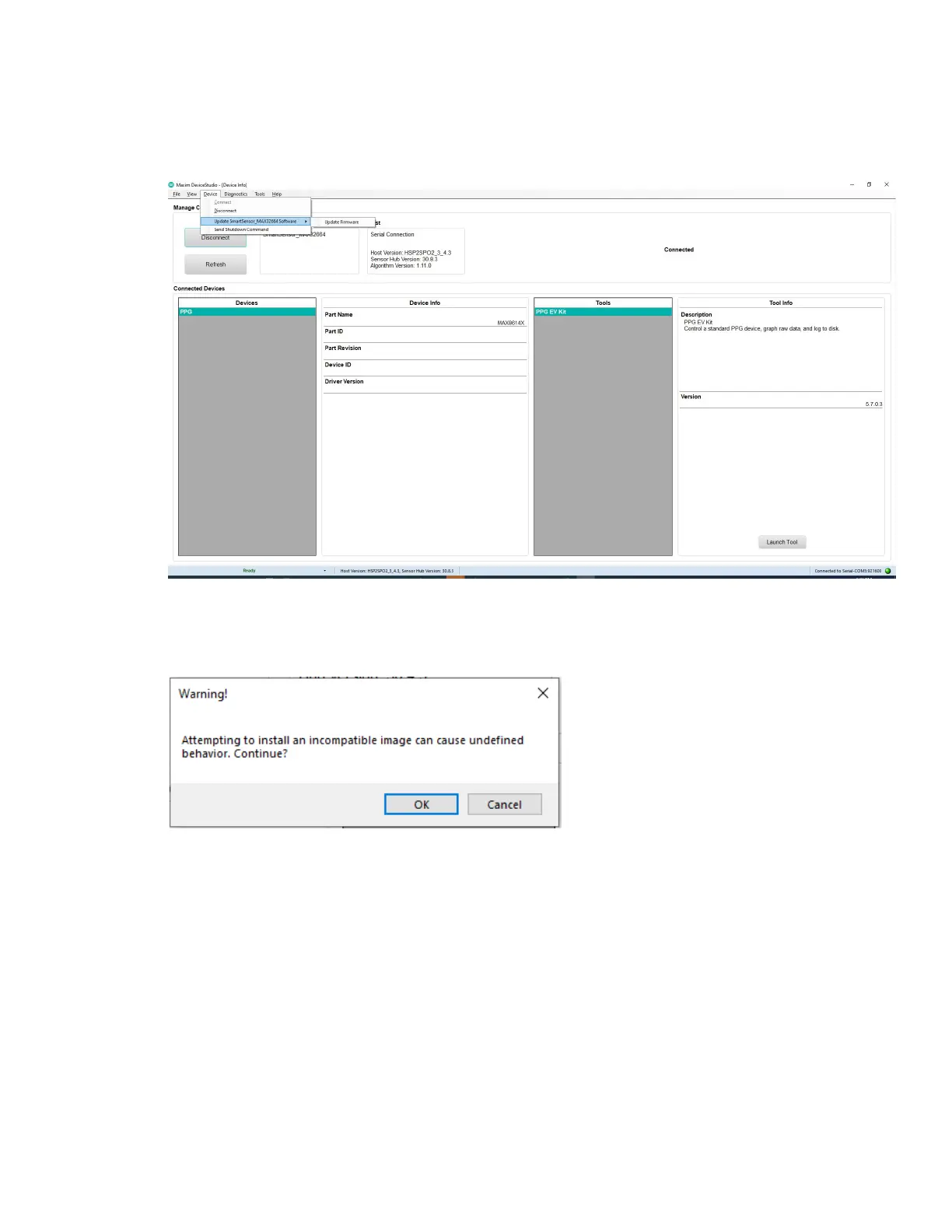

Figure 12. Device tab to update the MAX32664 .msbl.
6. Click OK on the Warning! pop-up window.
Figure 13. Warning message.
The embedded algorithm for heart-rate and SpO
2
measurement is uploaded to the
MAX32664 microcontroller on the sensor board.
