Maxim Integrated Page 32 of 42

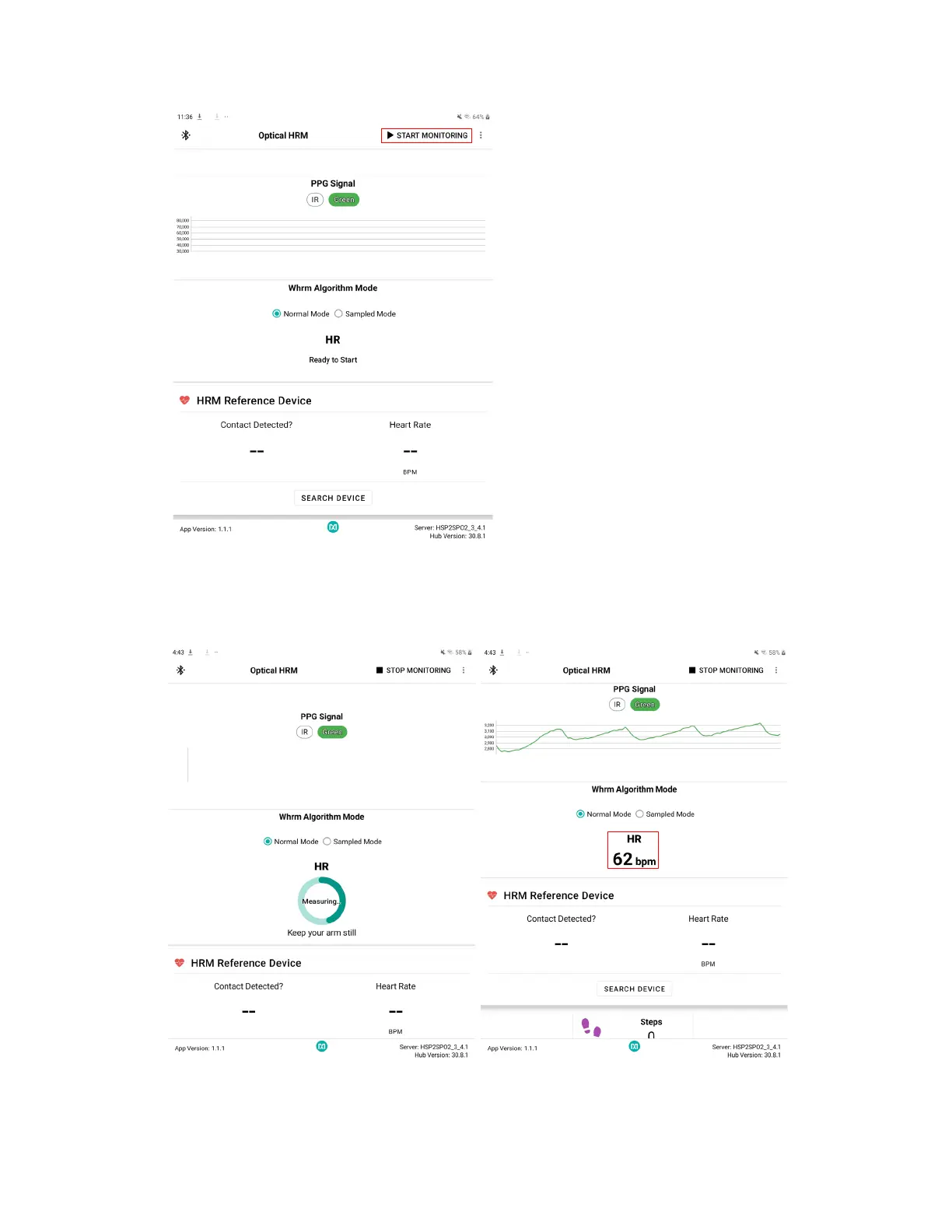

Figure 38. Start heart-rate measurement.

2. After a brief period, the measurement is complete, and the heart-rate measurement is

displayed. Click the stop icon (STOP MONITORING) in the upper right corner of the app

to stop the measurement.

Figure 39. Heart-rate measurement.
