• Pi indicates whether the IR or Red signal’s observed perfusion index are too low.
• Reliable R indicates that the calculated R values are not consistent, therefore SpO
2
is not being reported.

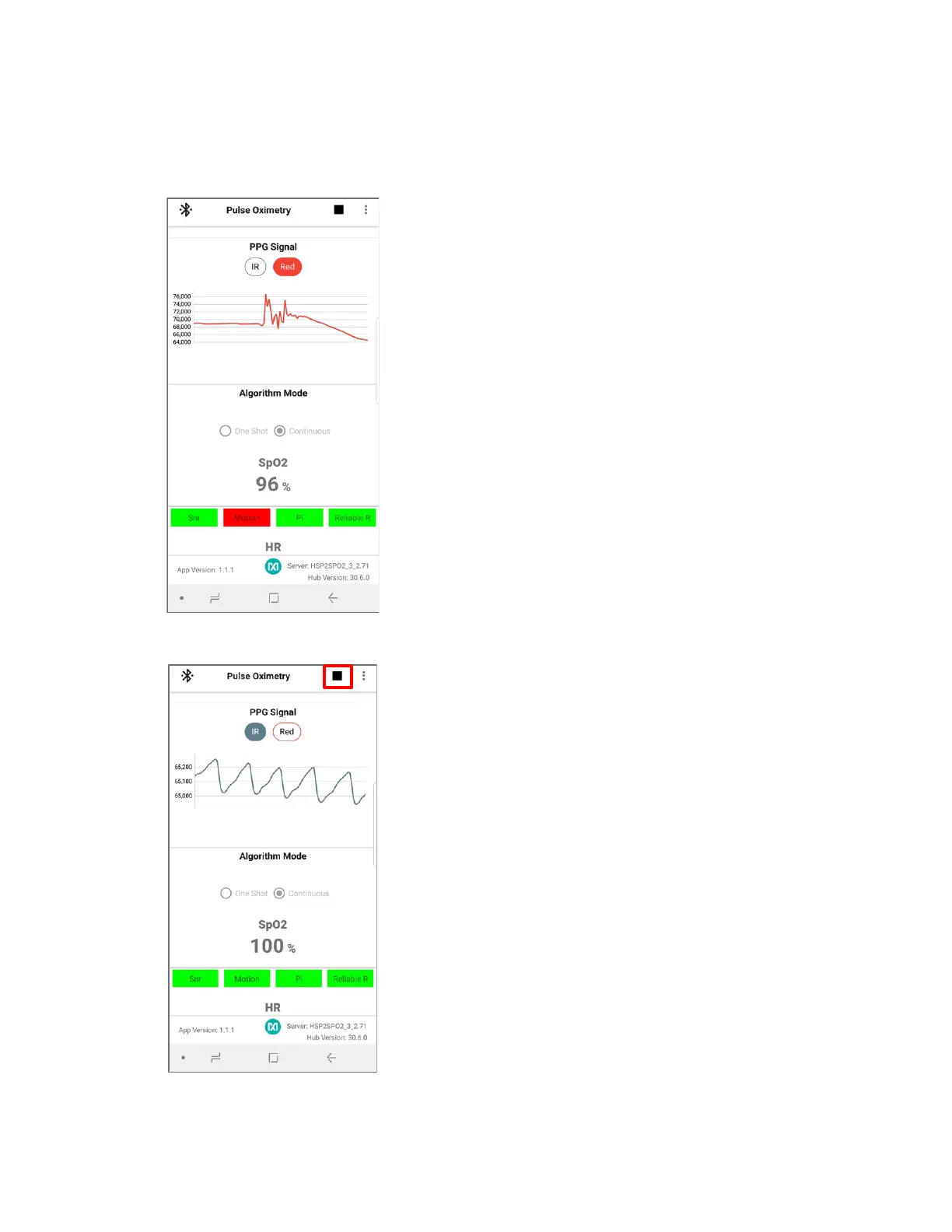

Figure 44. Motion has turned red to indicate excessive motion.
5. Click the stop icon to terminate the measurement.
Figure 45. Stop monitoring icon.
