Setup
Connections
EPOS4 Disk 60/12 Hardware Reference
CCMC | 2022-05 | rel10685
3-23

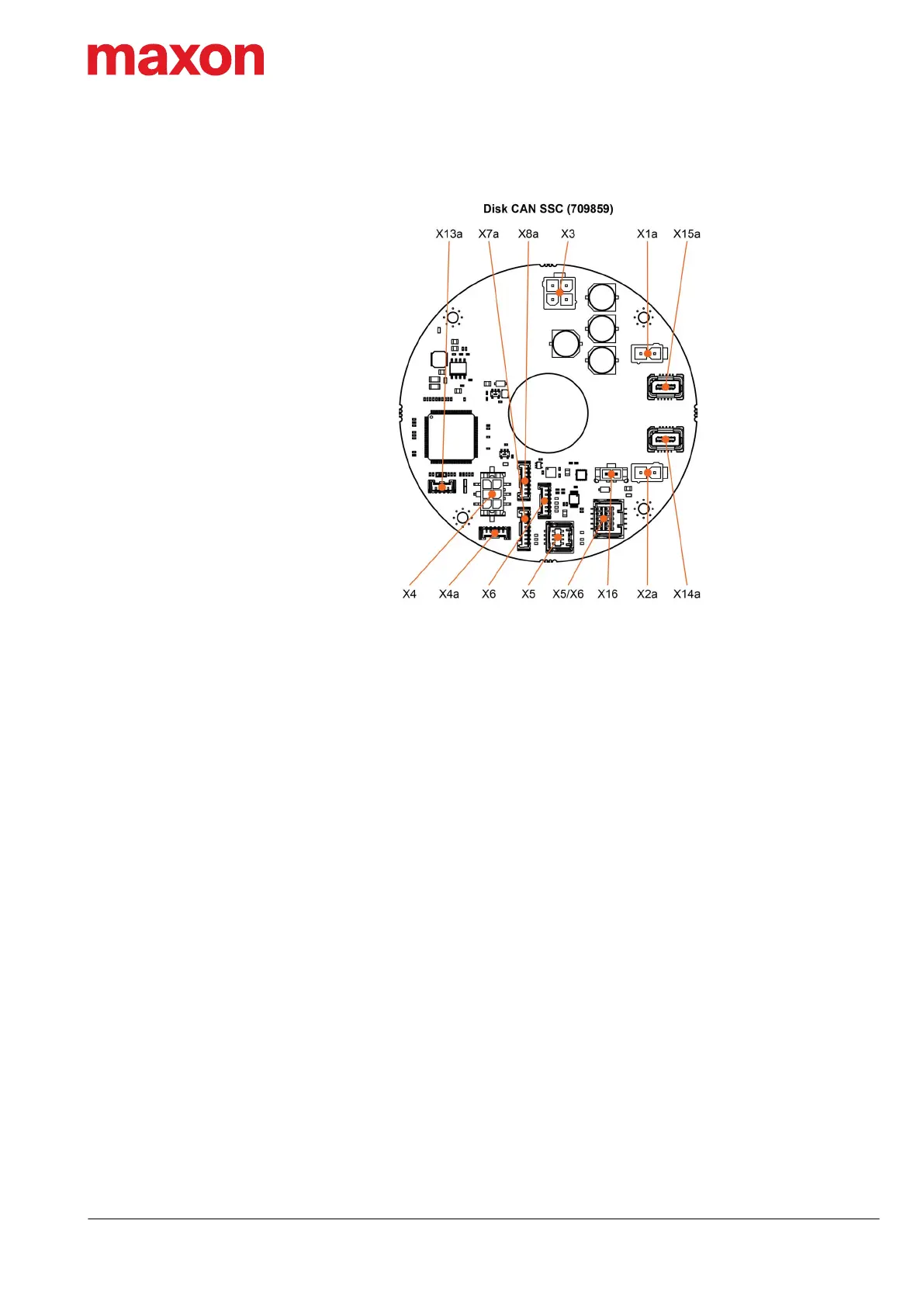

Figure 3-9 EPOS4 Disk 60/12 CAN SSC (709859) – Connectors
X1a Power supply page 3-26 X6 SSI page 3-37
X2a Logic supply page 3-28 X7a Digital I/O page 3-39
X3 Motor page 3-29 X8a Analog I/O page 3-42
X4 Hall Sensor page 3-30 X13a USB page 3-44
X4a Hall Sensor page 3-30 X14a CAN IN page 3-45
X5/X6 Encoder/Sensor page 3-32 X15a CAN OUT page 3-45
X5 Encoder page 3-34 X16 Brake page 3-48
