Maxon GPTLR-44 - 12 Volt Battery Connections Diagram

11921 Slauson Ave. Santa Fe Springs, CA. 90670 (800) 227-4116 FAX (888) 771-7713
29
STEP 3 - ATTACH OPTIONAL BATTERY BOX & FRAME
TO VEHICLE (IF EQUIPPED) - Continued
5. Connect battery cables, fused cables, and ground
cables for 12 volt power as shown in FIG. 29-1. Refer
to FIG. 29-1 for connecting 24 volt power.
NOTE: Always connect fused end of power cable to battery positive (+) terminal.
NOTE: To connect charge lines, refer to instructions provided with each charge
line kit.
FUSED CABLE
(SEE NOTE)
FUSED CABLE TO PUMP BOX
(IN PARTS BOX)
8” LG.
RED CABLE
GROUND CABLE TO PUMP
BOX OR COMMON CHASSIS
GROUND, 74” LG.
(BATTERY BOX KIT ITEM)

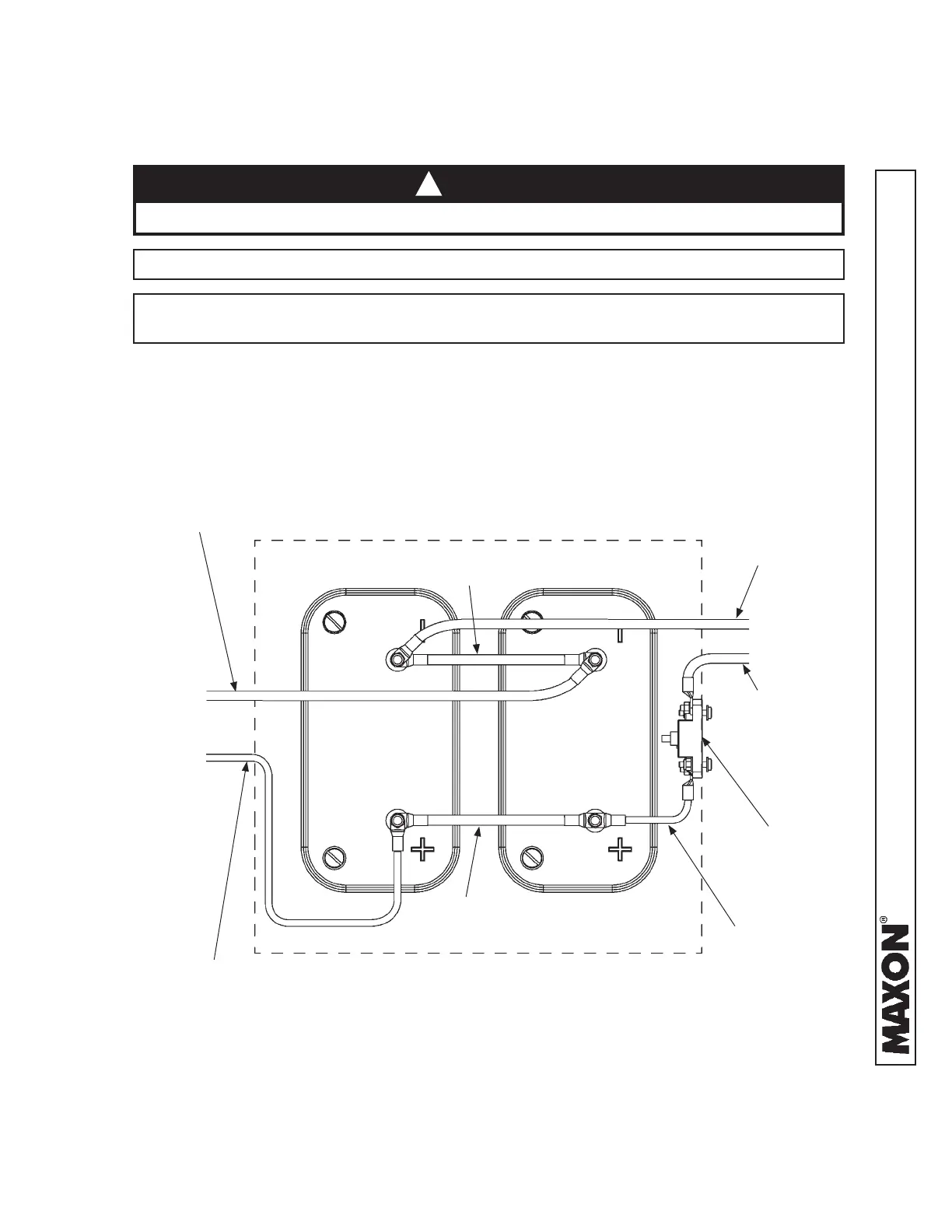

12 VOLT BATTERY CONNECTIONS
FOR 12 VOLT POWER
FIG. 29-1
Remove all rings, watches and jewelry before doing any electrical work.
WARNING
!
150 AMP
CIRCUIT BREAKER
(-) BATTERY
CABLE TO
COMMON
GROUND
8” LG.
BLACK CABLE
12” LG.
RED CABLE
