CAUTION
!
To prevent injury, unfold platform
before repositioning opener.
PLATFORM LOWERED FROM STOWED
POSITION (RH SIDE VIEW)

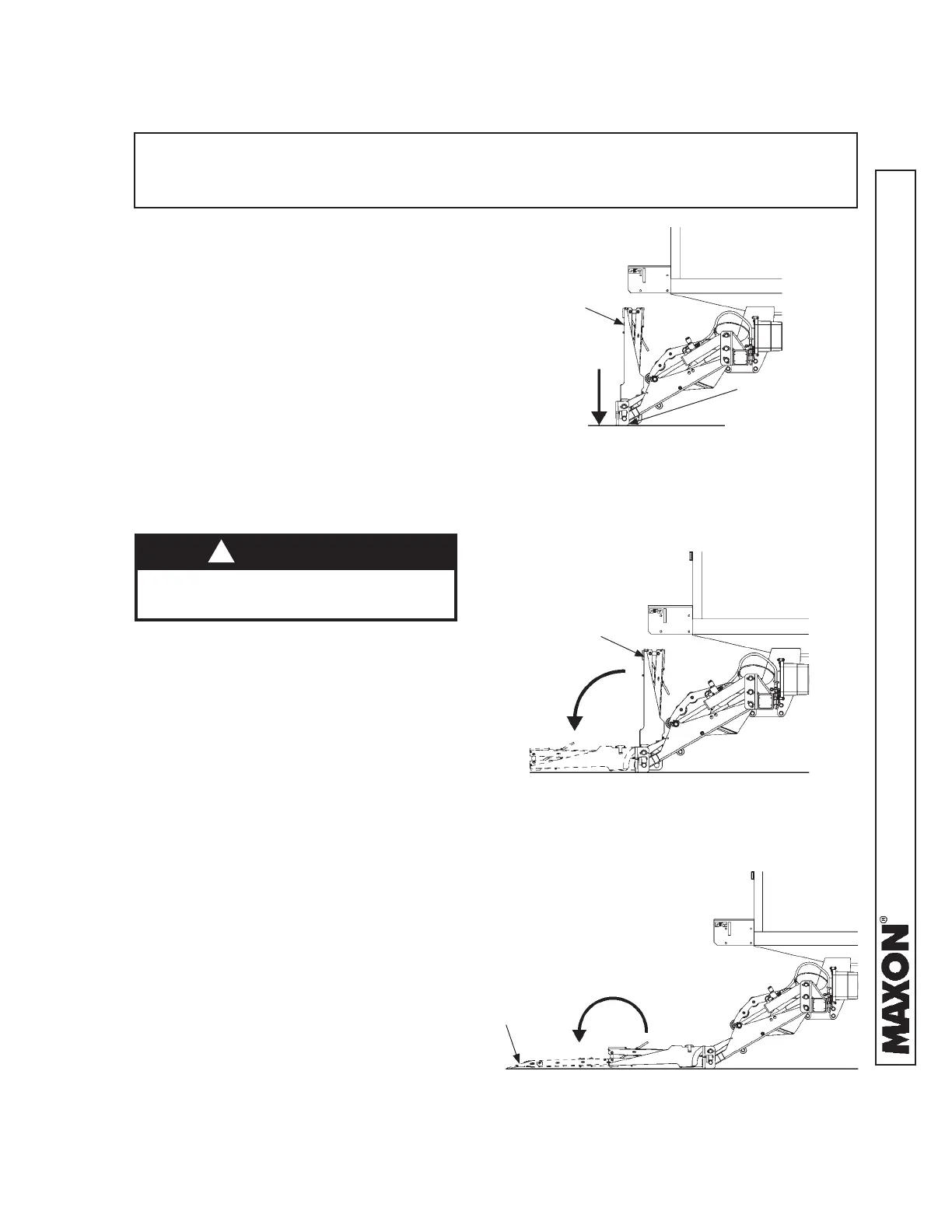

FIG. 59-1
1. The MAXON-recommended proce-
dure for repositioning the opener is
as follows. Lower the platform from
stowed position (FIG. 59-1).
2. Unfold the platform (FIG. 59-2).
UNFOLDING PLATFORM
FIG. 59-2
NOTE: The platform must always stow and unfold without hitting underside of vehicle.
Platform should unfold as close as possible to position shown in FIG. 59-1,
but must never be positioned so it falls open.
PLATFORM
3. Unfold the fl ipover (FIG. 59-3).
UNFOLDING FLIPOVER
FIG. 59-3
4. Measure vehicle bed height.
Then move the opener, as
required, to the matching bed
height position for your Liftgate
as shown in FIG. 60-1B and
FIG. 61-1B.
FLIPOVER
STEP 14 - ADJUST OPENER (IF REQUIRED)
PLATFORM
SHACKLES
TOUCHING
THE GROUND
To Next Page
