83

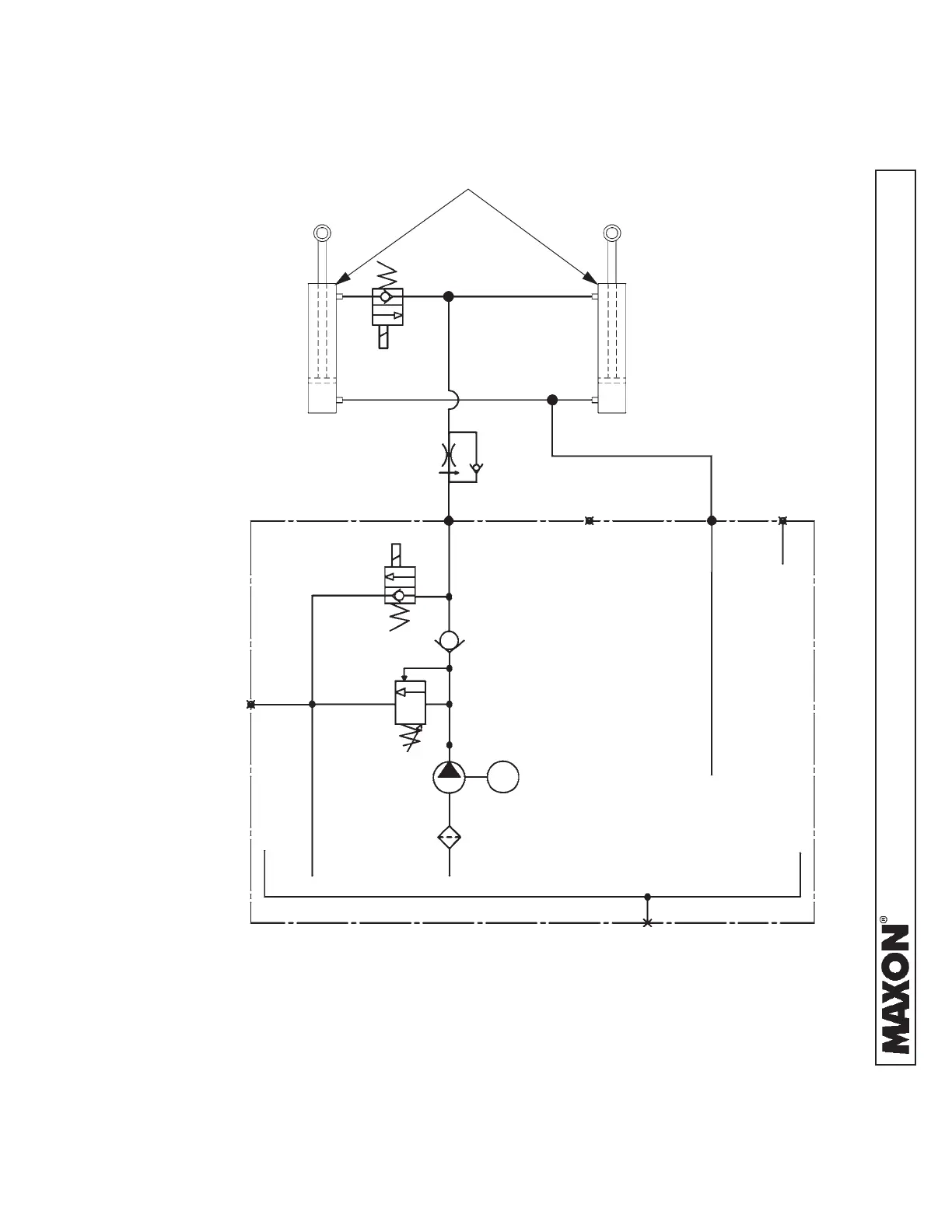

HYDRAULIC SCHEMATIC (GRAVITY DOWN)
FIG. 83-1
M
4.5 GPM FLOW
CONTROL VALVE
VALVE “A”
RELIEF VALVE
(SET AT 3250 PSI)
PUMP
MOTOR
(REF)
RESERVOIR
CHECK VALVE
FILTER
DRAIN HOLE (PLUGGED)
HYDRAULIC CYLINDERS
FILL HOLE
(PLUGGED)
HYDRAULIC
LOCK VALVE
VENT
PORT
AUX. HAND
PUMP PORT
(PLUGGED)
PORT B - RETURN
(PLUGGED)
PORT A - RAISE
