63

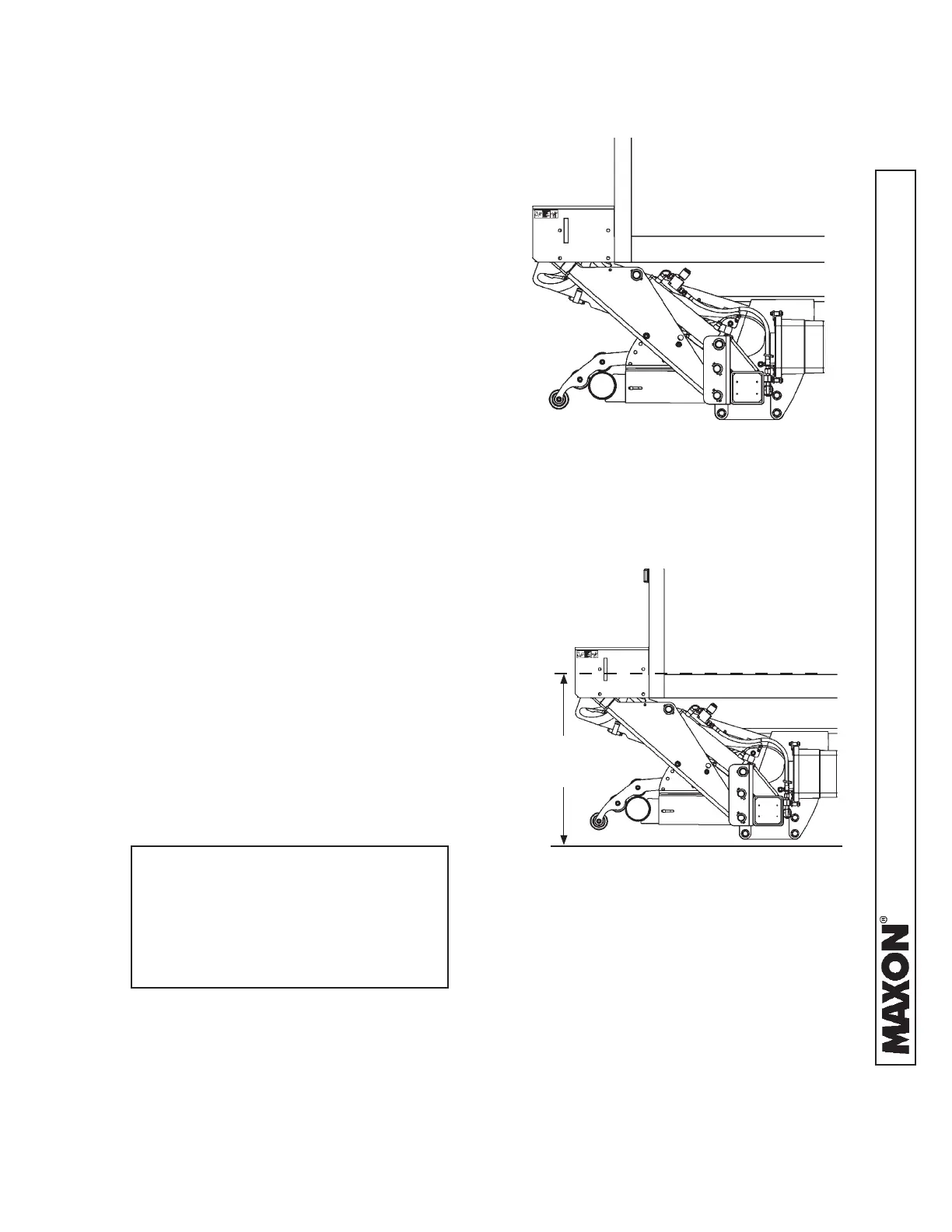

1. Stow the Liftgate under hydraulic
pressure (FIG. 63-1).
LIFTGATE WITH PLATFORM STOWED
(STANDARD UNDERRIDE SHOWN )
FIG. 63-1
2. Measure vehicle bed height (FIG. 63-2).
NOTE: If underride is already bolted
in correct position for your
bed height, and if tube posi-
tion is adjustable, go to the
instructions for ADJUSTING
UNDERRIDE TUBE.
MEASURING BED HEIGHT
(STANDARD UNDERRIDE SHOWN)
FIG. 63-2
BED HEIGHT
(UNLOADED)
STEP 15 - ADJUST UNDERRIDE - Continued
3. Refer to FIGS. 64-1B, 64-2B, and 65-
1B to fi nd the hole position that match-
es your model of Liftgate, underride,
and bed height.
To Next Page
