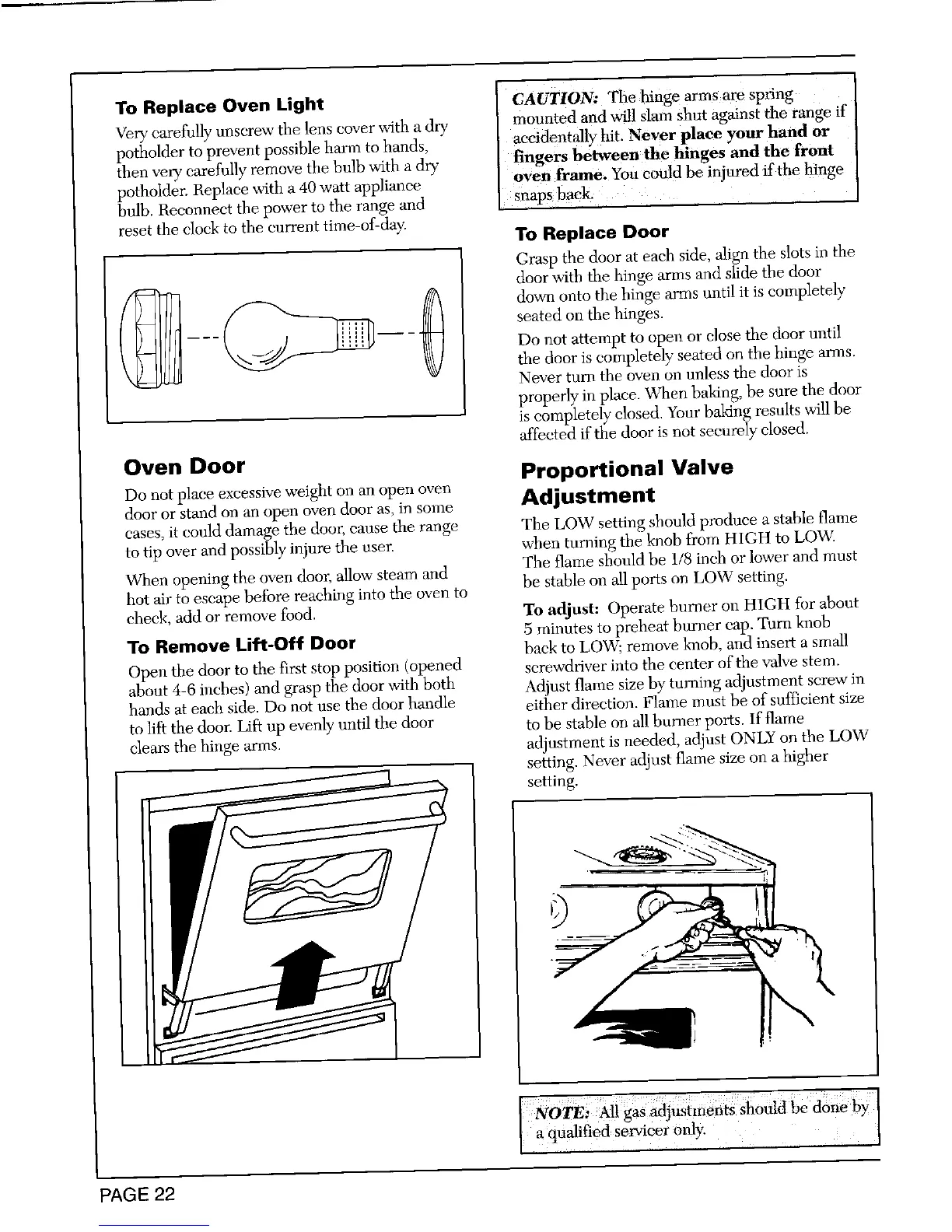

To Replace Oven Light CAUTION: The hinge arms are spring
Very carefully unscrew the lens cover with a dry mounted and will slam shut against the range if
potholder to prevent possible harm to hands, accidentally hit. Never place your hand or
then very carefully remove the bulb with a dry' fingers between the hinges and the front
potholder. Replace with a 40 watt appliance oven frame. You could be injltred if the hinge
bulb. Reconnect the power to the range and snaps back
reset the clock to the current time-of-d_'.
To Replace Door
Grasp the door at each side, 'align the slots in tile
door with the hinge arms and slide the door
_ _ @ down onto the hinge arms until it is completely
__ _ seated on the hinges.
Do not attempt to open or"close the door until
the door is completely seated on the hinge arms.
Never tuna the oven on unless the door is
properly in place. When baking, be sure the door
is completely closed. Ibur baking results will be
affected if the door is not securely closed.
Oven Door Proportional Valve
Do not place excessive weight on an open oven
door or stand on an open oven door as, in some Adjustment
cases, it could damage the door, cause the range The LOW setting should produce a stable flame
to tip over and possibly injure the user. when turning the knob from HIGH to LOW.
When opening the oven door, allow steam and The flame should he 1/8 inch or lower and must
hot air to escape before reaching into the oven to be stable on all ports on LOW setting.
cheek, add or remove food. To adjust: Operate burner on HIGH for about
5 minutes to preheat burner cap. Turn knob
To Remove Lift-Off Door back to LOW; remove knob, and insert a small
Open the door to the first stop position (opened screwdriver into the center of the valve stem.
about 4-6 inches) and grasp the door with both Adjust flame size by turning adjustment screw in
hands at each side. Do not use the door handle either direction. Flame must be of sufficient size
to lift the door. Lift up evenly until the door to be stable on all burner ports. If flame
clears the hinge arms. adjustment is needed, adjust ONLY on the LOW
setting. Never adjust flame size on a higher
setting.
:NOTE, Ali gas _a]iis_inen_s Siio_ld be dode:by'
: a :RSa!ifled Servicer :Only':
: ; ,J ,i ,,, ,. .
PAGE22
