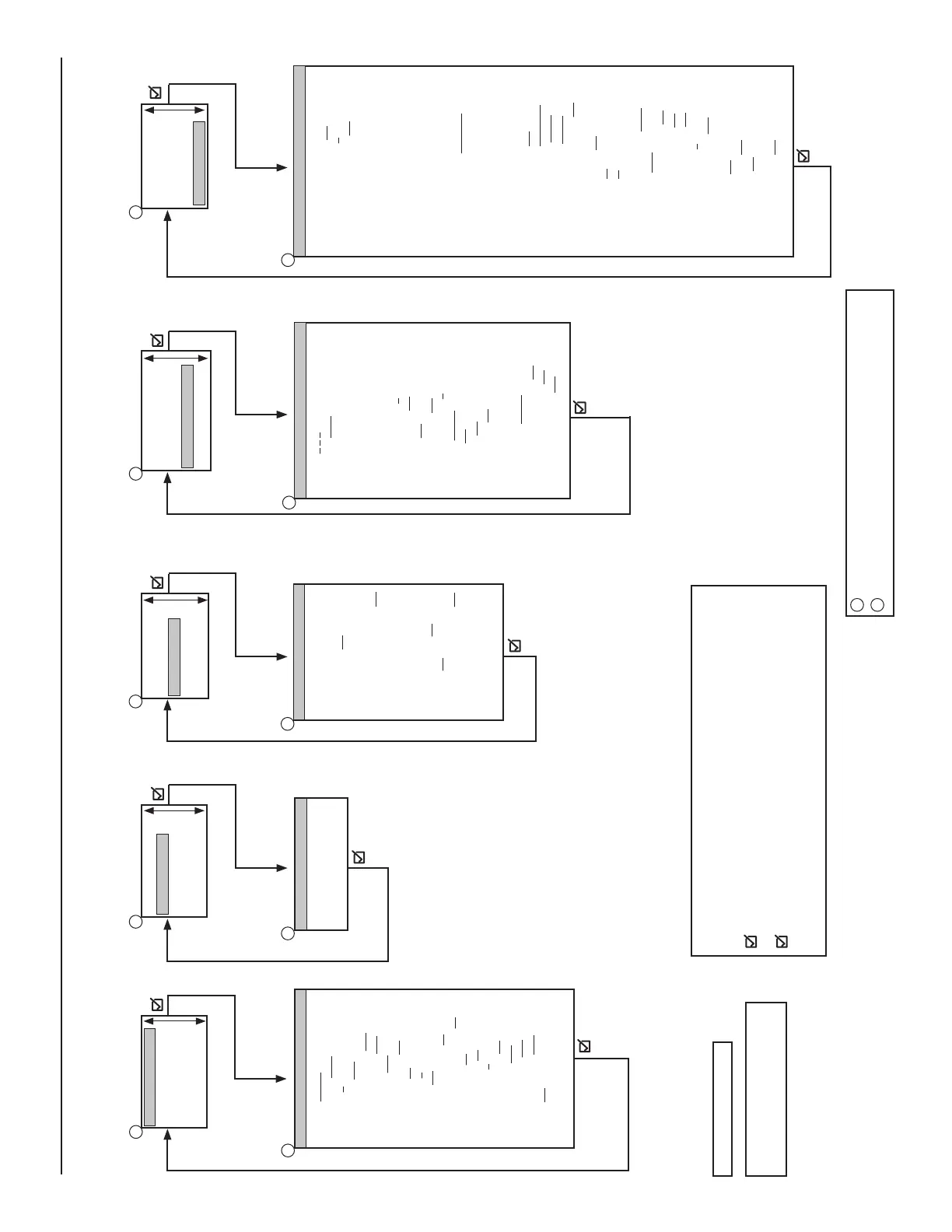

MAIN MENU
Initialization Menu Program Menu Service Menu Configuration Menu Advanced Menu
Initialization Menu Program Menu Service Menu Configuration Menu Advanced Menu
Initialization Menu Program Menu Service Menu Configuration Menu Advanced Menu
Initialization Menu
Language English tu Service Interval: 3000 Buzzer time: 5 sec Allow Advance: YES Automatic Cool Down: YES Wait for Temperature: YES Manual Override: YES Temperature balance: NO Motor On Time: 12 sec Motor Off Time: 3 sec Smart Motion: NO Hot Water Heater temp. 60 °C Temp Overshoot Protection: 00% Max, Heating Time: 60 Min Max, WaterFill Time: 10 Min Overfill Detection: 5 Units External Wait Control: Off Prewash Soap Info: YES Wash Liq. Soap Info: YES Main Water Pressure: High Step Info: NO tu Show Step Temp. Initialization Menu Exit
Program Menu
See Corresponding flowchart How to Create and Adjust a Wash Program
Service Menu
Software XXX.YYY.Z Diagnostic Program Start Cycle: NO Faults View Fault Messages Erase Fault Messages: NO View Fault Statistics Toolbox View Input States Imbalance Statist Inverter Power: Off Brake: On Reset Service Counts: NO RTC Time: XX: YY: ZZ RTC Date: AA: BB: CC Adjust Clock Service Menu Exit
p Selecting the Menu item: Press UP or DOWN. q tu Selecting list: Press LEFT or RIGHT.
Selecting a new program Sub-menu and go to the next item: ENTER. Confirming a menu item and go to the next menu item: ENTER.
-- Insert a value or Select another List element.
Attention !!! Depending the Machine Type, some items will not be displayed.
Select the Initialization, Program, Service, Configuration, or Advanced Menu. Change the Settings at the Menu items.
Configuration Menu
Password 3 2 1
Machine Type FX65 tu
Reset Defaults ? Brightness Display: 12 Inverter Menu Supply Volt: XXXX–XXXX+X tu
Load Param Total Number of Inlets: 2 tu Drain Val. 1 Inverted: NO Drain Valve 2: NO Liquid Soap Supply: NO Min. Level Start Supply: 0
Temperature: Celsius
Full Heating: 1%
Wet Cleaning: NO Ultrabal. Settings: 10 tu Erase All Wash Program Load Standard Programs Language: English Load Program 1–20? NO Load Program >20? NO Communication Address: 255
Configuration Menu Exit
Advanced Menu
Hygienic Cycle Strict Temp. Control: NO Temp. Calib. Offset: 0 Hygienic Water Level: NO Program Mode Lock Password Edit Password tu New Password Old Password No Password Program Lock Password Programs Program 1 Unlocked Edit Password New Password Old Password No Password Traceability: Enable Traceability: NO Traceability Report: Data DAQ  PC Comm. Timeout: 15 sec PC Data Time Limit: 60 sec Disable Traceability Errors: NO Weighing Weighing System: NO Main Units: kg Help Units: % Load Cell Calibration Expected Free Weight: XXXX Water Level: Units Correct Linen Absorpt: NO Automatic Level Adjust.: NO Automatic Soap Adjust.: NO Scale stabilization: 3 Calibration coefficient: 100 Data Export/Import... Data Export: NO Programs Import: NO Conf. Import: NO Special... SopaLink Comm: NO Advance Menu Exit
1.
1.
1.
1.
2.
2.
2.
2. 2.
1.
1. 2.
Initialization Menu Program Menu Service Menu Configuration Menu Advanced Menu
Initialization Menu Program Menu Service Menu Configuration Menu Advanced Menu
Keyswitch: Program
