BIO Assembly Instructions
Page 3 of 14

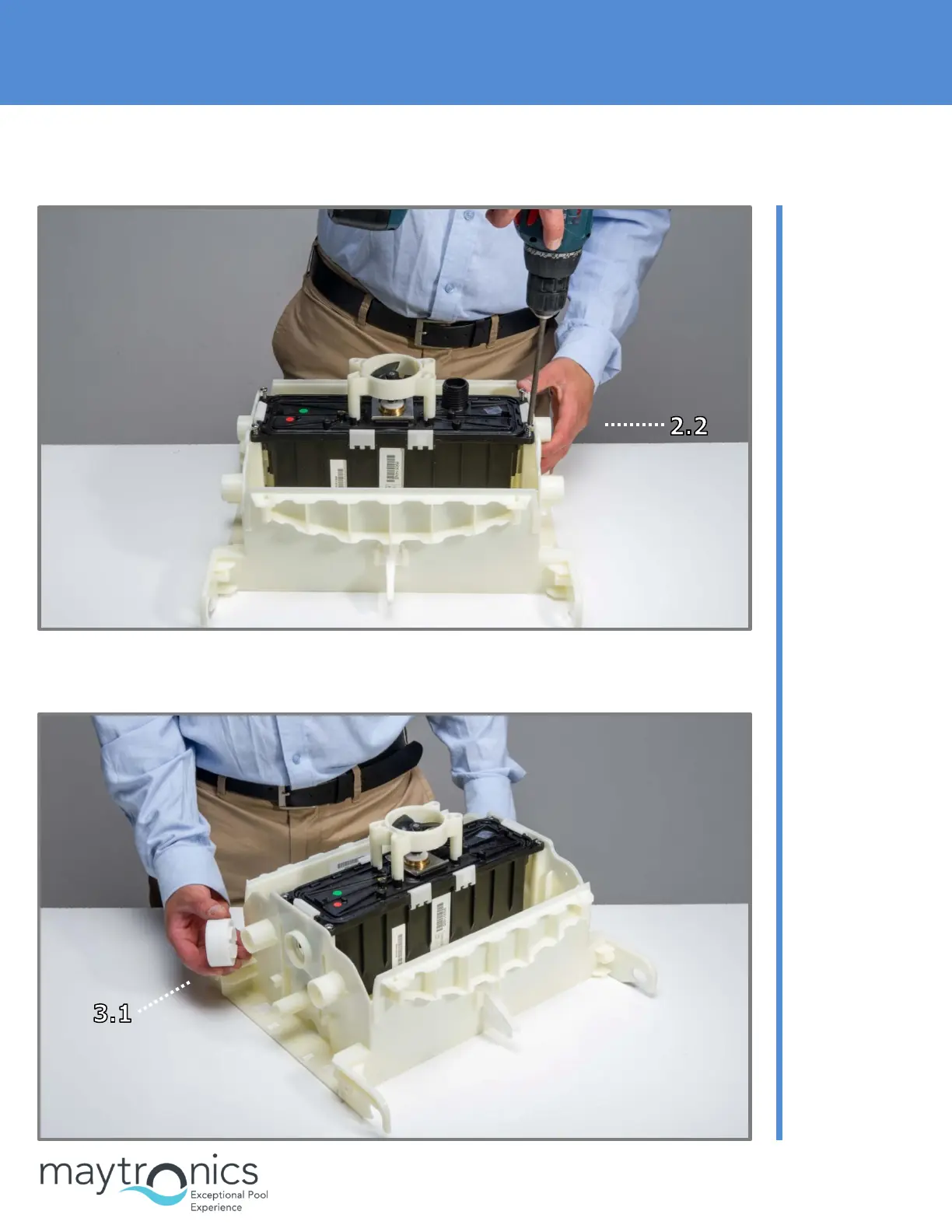

3. Assembling the Driving System
Step 2.2
Secure the motor
unit to the frame
with 4X KA50X20
screws.
Step 3.1
Place 4 guide
wheels on both
sides of the robot.
