Maytronics Dolphin Liberty - Dismantling and Cleaning the Impeller

12
Dolphin Liberty | User Instructions

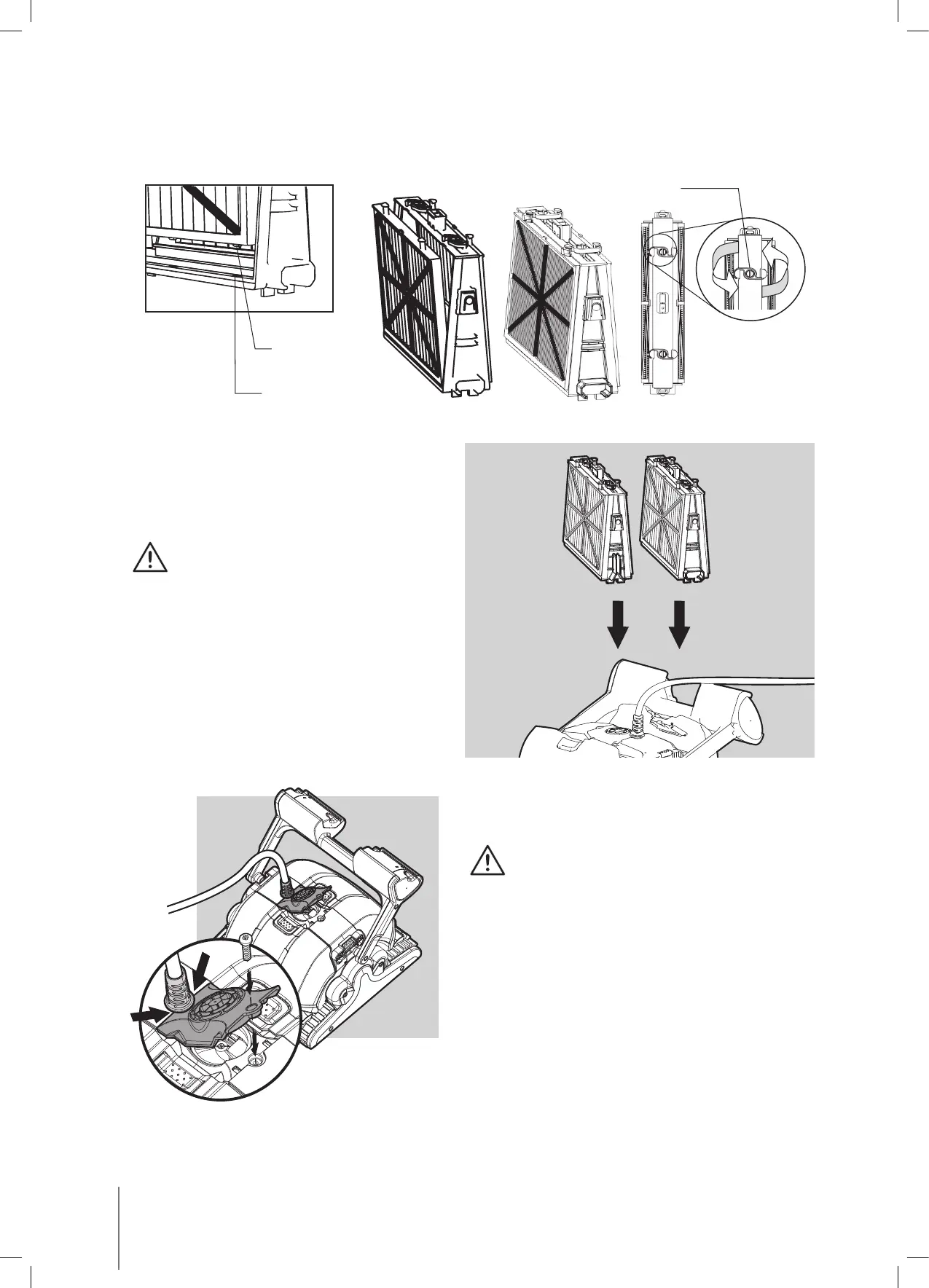

4. Reassembling the filter elements
Insert the locating tabs at the bottom of the filter element into their grooves on the base frame
then close the “S” clip.
Reinstall the base frames with filters according
to the diagram.
CAUTION
Do not force the filters into place.
8.2. Dismantling and cleaning the impeller
CAUTION
Ensure to switch the robot off before
opening the impeller, by pressing on
the on/off switch on the float.
The LEDs will blink for several seconds
before shutting down.
If you notice debris trapped in the impeller,
open the impeller and remove the debris, then
reassemble.
Locating tab
Locating tab groove
“S” clip
Octagonal
end
fitting
Grooved
end
fitting
