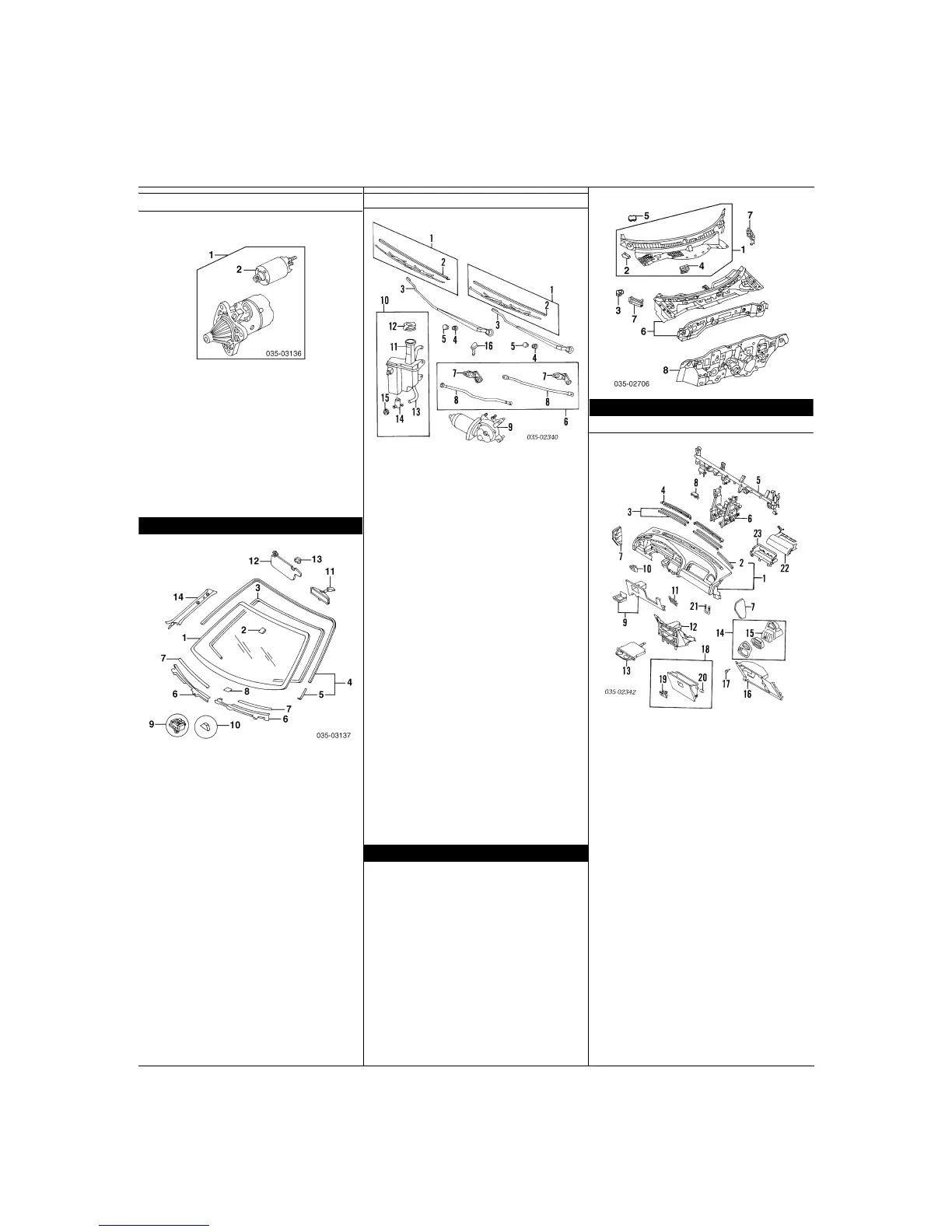

MAZDA 323/PROTEGE 1995-98
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
308
madpl1_g02_
Page 308—April 22, 2004—15:28:33—Version Manufacturer
ELECTRICAL Cont’d
STARTER Cont’d
0.85 KW B676-18-400R-00
1.8L Eng
Man Trans B593-18-400R-00
Auto Trans BPD4-18-400R-00
¶"R" Suffix Indicates Remanufactured Part. Contact Dealer for Core
Charge & Exchange Information
2
Switch, Magnetic (a)
1.5L Eng
1995-96 E356-18-X10
1997-98
0.8 KW B6BF-18-X10
0.85 KW E356-18-X10
1.8L Eng
1995-96
Man Trans FE1J-18-X10
Auto Trans BPD4-18-X10
1997-98 BPD4-18-X10
(a) Included w/Starter Assy
WINDSHIELD
1
Glass Assy, Windshield
Mazda (Tint) BE5M-63-900A
2
Base, Mirror¶
BC1C-69-240
¶Included w/Mazda Windshield Glass Assy
3
Dam, Windshield
B481-50-894
4
Moulding Assy, Windshield
BC1M-50-6AXB
5
Clip, Moulding¶
R/L B01W-50-6B8
¶Included w/Windshield Moulding Assy
6
Stopper, Windshield
RBC1M-50-G3XB
LBC1M-50-G3YD
Tape, Glass Stopper
7 Outer R BC1B-50-898
L BC1G-50-898
8 Center BC1C-50-898
Spacer, Glass
9Type A (2)
Black B455-50-891A
White EA01-50-891A
10 Type B
Hatchback (7) C001-50-897
Sedan (4) C001-50-897
11
Mirror, Rear View
95-96 HG82-69-220A
97-98 HG82-69-220A
12
Visor, Sun¶
w/Sunroof R BC1F-69-270A-08
L BC1C-69-320A-08
w/o Sunroof R BC1M-69-270A-08
L BC1D-69-320A-08
¶Order by Application
13
Holder, Visor
R/L B01A-69-261A
14
Mldg, W/S Garnish
Hatchback
Brown R/L N.A.
Gray R/L N.A.
Sedan
Brown R BC1D-68-160A-90
L BC1D-68-170A-90
Gray R BC1D-68-160A-09
L BC1D-68-170A-09
WIPER SYSTEM
1
Blade Assy, Wiper
95-96 R NC11-67-330-9U
L BJ0E-67-330-9U
97-98 R BE5J-67-330
L BE5H-67-330
2
Insert, Wiper¶
95-96 R D040-67-333-9U
L E016-67-333
97 R B16B-67-331
L B16A-67-331
98 R/L B16B-67-333
¶Included w/Wiper Blade Assy
3
Arm, Wiper
R BC1N-67-321B
L BC1M-67-321B
4
Nut, Arm
R/L 9994-00-801
5
Cover, Wiper Arm
R/L LA01-67-395C
6
Link Assy, Wiper
w/Cold Climate Spec BC1N-67-360C
w/o Cold Climate Spec BC1N-67-360C
7
Shaft, Drive¶
w/Cold Climate Spec R/L BC1N-67-363-4
w/o Cold Climate Spec R/L BC1M-67-363-4
8
Arm, Link¶
R BC1M-67-361B
L BC1M-67-362
¶Included w/Wiper Link Assy
9
Motor, Wiper
w/Cold Climate Spec 95 BC5D-67-340
96 BC5D-67-340
97-98 BG2L-67-340A
w/o Cold Climate Spec 95 BC5D-67-340
96 BC5D-67-340
97 BG1N-67-340
98 BG1N-67-340A
10
Tank Assy, Washer
USA BC1M-67-480A
Canada
w/Level Indicator N.A.
w/o Level Indicator N.A.
Switch, Level¶
Canada N.A.
11
Tank, Washer¶
USA B01C-67-481
Canada
w/Level Indicator N.A.
w/o Level Indicator N.A.
12
Cap, Washer Tank¶
B455-67-483
13
Hose, Tank¶
T003-67-501A
14
Pump, Washer¶
S084-76-672
15
Grommet, Pump¶
S084-76-677
¶Included w/Washer Tank Assy
16
Nozzle, Washer
R BC1M-67-510
L BC1N-67-510
COWL & DASH
Illustration Located in Next Column
1
Grille Assy, Cowl
BC1M-50-790D
2
Gasket, Grille¶
B01W-50-795
Grommet
3 Outer R/L FD02-50-798
4 Inner (5)¶ NA01-51-789
¶Included w/Cowl Grille Assy
5
Cap
R/L E016-50-796
6
Panel, Dash Upper
BC1D-53-500E
7
Gusset, Cowl Side
R BC1D-56-521
L BC1D-56-531
8
Panel, Dash Lower
95-96 BC1D-53-400A
97-98 BC1D-53-400A
INSTRUMENT PANEL
1995-96
1
Panel Assy, Instrument
Hatchback
Brown N.A.
Gray N.A.
Sedan
Brown BC1D-60-350D-90
Gray BC1D-60-350D-09
2
Garnish, Inst Pnl¶
R/L B01J-60-724
¶Included w/Instrument Panel Assy
3
Garnish, Inst Panel
R/L B01A-60-725
4
Grille, Defrost
Brown R BC1D-60-780-91
L BC1D-60-790-91
Gray R BC1D-60-780-09
L BC1D-60-790-09
5
Member, Inst Panel
USA BC1D-60-420E
Canada
w/Air Bag
Hatchback N.A.
Sedan N.A.
w/o Air Bag N.A.
6
Member, Ctr Panel
BC1D-60-450A
7
End, Instrument Panel
Brown R BC1D-64-950B-90
L BC1D-64-960B-90
Gray R BC1D-64-950B-09
L BC1D-64-960B-09
8
Cover, Hole
Brown BC1D-55-574-91
Gray BC1D-55-574A-09
9
Panel, Lower
Brown BC1D-64-280C-90
Gray BC1D-64-280C-09
10
Ext, Lower Panel
Brown BC5E-64-255-90
Gray BC5E-64-255-09
11
Cover, Lower
Brown BC5E-64-255-90
Gray BC5E-64-255-09
12
Panel, Center
Brown BC1D-64-270A-90
Gray BC1D-64-270A-09
13
Holder, Cup
BC1D-64-39XC
To Next Page
