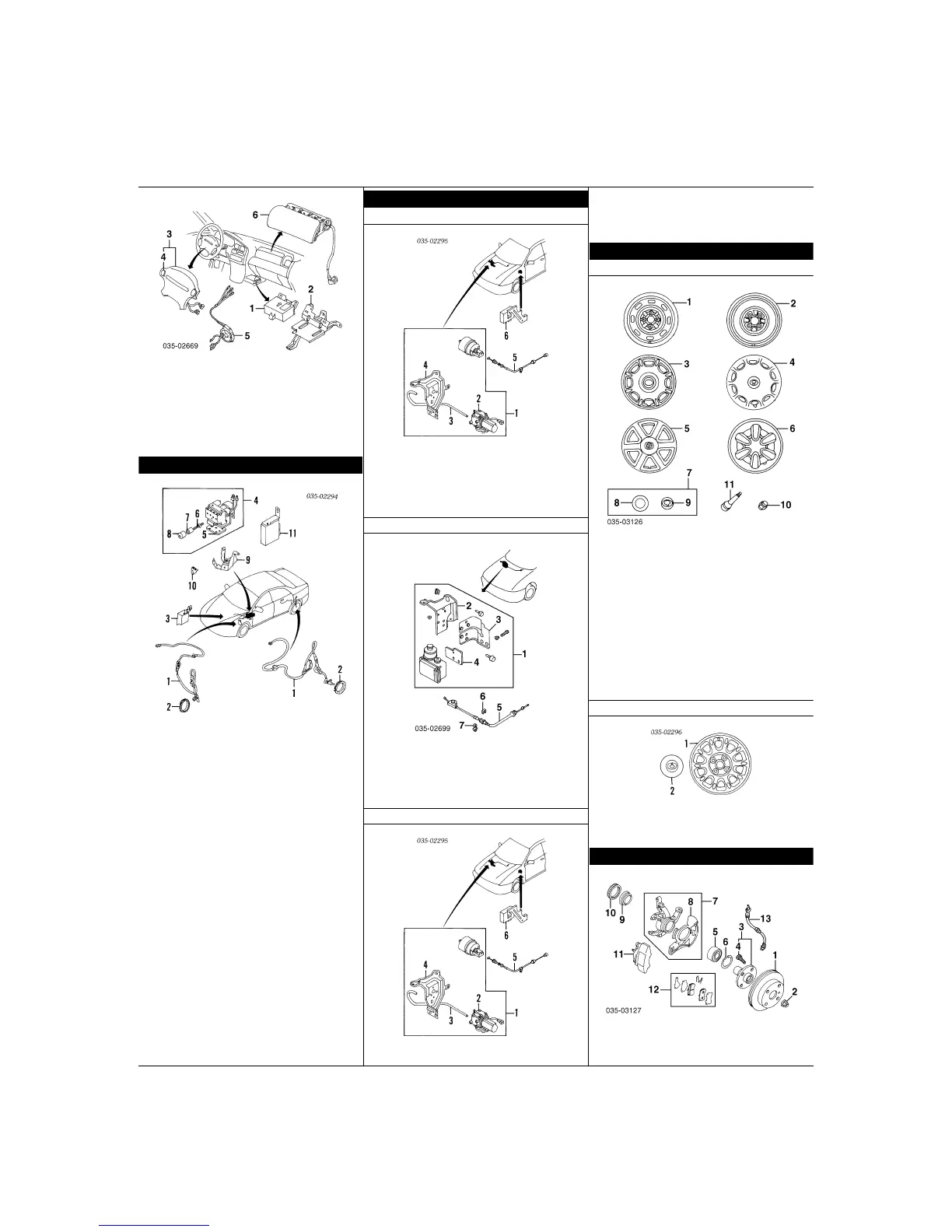

Mazda 323 Protege - Abs;Brakes; Cruise Control System; Front Suspension & Wheel

MAZDA 323/PROTEGE 1995-98
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
303
madpl1_g02_
Page 303—April 22, 2004—15:28:26—Version Manufacturer
w/Cruise Control BC5A-66-CS0
w/o Cruise Control BC5E-66-CS0
¶Included w/Combination Switch Assy-listed in Steering
Wheel/Column Section
6
Module, Passenger Air Bag
1995-96
Brown BC1M-57-K7X-90
Gray BC1M-57-K7X-09
1997-98
Brown B21M-57-K70H-90
Gray B21M-57-K70H-09
ABS/BRAKES
1 Sensor, ABS
Front 95 R BC1M-43-70XB
L BC1M-43-73XB
96-97 R BC4C-43-70XB
L BC4C-43-73XB
98 R BC4C-43-70XB
L BC4C-43-73XB
Rear 95 R BC1M-43-71YC
L BC1M-43-72YC
96 R BC4C-43-71YA
L BC4C-43-72YA
97-98 R B21J-43-71Y
L B21J-43-72Y
2
Rotor, ABS Sensor
Front-See Front Drive Axle Section
Rear-See Rear Suspension Section
3
Relay, ABS
1995-96 B02B-67-7K0C
1997-98
Front H430-67-730A
Rear H430-67-720
4
Actuator Assy, ABS 95-96 B01F-43-7A0
97-98 BC4C-43-7A0B
5
Cover, Actuator¶
1995-96 B603-43-7A4
1997-98-Serviced w/ABS Actuator Assy
6
Stud, Mount¶ 95-96 GA2G-43-7A7A
97-98 G06T-43-7A7
7
Mount, Rubber¶ 95-96 GA2G-43-7A6
97-98 G06T-43-7A6
8
Washer¶
1995-96 GA2G-43-7A8A
1997-98-Serviced w/ABS Actuator Assy
¶Included w/ABS Actuator Assy
9
Brkt, Actuator 95-96 B603-43-310F
97-98 B16C-43-310B
10
Brace, Actuator E020-41-35X
11
Computer, ABS 95-96 BC1D-67-650C
97-98 BG1P-67-650A
CRUISE CONTROL SYSTEM
1995-96
1 Actuator Assy BC1F-66-310A
2
Actuator¶ BC1F-66-314
3
Pipe, Vacuum¶ BC1F-66-361
4
Bracket, Actuator¶ BC1F-66-3A1A
¶Included w/Actuator Assy
5
Cable, Cruise BC1F-66-31Y
6
Computer, Cruise
1.5L Eng BC1C-66-320D
1.8L Eng BC1F-66-320G
1997-98 1.5L ENG
1 Actuator Assy BG1L-66-310C
2
Bracket, Actuator Side¶ BG1P-66-3A1B
3
Bracket, Actuator Rear¶ BG1L-66-3A1B
4
Grommet, Actuator¶ KB31-66-3A4
¶Included w/Actuator Assy
5
Cable, Cruise BG1P-66-31YA
6
Clip, Cable Upper BG1P-66-3A7A
7
Clip, Cable Lower D061-61-479
1997-98 1.8L ENG
1 Actuator Assy BC1F-66-310A
2
Actuator¶ BC1F-66-314
3
Pipe, Vacuum¶ BC1F-66-361
4
Bracket, Actuator¶ BC1F-66-3A1A
¶Included w/Actuator Assy
5
Cable, Cruise BC1F-66-31Y
6
Computer, Cruise BC1F-66-320G
WHEEL
STEEL WHEEL
1 Wheel
13x5J"
Black 9965-78-5030
Silver 9965-77-5030
14x5-1/2JJ" 9965-D8-5540
2
Wheel, Spare 9965-18-4040
Cover, Wheel
3 Type 1 95-97 BC1D-37-170B
98 B21H-37-170
4 Type 2 95-96 BC1F-37-170
97-98 B21M-37-170B
5 Type 3 98 B21J-37-170A
6 Type 4 98 BG1N-37-170
7
Cap Assy, Center 95-97 NA53-37-190
98 B21V-37-190
8
Cap, Center¶ B455-37-191
9
Emblem, Cap¶ 95-97 GA7C-37-192
98 G14H-37-192
¶Included w/Center Cap Assy
10
Nut, Lug 0603-26-161A
11
Stem, Valve 9963-60-4130
ALUMINUM WHEEL
1 Wheel 9965-F6-5540
2
Cap, Center 95-97 B01C-37-191A
98 B21S-37-190
Nut, Lug B002-37-160A
Stem, Valve 9963-60-4130
FRONT SUSPENSION
1 Rotor, Brake
1.5L Eng R/L B26Y-33-25XA
1.8L Eng R/L BB7E-33-25XD
2
Nut R/L GJ21-33-042B
