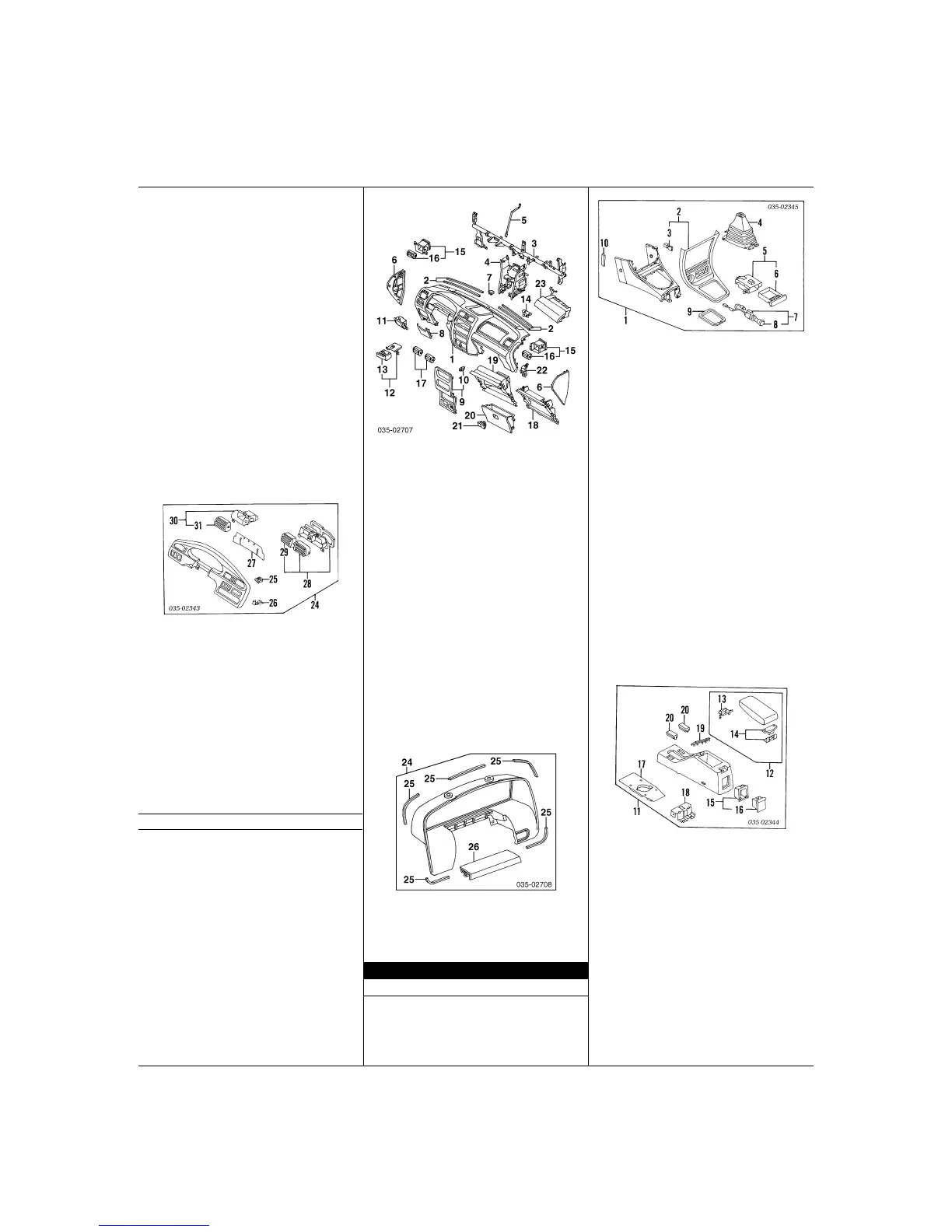

MAZDA 323/PROTEGE 1995-98
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
309
madpl1_g02_
Page 309—April 22, 2004—15:28:35—Version Manufacturer
14
Ventilator Assy, Passenger
Brown BC1D-64-720-90
Gray BC1D-64-720-09
15
Louver, Ventilator (a)
BC1D-64-71XA
(a) Included w/Passenger Ventilator Assy
16
Panel Assy, Glove Box
w/Air Bag
Brown BC1D-64-260B-90
Gray BC1D-64-260B-09
w/o Air Bag
1995
Brown BC5E-64-260A-90
Gray BC5E-64-260B-09
1996
Brown BC5E-64-260B-09
Gray BC5E-64-260B-09
17
Cushion, Rubber (a) (2)
B092-64-046
(a) Included w/Glove Box Panel Assy
18
Glove Box Assy
w/Air Bag
Brown BC1D-64-030E-90
Gray BC1D-64-030E-09
w/o Air Bag
Brown
Gray B01A-64-030C-09
19
Lock, Glove Box¶
w/Air Bag
Brown BC5E-64-090E-90
Gray BC5E-64-090E-09
w/o Air Bag
Brown B01B-64-090C-91
Gray B01B-64-090C-09
20
Stopper, Rubber¶
BC1D-64-073
¶Included w/Glove Box Assy
21
Striker, Glove Box
w/Air Bag BC1D-64-101
w/o Air Bag B01B-64-101
22
Module, Pass Air Bag-See Air Bag System Section
23
Case, Air Bag
BC1D-60-A61B
24
Panel Assy, Instrument Finish
Hatchback N.A.
Sedan 95 BC1D-55-420E
96 BE5M-55-420A
Clip, Finish Panel (c)
25 Upper (2) B092-55-257
26 Lower (9) BC1D-55-257
27
Plate, Cover (c)
Hatchback N.A.
Sedan BC1D-55-182
28
Ventilator Assy, Center (c)
BC1D-64-920A
29
Louver, Vent (c) (d)
R BC1D-64-91XA
L S09A-64-91X
(d) Included w/Center Ventilator Assy
30
Ventilator Assy, Driver (c)
Hatchback N.A.
Sedan BC1D-64-820
31
Louver, Vent (c) (e)
Hatchback N.A.
Sedan BC1D-64-81XA
(c) Included w/Instrument Finish Panel Assy
Included w/Driver Ventilator Assy
Radio¶
BC1B-79-020
¶Order by Application
1997-98
Illustration Located in Next Column
1
Panel, Instrument
w/Air Bag
Brown BG1N-60-401C-90
Gray BG1N-60-401C-09
w/o Air Bag
Brown BG1J-60-401A-90
Gray 5G1J-60-401A-09
2
Garnish, Inst Panel (2/Side)
R/L B01A-60-725
3
Member, Inst Panel
w/Air Bag BG1N-60-420D
w/o Air Bag N.A.
4
Member, Ctr Panel
BG1N-60-450A
5
Brkt, Inst Panel
BG1N-60-642
6
End, Inst Panel
Brown R B21H-64-950A-90
L B21H-64-960A-90
Gray R B21H-64-950A-09
L B21H-64-960A-09
7
Cover, Hole
Brown B21H-55-574-90
Gray B21H-55-574-09
8
Panel, Lower
Brown B21H-64-260-90
Gray B21H-64-260-09
9
Panel Assy, Center
BG1N-55-210B
10
Spring, Upper¶ (6)
J001-64-345
¶Included w/Center Panel Assy
11
Pocket, Inst Panel
BG1N-64-181A
12
Ashtray Assy
B21H-64-610A
13
Ashtray¶
B21H-64-630
¶Included w/Ashtray Assy
14
Bracket, Meter
B21H-60-641
15
Ventilator Assy, Side
Black R BG1N-64-720A-00
L BG1N-64-820A-00
Brown R BG1N-64-720A-90
L BG1N-64-820A-90
16
Louver, Ventilator¶
Black R/L BG1N-64-91X-00
Brown R/L BG1N-64-91X-90
¶Included w/Side Ventilator Assy
17
Louver, Center
Black R/L BG1N-64-91X-00
Brown R/L BG1N-64-91X-90
Panel, Glove Box
18 w/Air Bag
Brown BG1N-64-260D-90
Gray BG1N-64-260D-09
19 w/o Air Bag
Brown N.A.
Gray N.A.
20
Glove Box
Brown BG1N-64-030-90
Gray BG1N-64-030-09
21
Latch, Glove Box
Brown BC5E-64-090E-90
Gray BC5E-64-090E-09
22
Striker, Glove Box
BG1N-64-10XA
23
Module, Air Bag-See Air Bag System Section
24
Panel Assy, Instrument Finish
BG1N-55-420
25
Seal, Rubber¶ (5)
B21H-55-181
26
Cover, Panel¶
BG1N-55-423
¶Included w/Instrument Finish Panel Assy
Stereo
w/Cassette LB83-79-9C0
w/o Cassette GD7C-66-9R0
CENTER CONSOLE
1995-96
Illustration Located in Next Column
1
Console Assy, Front
Hatchback
Man Trans
Brown N.A.
Gray N.A.
Auto Trans
Brown N.A.
Gray N.A.
Sedan
Man Trans
1995
Brown BC4D-64-320G-90
Gray BC4D-64-320H-09
1996
Brown BE5R-64-320C-92
Gray BE5R-64-320C-09
Auto Trans
1995
Brown BC4C-64-320F-90
Gray BC4C-64-320E-09
1996
Brown BE5P-64-320C-92
Gray BE5P-64-320C-09
2
Panel Assy, Center¶
Hatchback
Brown N.A.
Gray N.A.
Sedan
Black BC1D-55-21XB-00
Gray BC1D-55-21XB-09
3
Clip, Ctr Panel¶ (a) (4)
BC1D-55-257
(a) Included w/Center Panel Assy
4
Boot, Shift¶
95 BC1D-64-330
96 BC1D-64-330C
5
Ashtray Assy¶
BC1D-64-610A
6
Ashtray¶ (b)
BC1D-64-630
(b) Included w/Ashtray Assy
7
Lighter Assy¶
95 BC1B-66-250
96 G13H-66-250
8
Element, Lighter¶ (c)
C001-66-252
(c) Included w/Lighter Assy
9
Filler, Shift Opening¶
B01A-64-349A
10
Filler, Front Console¶
B01B-64-349
¶Included w/Front Console Assy
11
Console Assy, Rear
DX, GS, LS Model
1995
Brown BC1D-64-420A-90
Gray BC1D-64-420A-09
1996
Brown B16A-64-420A-90
Gray B16A-64-420A-09
LX, ES Model
1995
Brown BC1G-64-420D-90
Gray BC1G-64-420D-09
1996
Brown B16M-64-420-90
Gray B16M-64-420-09
12
Lid, Rear Console¶
LX, ES Model
Brown BC1G-64-450B-90
Gray BC1G-64-450B-09
13
Lock, Lid¶ (a)
BC1G-64-45YA
14
Hinge, Lid¶ (a)
BC1G-64-45XB
(a) Included w/Rear Console Lid Assy
15
Ashtray Assy¶
BC1D-64-660
16
Ashtray¶ (b)
BC1D-64-680
(b) Included w/Ashtray Assy
Cover, Hole¶
Brown B16A-64-424-90
Gray B16A-64-424-09
To Next Page
