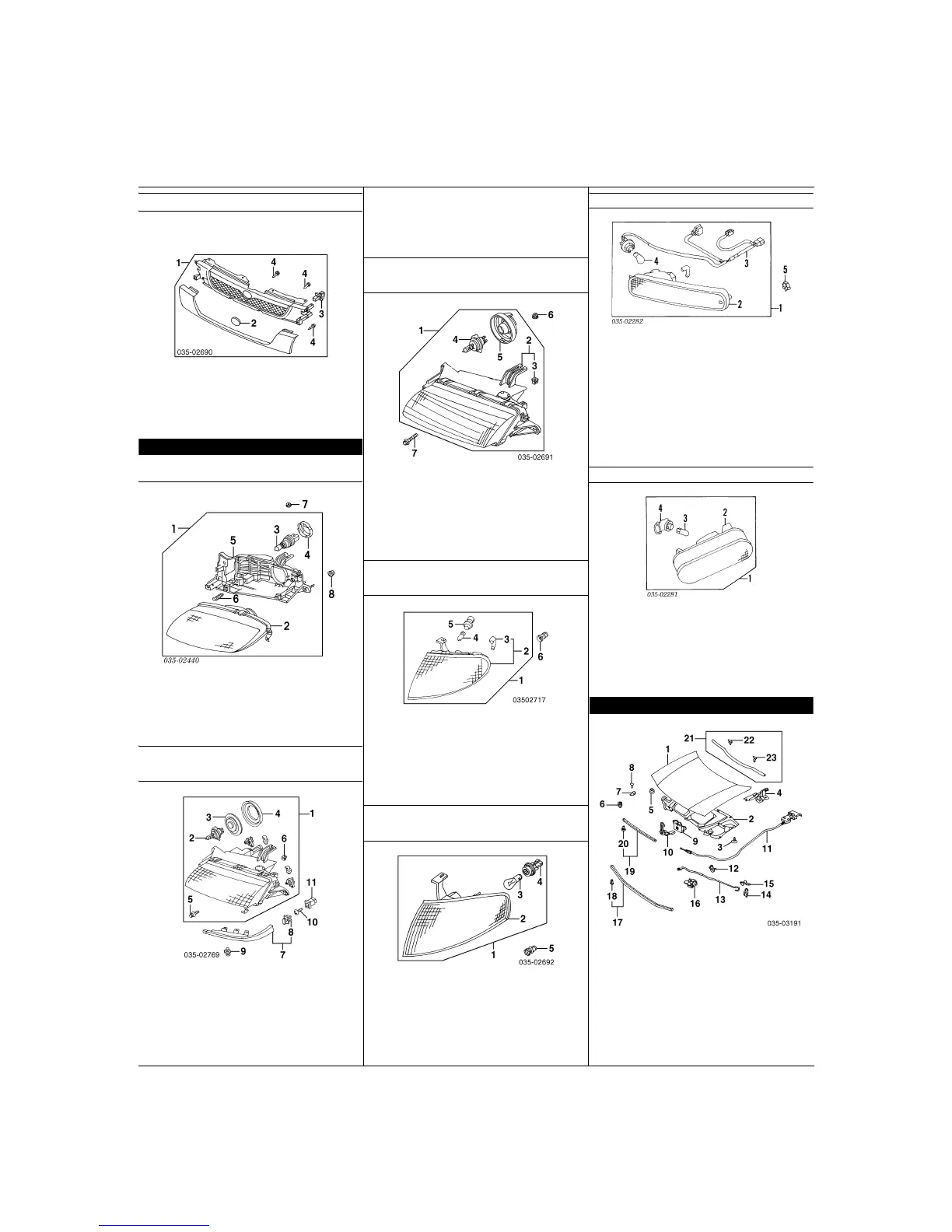

GRILLE Cont’d
SEDAN
1997-98 Cont’d
Green; 11R, 29 Sparkle Green; 12H, 14 Oriental Red;
12M, 25 Sandalwood; 12R Aquarius Blue; 3L Silverstone;
4F Champagne Silver; 45 Vivid Blue
2
Emblem, Grille (a)
97 B21H-51-731
98 GE4T-51-731
3
Clip, Grille (a) (4)
B21H-50-714
4
Screw, Grille (a) (7)
BC1M-50-713
(a) Included w/Grille Assy
FRONT LAMPS
HEADLAMP
HATCHBACK
1
Headlamp Assy
R/L N.A.
2
Lens & Body¶
R/L N.A.
3
Bulb¶
R/L N.A.
4
Holder, Bulb¶
R/L N.A.
5
Housing¶
R/L N.A.
6
Spring, Adjust¶
R/L N.A.
¶Included w/Headlamp Assy
7
Nut, Lamp
R/L N.A.
8
Fastener
R/L N.A.
HEADLAMP
SEDAN
1995-96
1
Headlamp Assy
R BC1M-51-030A
L BC1M-51-040A
2
Bulb, Headlamp¶
R/L 0000-11-9003
3
Cover, Bulb¶
R/L W323-51-0A1
4
Cap, Bulb Lock¶
R/L G00A-51-0AZ
5
Screw, Lamp Adjust¶
R/L 9GG6-00-616B
6
Clip, Retainer¶
R/L 9991-00-501
¶Included w/Headlamp Assy
7
Moulding Assy, Headlamp (a)
R BC1M-50-7J0-PT
LBC1M-50-7K0-PT
(a) White listed, Order by Application
J4 Passion Rose; PT Chaste White; SU Classic Red;
VQ Noble Green; 29 Sparkle Green; 69 Solemn Blue;
4F Champagne Silver; 6Z Thunder Gray
8
Fastener, Moulding (b)
R/L BC1M-50-715
(b) Included w/Headlamp Moulding Assy
9
Clip, Moulding (3/Side)
R/L B092-51-833
10
Screw
R/L 9YA7-20-401
11
Grommet, Screw
R/L BC1M-50-718
HEADLAMP
SEDAN
1997-98
1
Headlamp Assy
R BG1N-51-030D
L BG1N-51-040D
2
Lens & Body Assy¶
RBG1N-51-0K0D
L BG1N-51-0L0D
3
Grommet, Lamp¶ (a)
R/L 9991-00-501
(a) Included w/Lens & Body Assy
4
Bulb, Headlamp¶
R/L 0000-11-9003
5
Cover, Bulb¶
R/L B092-51-038
¶Included w/Headlamp Assy
6
Nut, Lamp
R/L 9YB1-60-602
7
Screw, Adjust (3/Side)
R/L 9GG6-00-620B
PARK LAMP
SEDAN
1995-96
1
Lamp Assy, Park
R BC1M-51-090
L BC1M-51-100
2
Lens Assy¶
R BC1M-51-09Y
L BC1M-51-10Y
3
Tube, Lamp¶ (a)
R/L B481-51-069
(a) Included w/Lens Assy
4
Bulb¶
R/L 0000-11-0194
5
Socket¶
R/L NA01-51-5E2
¶Included w/Park Lamp Assy
6
Holder, Pivot
95 R/L G219-51-081A
96 R/L G219-51-081A
PARK LAMP
SEDAN
1997-98
1
Lamp Assy, Park
R BG1N-51-060B
L BG1N-51-070B
2
Lens & Housing¶
R BG1N-51-06XB
L BG1N-51-07XB
3
Bulb¶
R/L 0000-11-1157
4
Socket¶
R/L BR70-51-064
¶Included w/Park Lamp Assy
5
Holder, Pivot
R/L G219-51-081A
SIGNAL LAMP
1
Lamp Assy, Signal
Hatchback R/L N.A.
Sedan R BC1M-51-350A
L BC1M-51-360A
2
Lens & Body¶
Hatchback R/L N.A.
Sedan R B01W-51-35XA
L B01W-51-36XA
3
Socket & Wire¶
Hatchback R/L N.A.
Sedan R BC1M-51-354
L BC1M-51-364
4
Bulb¶
Hatchback R/L N.A.
Sedan R/L 0000-11-1156
¶Included w/Signal Lamp Assy
5
Clip, Harness
R/L UB59-67-121
SIDE MARKER LAMP
1
Lamp Assy, Side Marker
Hatchback R/L N.A.
Sedan R BC1M-51-5E0A
LBC1M-51-5F0A
2
Lens & Body¶
Hatchback R/L N.A.
Sedan R BC1M-51-5E1
LBC1M-51-5F1
3
Bulb¶
R/L 0000-11-0194
4
Socket¶
R/L NA01-51-5E2
¶Included w/Side Marker Lamp Assy
HOOD
1
Panel, Hood
Hatchback N.A.
Sedan BC1M-52-310P
2
Insulator, Hood
1.8L Eng
Hatchback N.A.
Sedan BC1M-56-681E
3
Clip, Insulator (16)
GA2A-56-694
4
Hinge, Hood
R BC1D-52-410A
L BC1D-52-420A
5
Stopper, Rubber
Hatchback R/L N.A.
Sedan R D001-62-873B
L H043-56-786
6
Cushion, Front
R/L BC1M-56-786
