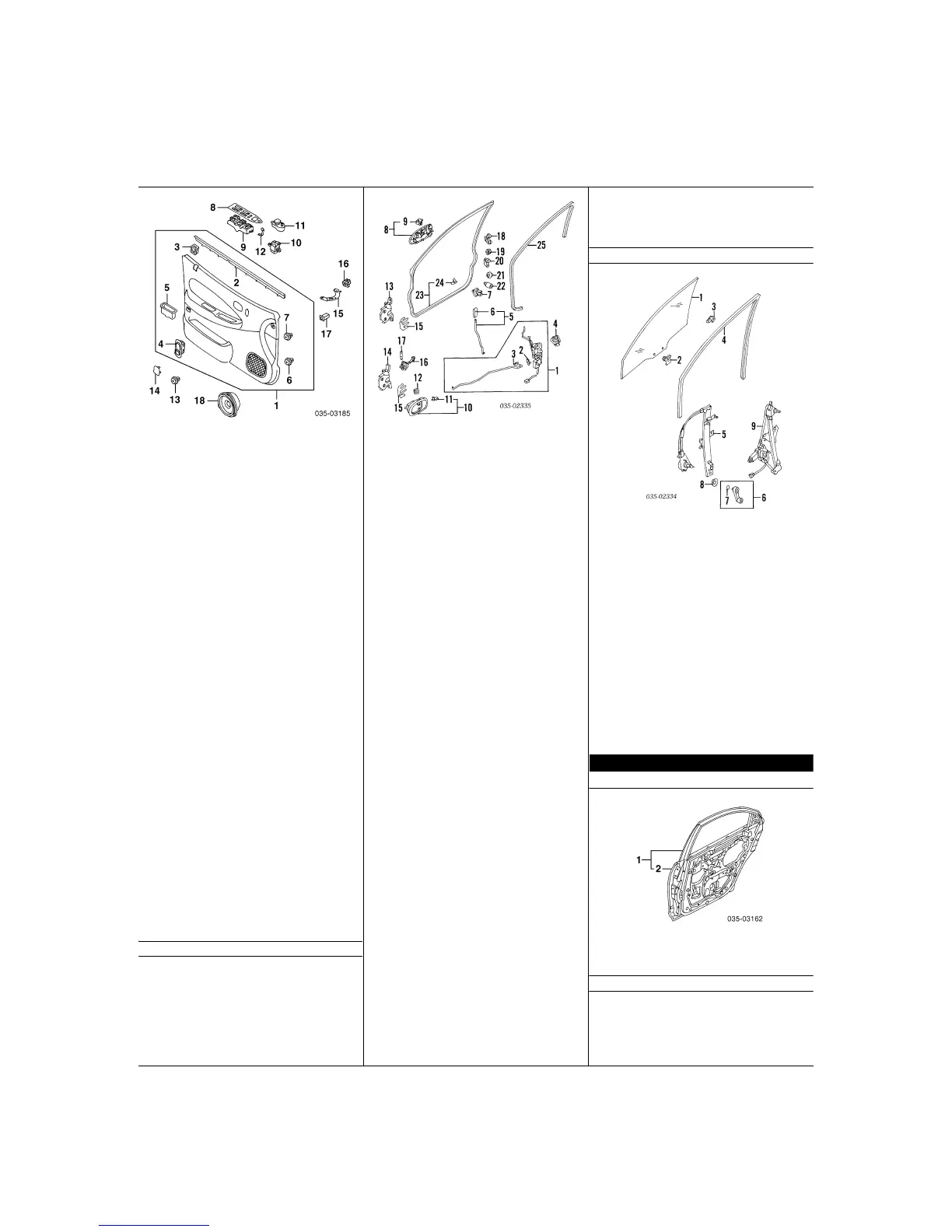

MAZDA 323/PROTEGE 1995-98
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
313
madpl1_g02_
Page 313—April 22, 2004—15:28:41—Version Manufacturer
L BG1S-68-450E-90
Gray
To 11-97 R BG1S-68-420E-09
L BG1S-68-450E-09
From 11-97 R BG1S-68-420E-09
L BG1S-68-450E-09
LX Model
Brown
To 11-97 R BG1P-68-420F-90
L BG1P-68-450F-90
From 11-97 R BG1P-68-420F-90
L BG1P-68-450F-90
Gray
To 11-97 R BG1P-68-420F-09
L BG1P-68-450F-09
From 11-97 R BG1P-68-420F-09
L BG1P-68-450F-09
ES Model
Brown
To 11-97 R BG1N-68-420F-90
L BG1N-68-450F-90
From 11-97 R BG1N-68-420F-90
L BG1N-68-450F-90
Gray
To 11-97 R BG1N-68-420F-09
L BG1N-68-450F-09
From 11-97 R BG1N-68-420F-09
L BG1N-68-450F-09
2
W/Strip, Inner¶
R BC1D-58-821
L BC1D-59-821
3
Vessel, Inner Lock¶
Brown R/L B21H-68-421-90
Gray R/L B21H-68-421-09
4
Switch, Power Lock¶
Brown L BC1D-66-660-90
Gray L BC1D-66-660-09
5
Handle, Pull¶
R/L B461-68-D71-09
Fastener, Trim Lower¶
6 Type A (2/Side) R/L GA2A-68-AB1A
7 Type B (5/Side) R/L G350-68-AB1
8
Panel, Switch¶
Man Windows
Black R/L B21H-68-4L1B-00
Brown R/L B21H-68-4L1B-90
Pwr Windows
Black R LB82-68-4L1-00
L LB82-68-4L6C-00
Brown R LB82-68-4L1-90
L LB82-68-4L6C-90
Switch, Pwr Window¶
9 Right HG30-66-370
10 Left BC1D-66-350A
11
Switch, Remote Mirror¶
L B01A-66-600
12
Bracket, Trim¶
Man Windows R/L BC1D-68-414
Pwr Windows-Serviced w/Switch Panel Assy
¶Included w/Trim Panel Assy
13
Fastener, Trim Upper
Beige R/L B21H-68-AB1
Gray R/L B21H-68-AB1-09
14
Cap, Door Trim
R/L B21H-68-406-09
15
Bracket, Pull Handle
R/L B21H-68-425C
Grommet
16 Type A R/L B316-69-361
17 Type B R/L B110-68-429
18
Speaker, Radio
R/L 0000-81-C01
HARDWARE
Illustration Located in Next Column
1
Latch Assy
Manual
Hatchback R/L N.A.
Sedan R BC1D-58-310D
L BC1D-59-310D
Power
Hatchback R/L N.A.
Sedan R BC1E-58-310F
L BC1E-59-310F
2
Clip, Latch¶
R G030-58-315
L G030-59-315
3
Clip, Rod¶
R/L 9927-80-307
¶Included w/Latch Assy
4
Striker
R/L BC1D-58-361B
5
Knob Assy, Door Lock
Brown R BC1D-58-390A-90
L BC1D-59-390A-90
Gray R BC1D-58-390A-09
L BC1D-59-390A-09
6
Knob, Door Lock¶
Brown R/L GA7B-58-316-90
Gray R/L GA7B-58-316-09
¶Included w/Door Lock Knob Assy
7
Holder, Rod (2/Side)
R/L B001-58-309A
Cylinder & Key
Man Lock 95 R B01A-76-210C
L B01A-76-220C
96 R B21H-76-210E
L B21H-76-220E
97 R B21H-76-210
L B21H-76-220
98 R B21H-76-210E
L B21H-76-220E
Pwr Locks 95 R BC1D-76-210B
L BC1D-76-220B
96 R BG9G-76-210D
L BG9G-76-220D
97 R BG9G-76-210
L BG9G-76-220
98 R BG9G-76-210D
L BG9G-76-220D
8
Handle Assy, Outside
Black R BC1D-58-410A
L BC1D-59-410
Body Color¶ R BC1E-58-410F-6Z
L BC1F-59-410F-6Z
¶Thunder Gray listed, Order by Application
J4 Passion Rose; PT Chaste White; SU Classic Red;
VQ Noble Green; 29 Sparkle Green; 61 Solemn Blue;
4F Champagne Silver; 6Z Thunder Gray
9
Joint (a)
R/L B455-58-411
(a) Included w/Outside Handle Assy
10
Handle Assy, Inside
Hatchback
Brown R/L N.A.
Gray R/L N.A.
Sedan
Brown R GA2K-58-330B-90
L GA2K-59-330B-90
Gray R GA2K-58-330B-09
L GA2K-59-330B-09
11
Clip, Inside Handle (a)
Hatchback R/L N.A.
Sedan R B001-59-335
L FB01-58-335
(a) Included w/Inside Handle Assy
Cover, Handle
Hatchback R EA01-58-303-09
L EA01-59-303-09
12
Grommet
R/L GA2K-58-333A
13
Hinge, Upper
R DX50-59-240
L DX50-58-240
14
Hinge, Lower
R BC1D-58-240
L BC1D-59-240
15
Shim, Hinge (2/Side)
R/L HG30-58-201
16
Check, Door
R/L BC1D-58-270A
17
Pin, Door Check
R/L BC1D-58-265
18
Clip, Door Lock
R/L B038-58-866
19
Grommet
R/L BF67-51-261
20
Clip, Rod
R/L B038-58-866
21
Cover, Hole
R/L B499-62-868
22
Cushion, Rubber
R/L G067-58-873
23
Weatherstrip Assy
Hatchback R/L N.A.
Sedan R BC1D-58-760E
L BC1D-59-760E
24
Fastener¶
Upper R/L BC1D-58-763
Lower (19/Side) R/L BC1D-58-763
¶Included w/Weatherstrip Assy
25
Welt, Seaming
Hatchback R/L N.A.
Sedan R/L BC1D-68-911-2
GLASS & PARTS
1
Glass, Front Door
Mazda
Hatchback R/L N.A.
Sedan 95-96 R BC1D-58-511
L B01W-59-511
97-98 R B16A-58-511A
L B16A-59-511A
2
Grommet (2/Side)
R/L S084-58-502
3
Adjuster, Glass
R/L BC1D-58-606
4
Channel, Glass
Hatchback R/L N.A.
Sedan R BC1D-58-60X
L BC1D-59-60X
5
Regulator, Manual
Hatchback R/L N.A.
Sedan R BC1D-58-560B
L BC1D-59-560B
6
Handle Assy, Regulator
Brown R/L S084-58-580A-90
Gray R/L S084-58-580A-09
7
Ring, Snap (a)
R/L B001-58-585
(a) Included w/Regulator Handle Assy
8
Escutcheon, Handle
Brown R/L B001-58-582A-90
Gray R/L B001-58-582A-09
9
Regulator, Power
Hatchback R/L N.A.
Sedan R D062-58-566
L BC1E-59-560B
Motor, Regulator-Serviced w/Power Regulator
REAR DOOR
SHEET METAL
1
Shell Assy, Door
R BC1D-72-020R
L BC1D-73-020R
2
Panel, Door Repair¶
R BC1D-72-031B
L BC1D-73-031B
¶Included w/Door Shell Assy
EXTERIOR TRIM
Illustration Located in Next Column
1
Moulding, Belt
R BC1M-50-660B
