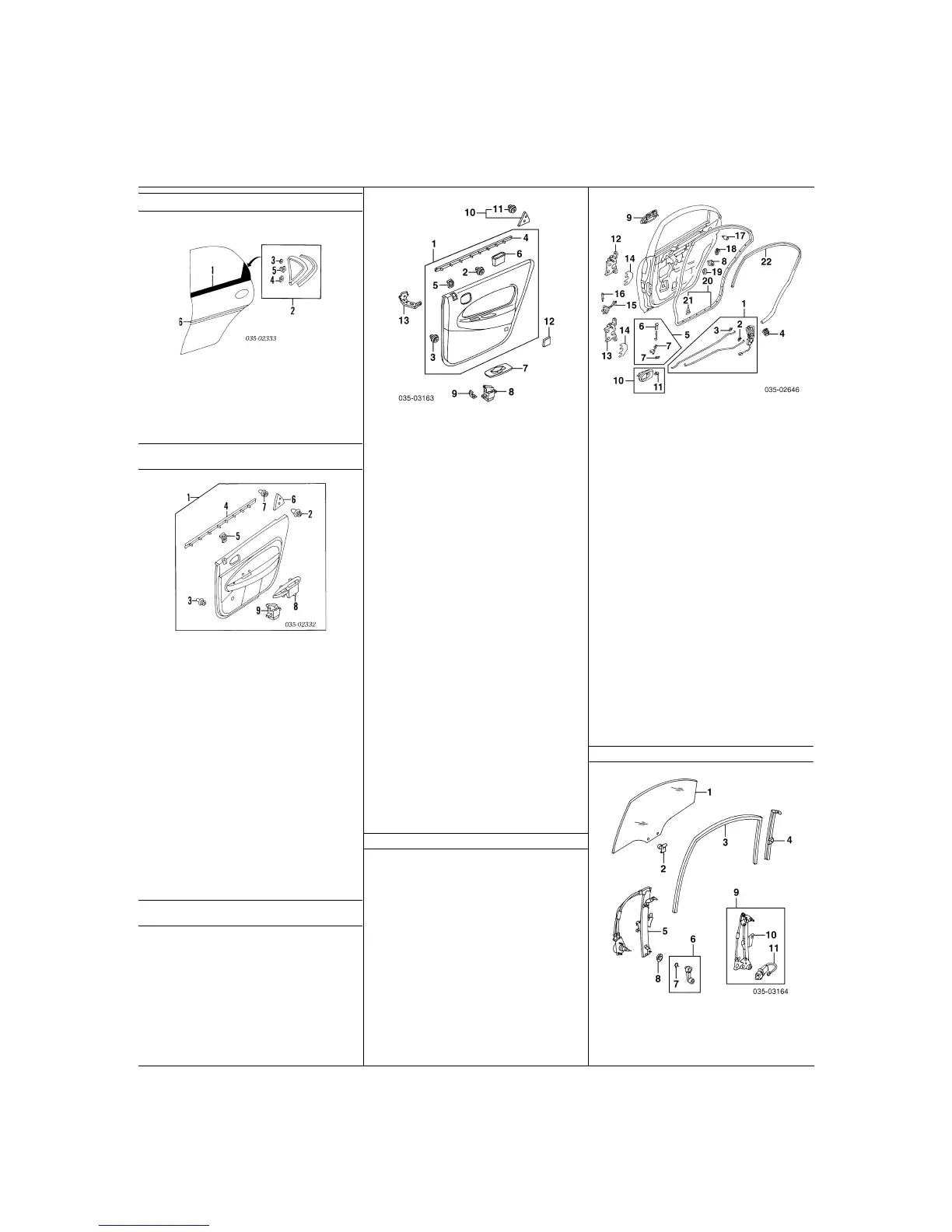

REAR DOOR Cont’d
EXTERIOR TRIM Cont’d
L BC1M-50-670B
2
Garnish Assy, Rear Door RBC1M-50-M30
LBC1M-50-M40
3
Gasket, Garnish Upr¶ R/L BC1M-50-M37
4
Gasket, Garnish Lwr¶ R/L BC1M-50-M38
5
Clip, Garnish¶ R/L BC1M-50-M38
¶Included w/Rear Door Garnish Assy
6
Moulding, Side
Adhesive R BC5A-50-682A
L BC5A-50-692A
INTERIOR TRIM
1995-96
1 Panel Assy, Trim¶
DX Model R B02H-68-52YA-09
L B02H-68-550D-09
LX Model 95 R BC1M-68-520D-09
L BC1M-68-550D-09
96 R BE5N-68-52YB-09
L BE5N-68-55YB-09
ES Model 95 R BC1N-68-52YB-09
L BC1N-68-550D-09
96 R BE5N-68-52YB-09
L BE5N-68-55YB-09
¶Dark Gray listed, Order by Application
09 Dark Gray; 90 Brown
2
Fastener, Trim Upper (b)
(3/Side) R/L G350-68-AB1
3
Fastener, Trim Lower (b)
(5/Side) R/L GA2A-68-AB1A
4
Weatherstrip, Inr (b) R BC1D-72-821
L BC1D-73-821
5
Vessel, Inner Lock¶ (b) R/L GJ21-68-421A-09
¶Dark Gray listed, Order by Application
09 Dark Gray; 90 Brown
6
Garnish, Corner (b) R BC1D-68-51X
L BC1D-68-51Y
7
Fastener, Garnish (b)
(4/Side) R/L G350-68-AB1
8
Panel, Switch (b)
Man Windows R BC1D-68-5L1
L BC1D-68-5L6
Pwr Windows R BC1M-68-5L1A
L BC1M-68-5L6A
9
Switch, Pwr Window (b) R/L HG30-66-370
(b) Included w/Trim Panel Assy
INTERIOR TRIM
1997-98
Illustration Located in Next Column
1
Panel Assy, Trim
DX Model
Brown
To 11-97 R BG1S-68-520H-90
L BG1S-68-550H-90
From 11-97 R BG1S-68-520H-90
L BG1S-68-550H-90
Gray
To 11-97 R BG1S-68-520H-09
L BG1S-68-550H-09
From 11-97 R BG1S-68-520H-09
L BG1S-68-550H-09
LX Model
Brown
To 11-97 R BG1P-68-520G-90
L BG1P-68-550G-90
From 11-97 R BG1P-68-520G-90
L BG1P-68-550G-90
Gray
To 11-97 R BG1P-68-520G-09
L BG1P-68-550G-09
From 11-97 R BG1P-68-520G-09
L BG1P-68-550G-09
ES Model
Brown
To 11-97 R BG1N-68-520G-90
L BG1N-68-550G-90
From 11-97 R BG1N-68-520G-90
L BG1N-68-550G-90
Gray
To 11-97 R BG1N-68-520G-09
L BG1N-68-550G-09
From 11-97 R BG1N-68-520G-09
L BG1N-68-550G-09
2
Fastener, Trim Upper¶
(5/Side) R/L G350-68-AB1
3
Fastener, Trim Lower¶
(3/Side) R/L GA2A-68-AB1A
4
Weatherstrip, Inr¶ R BC1D-72-821
L BC1D-73-821
5
Vessel, Inr Lock¶
Brown R/L B21H-68-421-90
Gray R/L B21H-68-421-09
6
Handle, Pull¶
Brown R/L B21H-68-D71H-90
Gray R/L B21H-68-D71A-09
7
Panel, Switch¶
LX, ES Model R/L B21J-68-5L1-00
8
Switch, Power Window¶
LX, ES Model R/L HG30-66-370
9
Bracket, Trim¶
LX, ES Model R/L BC1D-68-414
¶Included w/Trim Panel Assy
10
Garnish Assy, Corner R BC1D-68-51X
L BC1D-68-51Y
11
Fastener, Garnish¶
(2/Side) R/L G350-68-AB1
¶Included w/Corner Garnish Assy
12
Cap, Door Trim
Brown R/L B21H-68-406-90
Gray R/L B21H-68-406-09
13
Brkt, Pull Handle R B21H-68-425C
L B21H-68-455C
HARDWARE
Illustration Located in Next Column
1
Latch Assy
Manual R BC1D-72-310C
L BC1D-73-310C
Power R BC1E-72-310E
L BC1E-73-310E
2
Clip, Latch Rod¶ R/L 9927-80-307
3
Clip, Handle Rod¶ R G030-59-315
L G030-58-315
¶Included w/Latch Assy
4
Striker, Latch R/L BC1D-58-361B
5
Knob Assy, Door Lock
Brown R BC1D-72-390-90
L BC1D-73-390-90
Gray R BC1D-72-390-09
L BC1D-73-390-09
6
Knob, Door Lock¶
Brown R/L GA7B-58-316-90
Gray R/L GA7B-58-316-09
7
Clip, Lock Knob¶ R G030-58-315
L G030-59-315
¶Included w/Door Lock Knob Assy
8
Holder, Rod (2/Side) R/L B001-58-309A
9
Handle, Outside
1995
Black R BC1D-72-410
L BC1D-73-410
Body Color¶ R BC1E-72-410-4F
L BC1E-73-410-4F
1996-97 R BC1D-72-410
L BC1D-73-410
1998 R BC1D-72-410B
L BC1D-73-410B
¶Champagne Silver listed, Order by Application
J4 Passion Rose; PT Chaste White; SU Classic Red;
VQ Noble Green; 29 Sparkle Green; 61 Solemn Blue;
4F Champagne Silver; 6Z Thunder Gray
10
Handle Assy, Inside
Brown R GA2K-58-330B-90
L GA2K-59-330B-90
Gray R GA2K-58-330B-09
L GA2K-59-330B-09
11
Clip, Handle¶ R B001-59-335
L FB01-58-335
¶Included w/Inside Handle Assy
12
Hinge, Upper R BC1D-72-210C
L BC1D-73-210C
13
Hinge, Lower R BC1D-72-240C
L BC1D-73-240C
14
Shim, Hinge (2/Side) R/L B455-72-231A
15
Check, Door R/L BC1D-72-270B
16
Pin, Door Check R/L BC1D-58-265
17
Cushion, Rubber R/L G067-58-873
18
Clip, Door Lock R/L B038-58-866
19
Cover, Hole R/L B499-62-868
20
Weatherstrip Assy R BC1D-72-760D
L BC1D-73-760E
21
Fastener¶
Upper R/L BC1D-58-763
Lower (20/Side) R/L BC1D-58-762
¶Included w/Weatherstrip Assy
22
Welt, Seaming 95-96 R/L BC1D-68-911-2
97-98 R/L B21H-68-913-4
GLASS & PARTS
1 Glass, Rear Door
Mazda 95-96 R BC1D-72-511
L B01W-73-511
97-98 R B16A-72-511A
L B16A-73-511A
2
Grommet (2/Side) R/L S084-58-502
