Mazda 323 Protege - Front Drive Axle

MAZDA 323/PROTEGE 1995-98
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
304
madpl1_g02_
Page 304—April 22, 2004—15:28:28—Version Manufacturer

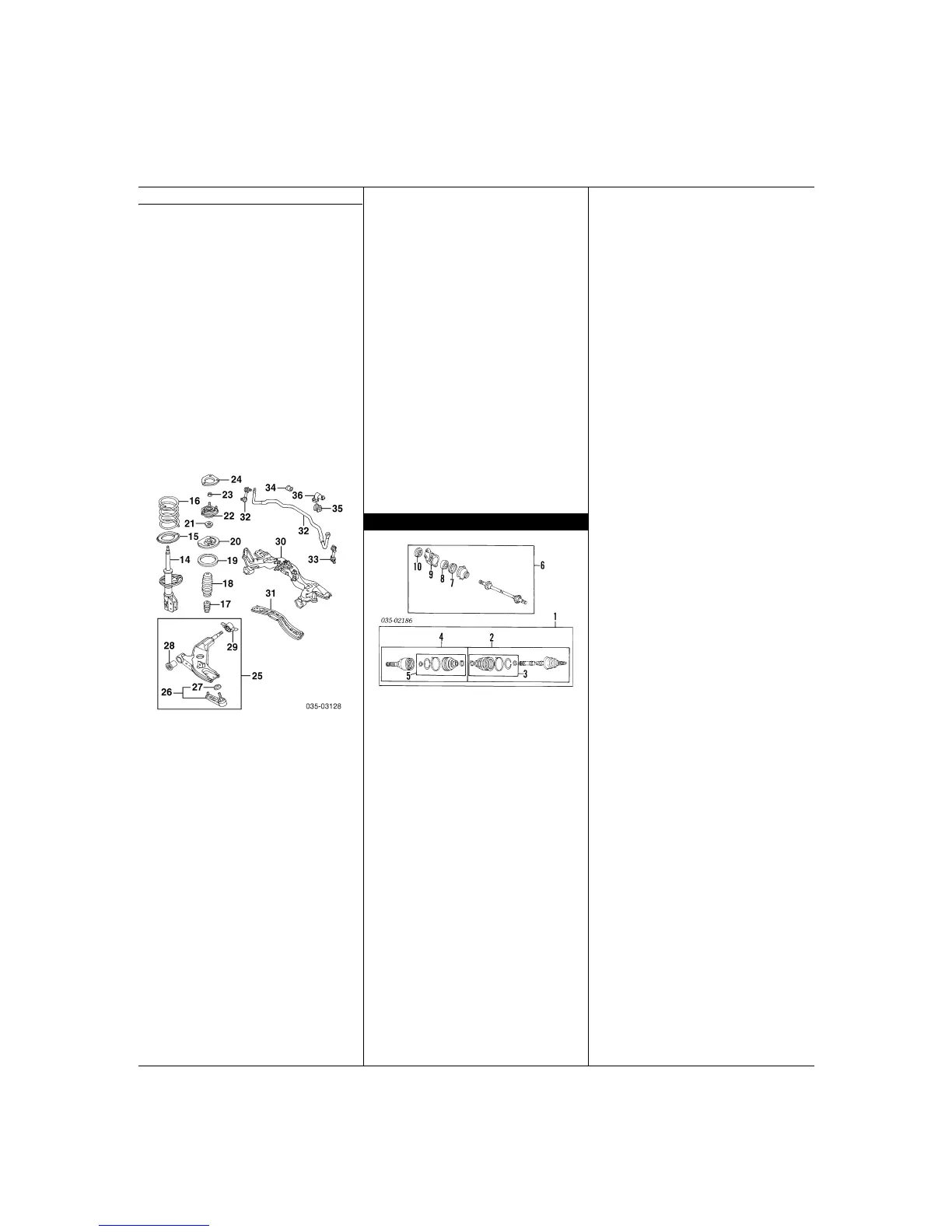

FRONT SUSPENSION Cont’d
3 Hub Assy R/L B01A-33-060A
4
Bolt, Hub¶ R/L B01Y-33-062
¶Included w/Hub Assy
5
Bearing R/L B455-33-047D-MV
6
Ring, Retaining R/L B21M-33-048
7
Knuckle Assy, Steering
1.5L Eng
w/ABS R B02H-33-020C
L B02H-33-030C
w/o ABS R B01L-33-020B
L B01L-33-030B
1.8L Eng
w/ABS R B01F-33-020C
L B01F-33-030C
w/o ABS R B01A-33-020B
L B01A-33-030B
8
Shield, Splash¶ R B01A-33-261B
L B01A-33-271B
¶Included w/Steering Knuckle Assy
9
Seal, Oil R/L G304-33-065
10
Rotor, ABS Sensor-See Front Drive Axle Section
11 Caliper, Brake¶
1.5L Eng R B4Y2-33-98ZR
L B4Y2-33-99ZR
1.8L Eng R BRY4-33-98ZR
L BRY4-33-99ZR
¶Remanufactured Parts, Contact Dealer for Core Charge &
Exchange Information
12
Pad, Brake
1.5L Eng B0YW-33-26Z
1.8L Eng B4Y5-33-26Z
13
Hose, Brake R/L B455-43-980B
14
Strut
1.5L Eng
1995
w/ABS R BC1D-34-700A
L BC1D-34-900A
w/o ABS R BH2M-34-700A
L BH2M-34-900A
1996 R BH2M-34-700A
L BH2M-34-900A
1997-98 R BC1E-34-700F
L BC1E-34-900F
1.8L Eng
1995
w/ABS R BC1F-34-700
L BC1F-34-900
w/o ABS R BH2L-34-700A
L BH2L-34-900A
1996 R BH2L-34-700A
L B17R-34-900
1997-98 R BC1E-34-700F
L BC1E-34-900F
15
Seat, Lower R/L BC1D-34-0A3A
16
Spring, Coil
1.5L Eng
Man Trans R/L BC1D-34-011
Auto Trans R/L BC1E-34-011
1.8L Eng
Man Trans R/L B01A-34-011
Auto Trans
w/Sunroof R/L BC1G-34-011
w/o Sunroof R/L B01A-34-011
17
Bumper, Bound R/L B01C-34-111
18
Boot, Dust R/L BC1D-34-0A5A
19
Gskt, Rubber R/L B455-34-012
20
Seat, Upper R/L BC1D-34-340
21
Plate, Bearing R/L M001-34-38XB
22
Mount, Strut R/L B01C-34-380
23
Nut R/L 9YB0-41-202
24
Plate, Adjust R/L BC1D-34-013
25
Arm Assy, Lower Control
1.5L Eng
1995 R B01A-34-300E
L B01A-34-350E
1996 R B02B-34-300E
L B02B-34-350E
1997-98
13" Wheels R B02B-34-300E
L B02B-34-350E
14" Wheels R BE7B-34-300A
L BE7B-34-350A
1.8L Eng 95-96 R B01A-34-300E
L B01A-34-350E
97-98 R B01A-34-300E
L B01A-34-350E
26
Ball Joint Assy¶ R/L BTDA-34-550
27
Seal, Dust¶ (a) R/L G030-34-565
(a) Included w/Ball Joint Assy
28
Bushing, Front¶ R/L BC1D-34-470
29
Bushing, Rear¶
1.5L Eng
1995-96 R BC1D-34-46X
L BC1D-34-46Y
1997-98
13" Wheels R BC1D-34-46X
L BC1D-34-46Y
14" Wheels R BC1F-34-46X
L BC1F-34-46Y
1.8L Eng R BC1F-34-46X
L BC1F-34-46Y
¶Included w/Lower Control Arm Assy
30
Crossmember, Suspension
1.5L Eng BC1D-34-800C
1.8L Eng BC6A-34-800B
31
Member, Transverse
1.8L Eng BC1D-34-H90
32
Bar, Stabilizer
Hatchback N.A.
Sedan BC1F-34-15XA
33
Link, Stabilizer R GA2A-34-150A
L GA2A-34-170A
34
Bushing, Stabilizer R/L T001-34-152
35
Bushing, Stabilizer Mount
Hatchback R/L N.A.
Sedan R/L BC1D-34-156
36
Brkt, Bushing R/L BC1D-34-155B
FRONT DRIVE AXLE
1 Shaft Assy, Axle
1.5L Eng
w/ABS
1995
Man Trans R FA08-25-50XR-0C
L F069-25-60XR-0D
Auto Trans R FA08-25-50XR-0C
L F069-25-60XR-0D
1996 R FA08-25-50XR-0C
L F069-25-60XR-0D
1997-98
w/Calif Emission R FA08-25-50XR-0C
L F069-25-60XR-0D
w/o Calif Emission R FZ02-25-40XR-0B
L F069-25-60XR-0D
w/o ABS
1995
Man Trans R F063-25-500R-0E
L F069-25-600R-0D
Auto Trans R F063-25-500R-0E
L F069-25-600R-0D
1996 R F063-25-500R-0E
L F069-25-600R-0D
1997-98
w/Calif Emission R F063-25-500R-0E
L F069-25-600R-0D
w/o Calif Emission R FZ01-25-40XR-0B
L F069-25-600R-0D
1.8L Eng
w/ABS
1995
Man Trans R FA15-25-50XR-0C
L F066-25-60XB
Auto Trans R F066-25-50XR-0C
L F069-25-60XR-0D
1996 R F066-25-50XR-0C
L F069-25-60XR-0D
1997-98 R F066-25-50XR-0C
L F069-25-60XR-0D
w/o ABS
1995
Man Trans R FA14-25-50XR-0C
L F065-25-60XB
Auto Trans R F066-25-500R-0C
L F069-25-600R-0D
1996 R F066-25-500R-0C
L F069-25-600R-0D
1997-98 R F066-25-500R-0C
L F069-25-600R-0D
Rotor, ABS Sensor¶
1.5L Eng R/L BC4C-33-471
1.8L Eng 95 R/L B613-33-471B
96-98 R/L BC4C-33-471
2
Joint Assy, Outer¶
1.5L Eng
w/ABS
1995
Man Trans R FA08-22-510C
L F064-22-610D
Auto Trans R FA08-22-510C
L F071-22-610D
1996 R FA08-22-510C
L F069-22-610C
1997-98
w/Calif Emission R FA08-22-510C
L F079-22-610A
w/o Calif Emission R FA02-22-510E
L F079-22-610A
w/o ABS
1995
Man Trans R FA09-22-510C
L F069-22-610C
Auto Trans R F063-22-510C
L F069-22-610C
1996 R F063-22-510C
L F069-22-610C
1997-98
w/Calif Emission R F063-22-510D
L F069-22-610C
w/o Calif Emission R FA01-22-510E
L F069-22-610C
1.8L Eng
w/ABS
1995
Man Trans R FA14-22-510
L GA06-22-610
Auto Trans R F066-22-510
L FA03-22-610A
1996 R F066-22-510B
L F069-22-610C
1997-98 R F067-22-510A
L F079-22-610A
w/o ABS
1995
Man Trans R FA14-22-510
L GA06-22-610
Auto Trans R F066-22-510
L F069-22-610C
1996 R F067-22-510A
L F069-22-610C
1997-98 R F066-22-510B
L F069-22-610C
3
Boot, Outer¶ (a)
1995
1.5L Eng R/L BS10-V9-050-9U
1.8L Eng R/L BS40-V9-050-9U
1996 R/L BS10-V9-050-9U
1997-98
1.5L Eng
Right
w/Calif Emission
w/ABS BS10-V9-050-9U
w/o ABS FA01-22-530-9U
w/o Calif Emission BS10-V9-050-9U
Left BS10-V9-050-9U
1.8L Eng R/L BS10-V9-050-9U
(a) Included w/Outer Joint Assy
4
Joint Assy, Inner¶
1995
1.5L Eng R F061-22-520
L FZ02-22-520A
1.8L Eng
Man Trans R F065-22-520
L F065-22-620
Auto Trans R F065-22-520
L F068-22-620
1996 R F061-22-520
L FZ02-22-520A
1997-98
w/Calif Emission R F061-22-520
L FZ02-22-520A
w/o Calif Emission R FZ01-22-520
L FZ02-22-520A
5
Boot, Inner¶ (b)
1.5L Eng R/L F061-22-540-9U
1.8L Eng 95 R/L F037-22-540-9U
96-98 R/L F061-22-540-9U
¶Included w/Axle Shaft Assy
(b) Included w/Inner Joint Assy
Damper, Dynamic
1.5L Eng
Man Trans 95-96 R F037-25-411
97-98 R FA01-25-411
6
Shaft Assy, Intermediate
1.5L Eng
Man Trans F055-25-700B
Auto Trans F056-25-700C
1.8L Eng
Man Trans 95 F057-25-700
96-98 FA08-25-700D
Auto Trans F058-25-700C
7
Seal, Dust Inner (c) 95 G560-25-744
96-98 F011-25-744
8
Bearing (c) 95 9960-68-2063
96-98 9960-68-2064
9
Brkt, Shaft Support (c)
1.5L Eng
Man Trans F055-25-741A
Auto Trans F056-25-741A
