Mazda 323 Protege - Front Door

MAZDA 323/PROTEGE 1995-98
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
312
madpl1_g02_

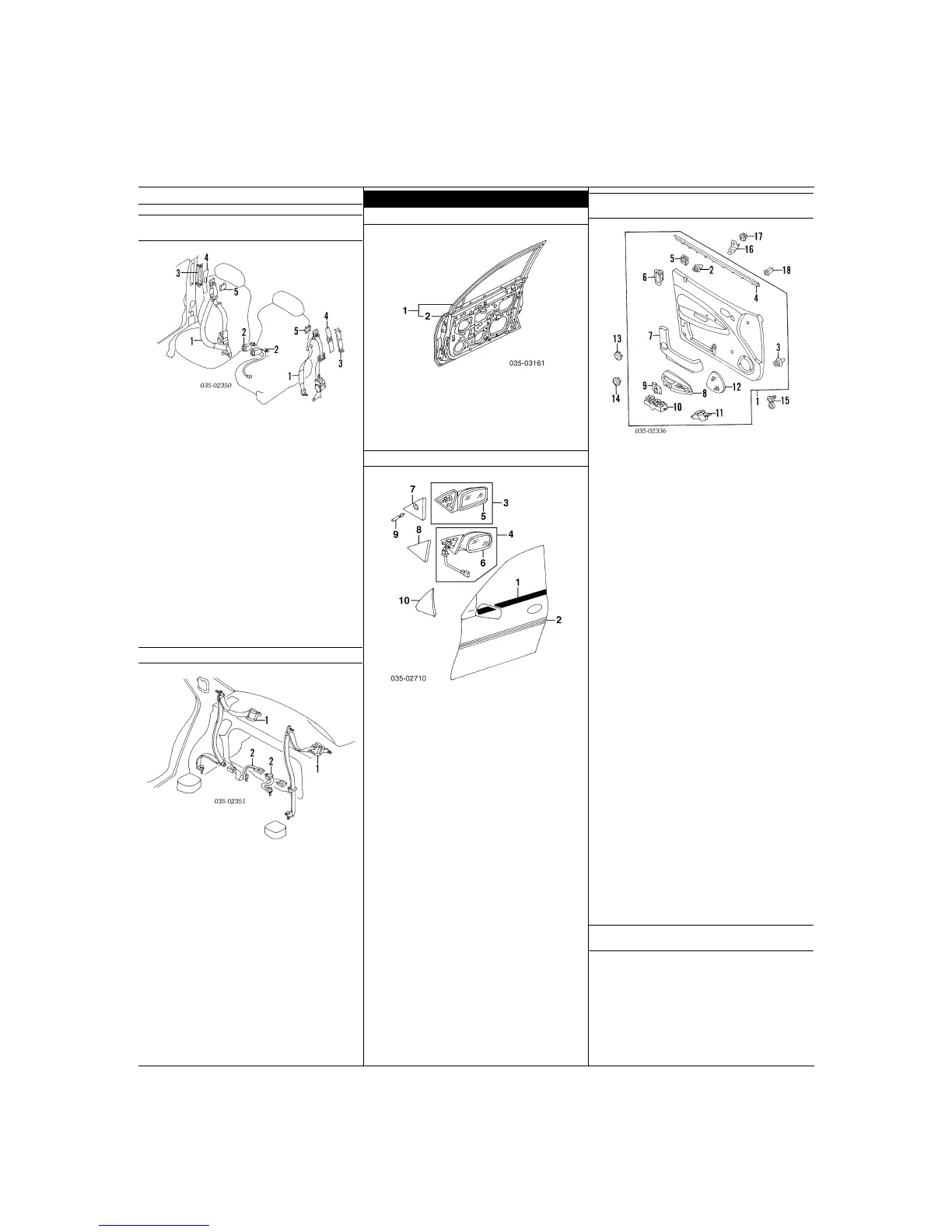

Page 312—April 22, 2004—15:28:39—Version Manufacturer
SEAT BELTS Cont’d
FRONT
SEDAN
Belt, Seat¶
1 Retractor Side
1995-96
Black R BE5H-57-630-02
L BC1M-57-690C-02
Brown R BE5H-57-630-90
L BC1M-57-690B-90
1997-98
Black R BG1N-57-630A-02
L BG1N-57-690A-02
Brown R BG1N-57-630A-90
L BG1N-57-690A-90
2 Buckle Side
1995-96
Black R BC1M-57-620-02
L BC1M-57-680B-02
Brown R BC1M-57-620-90
L BC1M-57-680B-90
1997-98
Black R BG1N-57-620C-02
L BG1N-57-680D-02
Brown R BG1N-57-620C-90
L BG1N-57-680D-90
3
Adjuster R/L BC1M-57-960A
4
Cover, Adjuster
Brown R/L BC1M-57-969A-90
Gray R/L BC1M-57-969A-06
5
Cover, Anchor
Black R/L BC1M-57-631-02
Brown R/L BC1M-57-631-90
REAR
1 Belt, Outer Seat
Hatchback
Black R/L N.A.
Brown R/L N.A.
Sedan
1995-96
Black R BC1M-57-730B-02
L BC1M-57-790A-02
Brown R BG1N-57-730-90
L BG1N-57-790-90
1997-98
Black R BG1N-57-730-02
L BG1N-57-790-02
Brown R BG1N-57-730-90
L BG1N-57-790-90
2
Belt, Center Seat
Black R BC1M-57-720B-02
L BC1M-57-780B-02
Brown R BC1M-57-720B-90
L BC1M-57-780B-90
FRONT DOOR
SHEET METAL
1 Shell Assy, Door
Hatchback R/L N.A.
Sedan R BG1N-58-020B
L BG1N-59-020B
2
Panel, Door Repair¶
Hatchback R/L N.A.
Sedan R BC1D-58-031A
L BC1D-59-031A
¶Included w/Door Shell Assy
EXTERIOR TRIM
1 Moulding, Belt
Hatchback R/L N.A.
Sedan R BC1M-50-640
L BC1M-50-650
2
Moulding, Side
Adhesive
Hatchback R/L N.A.
Sedan R/L BC5A-50-681A
Mirror Assy, Rear View
3 Manual R BC1M-69-120F
L BC1M-69-180G
4Power
Black 95 R BC1F-69-120A
L BC1F-69-180A
96 R BC1F-69-120C
L BC1F-69-180C
97-98 R BG1N-69-120B
L BG1N-69-180B
Body Color¶ 95 R BC1N-69-120B-6Z
L BC1N-69-180B-6Z
¶Thunder Gray listed, Order by Application
J4 Passion Rose; PT Chaste White; SU Classic Red;
VQ Noble Green; 29 Sparkle Green; 61 Solemn Blue;
4F Champagne Silver; 6Z Thunder Gray
Glass, Mirror (a)
5 Manual R BC1M-69-123
L BC1M-69-183
6 Power 95-96 R BC1N-69-1G1
L BC8E-69-1G7
97-98 R BG1N-69-1G1A
LBG1N-69-1G7A
(a) Included w/Rear View Mirror Assy
Garnish, Mirror Inner
7 Manual R BC1M-69-111D
L BC1M-69-171D
8 Power R BC1N-69-111
L BC1N-69-171
9
Knob, Door Mirror R/L B01W-69-1B5
10
Garnish, Right Outer BC1M-69-155A
INTERIOR TRIM
1995-96
1 Panel Assy, Trim¶
Hatchback
GS Model R/L N.A.
LS Model R/L N.A.
Sedan (b)
DX Model R B02H-68-420D-09
L B02H-68-45YB-09
LX Model 95 R BC1M-68-42YA-09
L BC1M-68-45YA-09
96 R B16D-68-42YD-09
L BE5N-68-45YD-09
ES Model 95 R BC1N-68-420C-09
L BC1N-68-45YD-09
96 R B16B-68-42YA-09
L BE5M-68-450A-09
¶Dark Gray listed, Order by Application
09 Dark Gray; 90 Brown
(b) Add'l Parts &/or Dealer Contact Required
2
Fastener, Trim Upper (a)
(4/Side) R/L G350-68-AB1
3
Fastener, Trim Lower (a)
(3/Side) R/L GA2A-68-AB1A
4
Weatherstrip, Inr (a) R BC1D-58-821
L BC1D-59-821
5
Vessel, Inner Lock¶ (a) R/L GJ21-68-421A-09
6
Switch, Pwr Lock¶ (a) L BC1D-66-660-09
7
Pocket, Door Trim¶ (a)
Hatchback R/L N.A.
Sedan R BC1D-68-4C0-09
L BC1D-68-4N0-09
¶Dark Gray listed, Order by Application
09 Dark Gray; 90 Brown
8
Panel, Switch (a)
Man Windows R BC1D-68-4L1A
L BC1D-68-4L6A
Pwr Windows R BC1M-68-4L1B
L BC1M-68-4L6B
9
Knob, Switch (a) R BC1D-68-DD2B
L BC1D-68-DD7B
10
Switch, Pwr Window (a) R HG30-66-370
L BC1D-66-350A
11
Switch, Mirror¶ (a) L BE5M-68-45YA-90
12
Grille, Speaker¶ (a) R BC1D-68-4H1-09
L BC1D-68-4W1-09
¶Dark Gray listed, Order by Application
09 Dark Gray; 90 Brown
(a) Included w/Trim Panel Assy
Speaker, Radio
Hatchback R/L N.A.
Sedan R/L 0000-81-6696
Bracket, Speaker R/L NA01-66-9B0A
13
Cap, Pocket¶ R/L BC1D-68-4C3-09
¶Dark Gray listed, Order by Application
09 Dark Gray; 90 Brown
14
Lens, Courtesy Lamp R/L BC1M-68-4G1B
15
Cap, Screw¶ R/L B501-68-D11B-09
¶Dark Gray listed, Order by Application
09 Dark Gray; 90 Brown
16
Bracket, Pull Handle R/L E016-68-425
17
Grommet, Front R/L B316-69-361
18
Grommet, Rear R/L B110-68-429
INTERIOR TRIM
1997-98
Illustration Located in Next Column
1
Panel Assy, Trim
DX Model
Brown
To 11-97 R BG1S-68-420E-90
L BG1S-68-450E-90
From 11-97 R BG1S-68-420E-90
