Mazda 323 Protege - Engine;Trans Mounts; Air Cleaner

MAZDA 323/PROTEGE 1995-98
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
306
madpl1_g02_
Page 306—April 22, 2004—15:28:30—Version Manufacturer

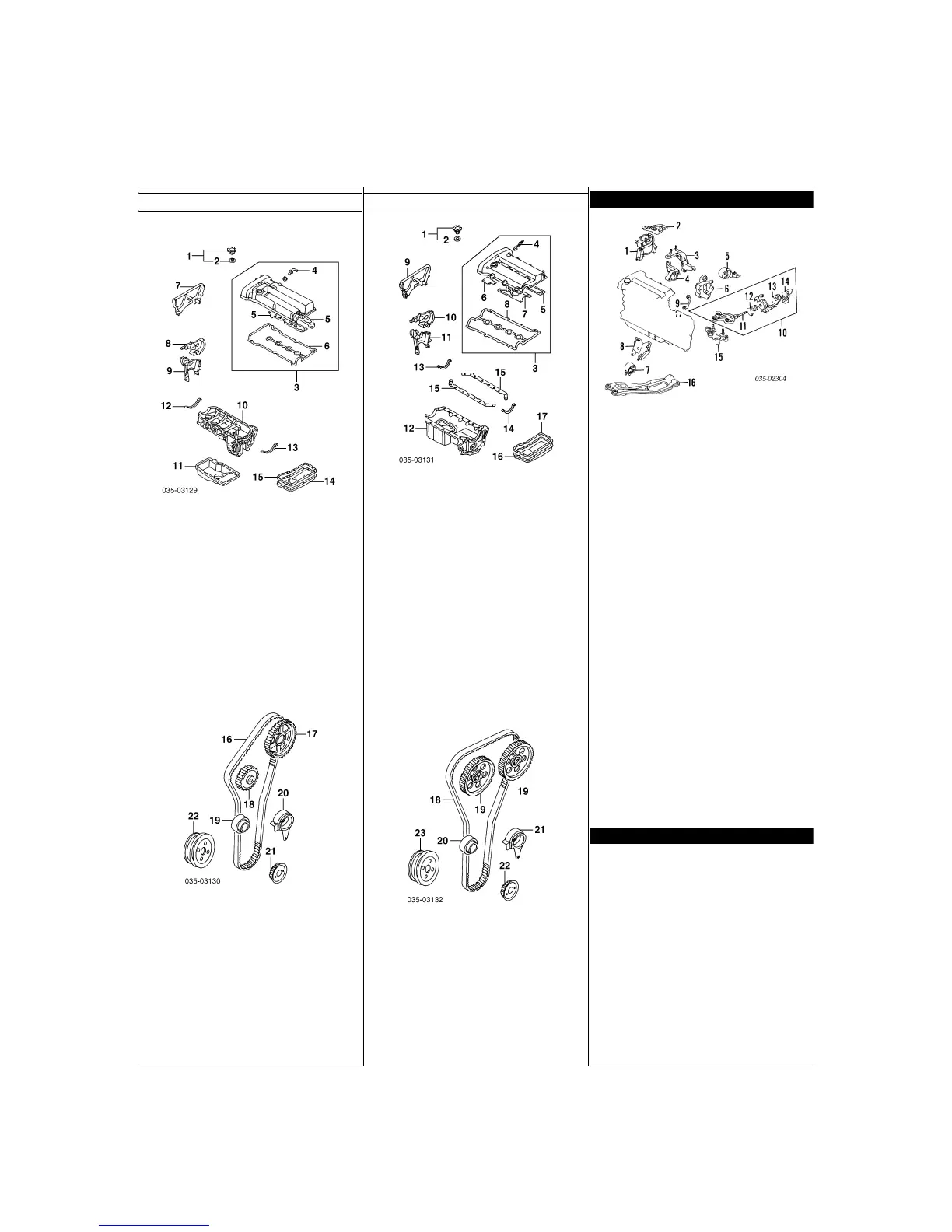

ENGINE/TRANS Cont’d
1.5L ENG Cont’d
1 Cap Assy, Oil Filler 0453-10-250A
2
Gasket, Filler Cap¶ 8871-10-252
¶Included w/Oil Filler Cap Assy
3
Cover Assy, Valve 95 Z506-10-210
96-98 Z506-10-210
4
Valve, PCV¶ B541-13-890A
5
Plate, Baffle¶ R Z501-10-227
L Z501-10-22X
6
Gasket, Valve Cover¶ Z505-10-235A
¶Included w/Valve Cover Assy
Cover, Timing
7 Upper Z501-10-511
8 Center B6BF-10-521
9 Lower B660-10-501E
Sealant, Timing Cover 8527-77-739
Pan, Eng Oil
10 Upper B6Z7-10-380B
11 Lower 95 B6BF-10-400A
96-98 Z501-10-400
Gasket, Eng Oil Pan
12 Front B6F4-10-427
13 Rear B6F4-10-428
Sealant, Eng Oil Pan 8527-77-739
14
Pan, Trans Oil FU60-21-511B
15
Gasket, Trans Oil Pan FU60-21-512B
16
Belt, Timing 95-97 Z501-12-205-9U
98 Z502-12-205-9U
Sprocket, Camshaft
17 Right 95-97 B6S7-12-425A
98 Z502-12-425
18 Left 95-97 Z501-12-730
98 Z502-12-425
19
Pulley, Idler B660-12-730C
20
Tension, Belt B660-12-700F
21
Sprocket, Crankshaft 95-97 B3C7-11-321
98 Z502-11-321
22
Pulley, Crankshaft 95-97 B6BF-11-401A
98 B6BG-11-401
Belt, Drive-See Cooling Section
1.8L ENG
1 Cap Assy, Oil Filler¶ 0453-10-250A
2
Gasket, Filler Cap¶ 8871-10-252
¶Included w/Oil Filler Cap Assy
3
Cover Assy, Valve BPD3-10-210C
4
Valve, PCV¶ BP05-13-890
Plate, Baffle¶
5 Right B6S7-10-225
Left
6 Front B6S7-10-22X
7 Rear B6S7-10-22Y
8
Gasket, Valve Cover¶ BP05-10-235C
¶Included w/Valve Cover Assy
Cover, Timing
9 Upper B6BF-10-511A
10 Center B6BF-10-521
11 Lower B660-10-501E
Sealant, Timing Cover 8527-77-739
12
Pan, Eng Oil
Man Trans
To 1-97 BP01-10-400K
From 1-97 BP02-10-400M
Auto Trans
To 1-97 BP02-10-400H
From 1-97 BP02-10-400K
Gasket, Eng Oil Pan
13 Front B541-10-427
14 Rear B541-10-428
15
Stiffener, Eng Oil Pan R/L BP09-10-436
Sealant, Eng Oil Pan 8527-77-739
16
Pan, Trans Oil FU60-21-511B
17
Gasket, Trans Oil Pan FU60-21-512B
18
Belt, Timing B6S7-12-205D-9U
19
Sprocket, Camshaft R/L B6S7-12-425A
20
Pulley, Idler B660-12-730C
21
Tensioner, Belt B660-12-700F
22
Sprocket, Crankshaft B3C7-11-321
23
Pulley, Crankshaft
Man Trans 95-97 BPD3-11-401A
98 BPD4-11-401
Auto Trans 95-97 B6BF-11-401A
98 B6BG-11-401
Belt, Drive-See Cooling Section
ENGINE/TRANS MOUNTS
1 Mount, Engine Front BC1F-39-060C
Brkt, Front Engine Mount
2 Upper B02B-39-061
Lower
3 Right Side
1.5L Eng BC1D-39-030D
1.8L Eng BC1F-39-030C
4 Left Side
1.5L Eng BC1D-39-035A
1.8L Eng BC1F-39-035A
5
Mount, Eng Right Rear
Man Trans BC1D-39-040B
Auto Trans BC1E-39-040B
6
Bracket, Eng
Right Rear Mount BC1D-39-010
7
Mount, Eng Left Rear
Man Trans BC1D-39-050A
Auto Trans BC1G-39-050B
8
Brkt, Eng Left Rear Mount
1.5L Eng
Man Trans BC1D-39-020
Auto Trans BC1G-39-021
1.8L Eng
Man Trans 95 BC1F-39-020
96-98 BC1D-39-020
Auto Trans BC1G-39-021
9
Brace, Left Rear Mount
1.5L Eng F530-39-010
1.8L Eng GJ21-39-04XC
10
Mount Assy, Trans
Man Trans
1.5L Eng BC1D-39-100E
1.8L Eng 95 BC1E-39-100C
96-98 BC1D-39-100E
Auto Trans BC1E-39-100C
11
Brkt, Trans Mount¶
Man Trans
1.5L Eng BC1D-39-080
1.8L Eng 95 BC1E-39-081
96-98 BC1D-39-080
Auto Trans BC1E-39-081
Washer, Trans Mount¶
12 Front BC1D-39-087B
13 Rear BC1D-39-088
14
Damper, Dynamic¶
Man Trans B02C-39-08XC
¶Included w/Trans Mount Assy
Plate, Trans Mount
Man Trans
1.5L Eng BC1D-39-084
15
Support, Trans Mount
Man Trans
1.8L Eng BC1F-39-090
16
Member, Engine Mount BC1D-39-800B
AIR CLEANER
Illustration Located in Next Column
1
Cleaner Assy, Air
1.5L Eng B595-13-320B
1.8L Eng B6BF-13-320B
2
Element, Cleaner¶ B595-13-Z40-9U
3
Lid, Air Cleaner¶
1.5L Eng B595-13-Z01A
1.8L Eng B6BF-13-Z01A
¶Included w/Air Cleaner Assy
4
Bracket, Air Cleaner Assy B6BF-20-210
5
Tube, Fresh Air B6BF-13-200
6
Hose, Fresh Air B6BF-13-206B
7
Duct, Fresh Air B6BF-13-201C
8
Meter, Air Flow
1.5L Eng B3H7-13-215R-00
1.8L Eng B6BF-13-215
9
Hose Assy, Air
1.5L Eng 95-96 B595-13-220A
97-98 B5C9-13-221
1.8L Eng 95-96 B6BF-13-220C
97-98 B6KP-13-221
