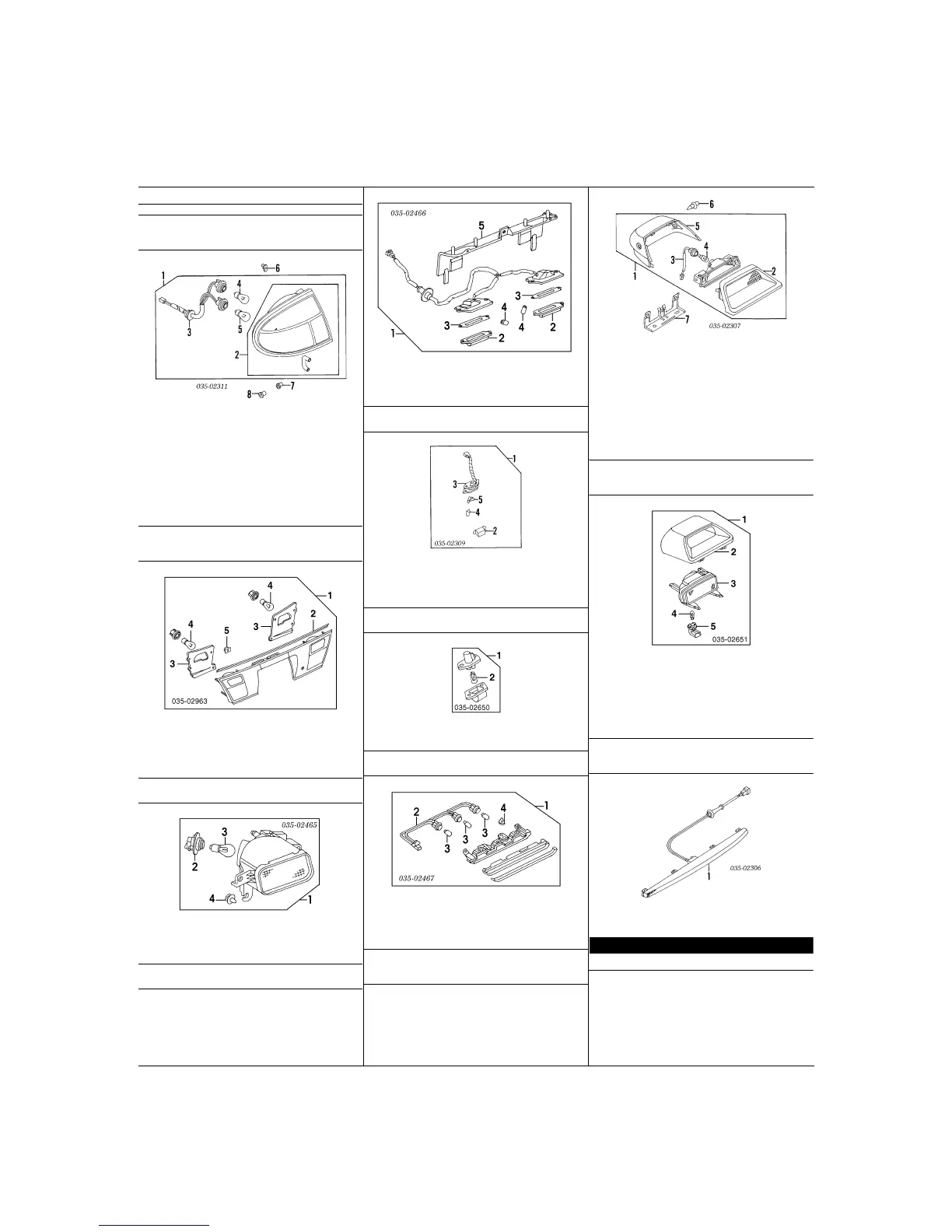

REAR LAMPS Cont’d
COMBINATION LAMP
ON QUARTER PANEL
SEDAN
1 Lamp Assy, Combination
1995 R BC1M-51-150B
L BC1M-51-160B
1996-98 R BC1M-51-150B
L BC1M-51-160B
2
Lens & Body¶ R BC1M-51-170A
L BC1M-51-180A
3
Socket & Wire¶ 95 R/L BC1M-51-155A
96-98 R/L B16A-51-155
4
Bulb, Upper¶ R/L 0000-11-1156
5
Bulb, Lower¶ R/L 0000-11-1157
¶Included w/Combination Lamp Assy
6
Grommet, Upper (2/Side) R/L B01W-51-142B
7
Grommet, Lower R/L GA7B-51-146
8
Fastener R/L B01A-51-146
COMBINATION LAMP
ON LUGGAGE LID
SEDAN
1 Finisher Assy 95-96 BC1M-50-850E
97-98 B21H-50-850B
2
Protector, Finisher¶ BC1M-50-853
3
Gasket¶ R/L BC1M-50-855A
4
Bulb¶ R/L 9970-13-210
5
Fastener¶ (3) B173-50-852A
¶Included w/Finisher Assy
BACK-UP LAMP
HATCHBACK
1 Lamp Assy, Back-Up R/L N.A.
2
Socket¶ R/L N.A.
3
Bulb¶ R/L N.A.
4
Clip, Lamp¶ R/L N.A.
¶Included w/Back-Up Lamp Assy
LICENSE LAMP
HATCHBACK
Illustration Located in Next Column
1
Lamp Assy, License N.A.
2
Lens¶ R/L N.A.
3
Gasket, Lens¶ R/L N.A.
4
Bulb¶ R/L N.A.
5
Bracket, Lamp¶ N.A.
¶Included w/License Lamp Assy
LICENSE LAMP
SEDAN 1995
1 Lamp Assy, License R/L BC1F-51-270B
2
Lens¶ R/L B216-51-274C
3
Gasket¶ R/L B01W-51-273
4
Bulb¶ R/L 0000-11-0194
5
Protector¶ R/L B216-51-277
¶Included w/License Lamp Assy
LICENSE LAMP
SEDAN 1996-98
1 Lamp Assy, License R/L B16A-51-270B
2
Bulb¶ R/L 0000-11-0194
¶Included w/License Lamp Assy
HIGH MOUNT STOP LAMP
HATCHBACK
1 Lamp Assy, Stop¶ N.A.
¶Mounted on Liftgate
2
Socket & Wire (a) N.A.
3
Bulb (a) (3) N.A.
4
Clip, Lamp (a) N.A.
(a) Included w/Stop Lamp Assy
HIGH MOUNT STOP LAMP
ON PACKAGE TRAY
SEDAN 1995
Illustration Located in Next Column
1
Lamp Assy, Stop
Brown BC1M-51-580-90
Gray BC1M-51-580-09
2
Lens & Body¶
Brown BC1M-51-593-90
Gray BC1M-51-593-09
3
Socket & Wire¶ BC1M-51-584
4
Bulb¶ 0000-11-0921
5
Cover, Lamp¶
Brown BC1M-51-587-90
Gray BC1M-51-587-09
¶Included w/Stop Lamp Assy
6
Fastener, Lamp (2)
Brown HG30-51-599-90
Gray HG30-51-599-09
7
Bracket, Lamp BC1M-51-598
HIGH MOUNT STOP LAMP
ON PACKAGE TRAY
SEDAN 1996-98
1 Lamp Assy, Stop
Brown B16A-51-580C-90
Gray B16A-51-580C-09
2
Cover, Lamp (a)
Brown B16A-51-587-90
Gray B16A-51-587-09
3
Lens & Housing (a) B16A-51-593C
4
Bulb (a) 0000-11-0921
5
Socket (a) BW0A-51-584
(a) Included w/Stop Lamp Assy
HIGH MOUNT STOP LAMP
ON SPOILER
SEDAN
1 Lamp, Stop¶ B01W-51-580A
¶Included w/Air Spoiler Assy-listed in Luggage Lid Exterior Trim
Section
REAR BUMPER
HATCHBACK
Illustration Located in Next Column
1
Cover, Rear (P) N.A.
(P) Paint to Match
2
Grommet, Upper R/L N.A.
