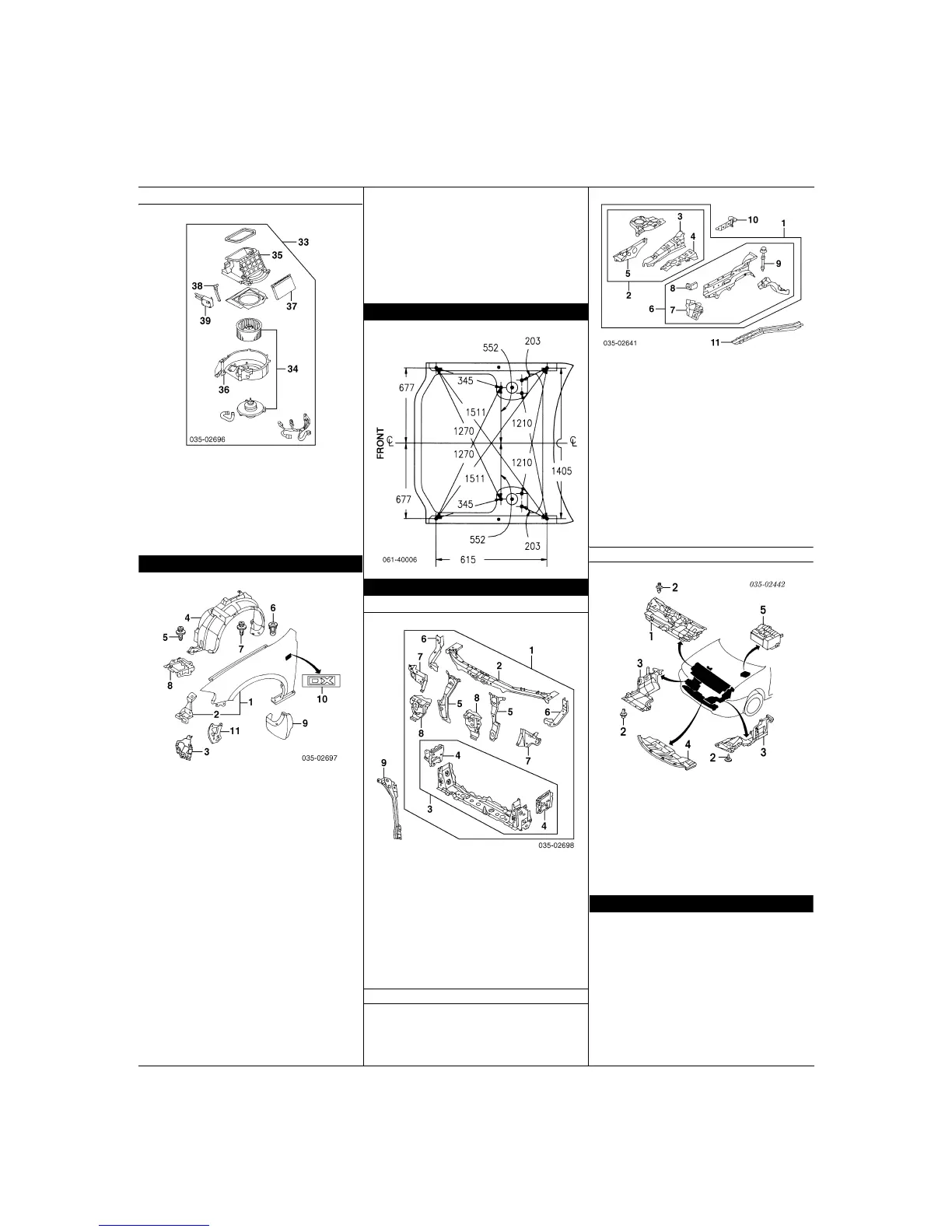

Mazda 323 Protege - Front Fender; Front Inner Structure; Underhood Dimensions; Airbag System

MAZDA 323/PROTEGE 1995-98
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
302
madpl1_g02_
Page 302—April 22, 2004—15:28:24—Version Manufacturer
A/C /HEATER Cont’d
Elect Controls BC1N-61-B01
1997-98 BC1M-61-B01B
36
Case, Heater Lower¶ BC1M-61-B02
37
Door, Blower¶ B01A-61-B05
38
Link, Blower Door¶
1995-96
Man Control BC1M-61-B20
Elect Controls BC1N-61-B20
1997-98 BC1M-61-B20
39
Actuator, Link¶
Elect Controls BC1N-61-B60
¶Included w/Blower Assy
FRONT FENDER
1 Fender Assy
Hatchback R/L N.A.
Sedan 95-96 R BC1D-52-110B
L BC1D-52-210B
97-98 R BG1N-52-110B
L BG1N-52-210B
Bracket, Fender
2 1995-96¶
Hatchback R/L N.A.
Sedan R BC1D-53-12ZC
L BC1D-54-12ZC
3 1997-98 R B21H-53-12ZB
L B21H-54-12ZB
¶Included w/Fender Assy
4
Shield, Splash R BC1D-56-131G
L BC1D-56-141J
Clip, Shield
5 Type 1 (7/Side) R/L BC1D-56-145
6 Type 2 R/L B455-56-145
7
Rivet, Shield R/L B455-56-143
8
Stay, Fender R BC1B-53-280A
L BC1B-54-290A
9
Mudguard
Sedan
USA (Set of 2) 0000-88-450F-F2
Canada R/L N.A.
10
Emblem, Side¶
Hatchback
"GS"
Gray Metallic R/L N.A.
Silver Metallic R/L N.A.
"RS"
Gray Metallic R/L N.A.
Silver Metallic R/L N.A.
"LS"
Gray Metallic R/L N.A.
Silver Metallic R/L N.A.
Sedan
"DX"
Gray Metallic R/L BC4C-51-761-80
Silver Metallic R/L BC4C-51-761-85
"LX"
Gray Metallic R/L BC5A-51-761-80
Silver Metallic R/L BC5A-51-761-85
"ES"
Gray Metallic R/L BD0G-51-761-80
Silver Metallic R/L BD0G-51-761-85
"SE"
Gray Metallic R/L N.A.
Silver Metallic R/L N.A.
11
Hook, Tow R/L BC1D-53-364A-TT
UNDERHOOD DIMENSIONS
FRONT INNER STRUCTURE
FRONT
1 Support Assy, Radiator BC1D-53-100D
2
Bar, Upper Tie¶ BC1D-53-150C
3
Bar Assy, Lower ie¶ BC1D-53-16XA
4
Plate, Frame¶ (a) R BC1D-53-172
L BC1D-54-172
(a) Included w/Lower Tie Bar Assy
5
Support, Upper Tie Bar¶ R BC1D-53-130A
L BC1D-54-131
6
Panel, Side Support¶ R BCYD-53-12X
L BCYD-54-12X
7
Bracket, Bumper¶ R BCYD-53-120
L BCYD-54-120
8
Bracket, Lamp¶ R BC1D-53-12X
L BC1D-54-12X
¶Included w/Radiator Support Assy
9
Support, Hood Latch BC1D-53-35Z
SIDE
Illustration Located in Next Column
1
Apron Assy R BC1D-53-200
L BC1D-54-200
2
Wheelhouse Assy¶ R BC1D-53-210D
L BC1D-54-210
3
Reinf, Upper¶ (a) R BC1D-53-260
L BC1D-54-260
4
Reinf, Lower¶ (a) R BC1D-53-271
L BC1D-54-271
5
Panel, Apron Front¶ (a) R BCYD-53-210
L BC1D-54-220
(a) Included w/Wheelhouse Assy
6
Rail Assy, Side¶ 95-96 R BC1D-53-300A
L BC1D-54-300B
97-98 R B16A-53-300A
L BC1D-54-300B
7
Brkt, Lower Tie Bar¶ (b) R BC1D-53-16Y
L BC1D-54-16Y
8
Brkt, Bumper/Frame¶ (b) R BC1D-53-335
L BC1D-54-335
9
Bolt, Eng Member¶ (b) R/L B456-53-319
¶Included w/Apron Assy
(b) Included w/Side Rail Assy
10
Bracket, ABS L B603-54-39ZB
11
Unirail, Front R BC1D-53-660
L BC1D-54-660
FRONT COMPONENTS
1 Cover, Rad Support
Hatchback N.A.
Sedan BC1D-56-381D
2
Clip, Shield
Hatchback (9) BC1D-56-145
Sedan (10) BC1D-56-145
3
Shield, Engine Side R BC1D-56-111B
L BC1D-56-121
4
Shield, Lower Front
Hatchback N.A.
Sedan BG1N-56-1ZX
5
Block, Main Fuse 95 BC1F-66-760A
96 BE5M-66-760A
97-98 BG1N-66-760A
AIR BAG SYSTEM
Illustration Located in Next Column
1
Sensor Unit, Air Bag 95 BH2K-57-K30
96-98 B16A-57-K30A
2
Brkt, Sensor 95 BC1M-57-KX0C
96-98 B16A-57-KX0C
3
Module Assy, Driver Air Bag
1995-96 BC1M-57-K00C
1997 BG1N-57-K00A
1998 BG1P-57-K00B
4
Switch, Horn¶ BC1M-57-K0Z
¶Included w/Driver Air Bag Module Assy
5
Clockspring¶
