Mazda 323 Protege - Quarter Panel

MAZDA 323/PROTEGE 1995-98
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
316
madpl1_g02_
Page 316—April 22, 2004—15:28:46—Version Manufacturer
BACK WINDOW Cont’d
97-98 B16A-63-930A
2
Clip, Glass¶ R/L FB01-63-959
¶Included w/Back Window Glass Assy
3
Spacer, Upper (3) C001-50-897
4
Spacer, Lower R/L BC1M-50-891
5
Dam, Back Window NA01-50-894A
6
Mldg, Reveal 95 BC1M-50-6AXB
96-98 BC1N-50-611
7
Moulding Assy, Lower 95 BC1M-50-6K0B
8
Clip, Moulding Ctr¶ 95 BC1M-50-6K9
9
Grommet¶ (5) 95 B223-50-765
¶Included w/Lower Moulding Assy
10
Clip, Mldg Otr (4) 95 BC1M-50-6K7

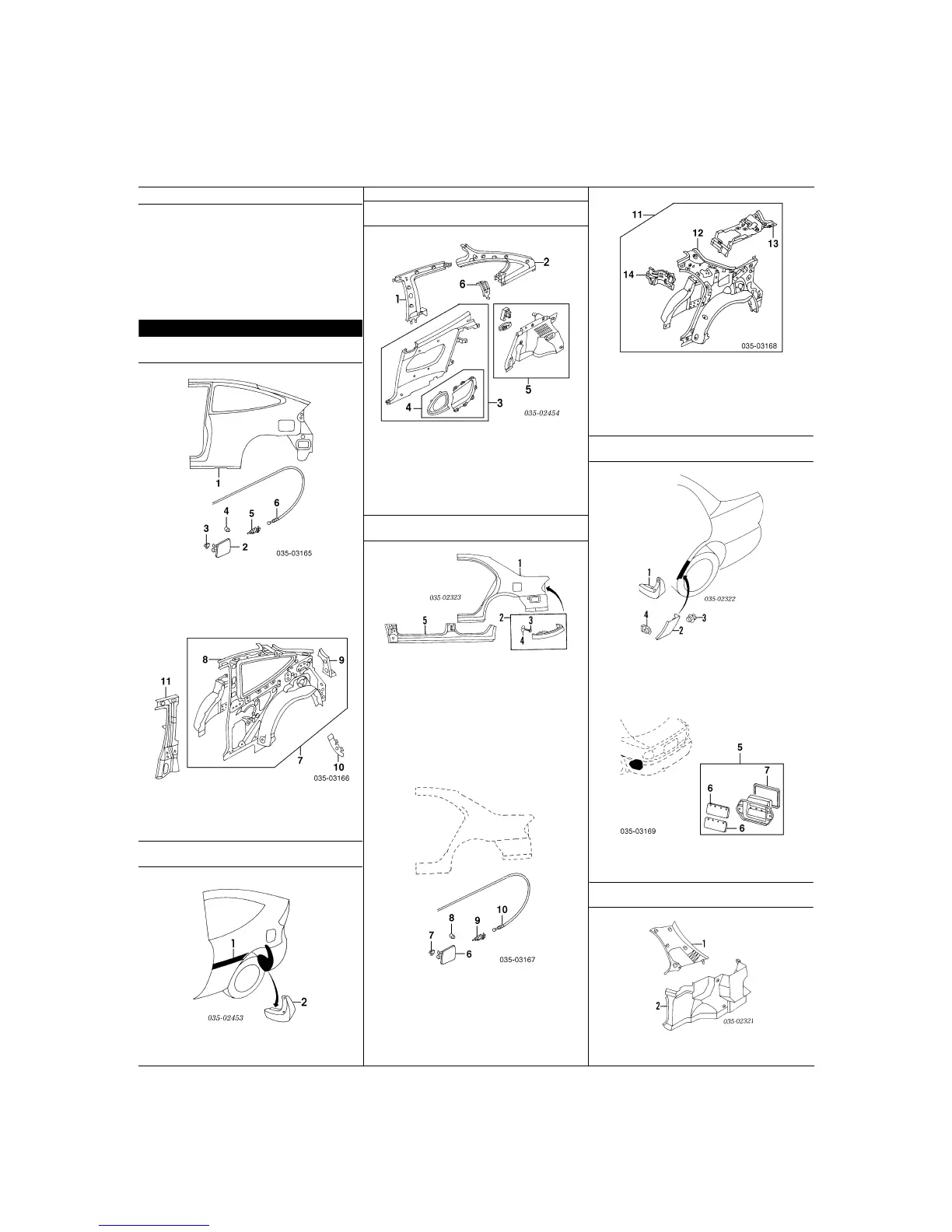

QUARTER PANEL
SHEET METAL
HATCHBACK
1 Panel, Outer Quarter RN.A.
LN.A.
2
Door, Fuel N.A.
3
Spring, Fuel Door N.A.
4
Stopper, Fuel Door (2) N.A.
5
Opener, Fuel Door N.A.
6
Cable, Fuel Door N.A.
7
Panel Assy, Inner Quarter R/L N.A.
8
Panel, Inner¶ R/L N.A.
9
Pillar, Rear Inner¶ R/L N.A.
¶Included w/Inner Quarter Panel Assy
10
Reinf, Rear RN.A.
11
Pillar, Lock R/L N.A.
EXTERIOR TRIM
HATCHBACK
1 Moulding, Side
Adhesive R/L N.A.
2
Mudguard R/L N.A.
INTERIOR TRIM
HATCHBACK
1 Panel, Upper Front Trim R/L N.A.
2
Panel, Upper Rear Trim R/L N.A.
3
Panel Assy, Lower Trim
GS Model R/L N.A.
LS Model R/L N.A.
4
Grille, Speaker¶ R/L N.A.
¶Included w/Lower Trim Panel Assy
Speaker, Radio R/L N.A.
5
Trim Assy, Side-See Rear Body Section
6 Bracket, Cover R/L N.A.
SHEET METAL
SEDAN
1 Panel, Outer Quarter R B0YW-70-400
L B0YW-71-400
2
Panel Assy, Filler¶ R BC1M-51-2E0A-SU
L BC1M-51-2F0A-SU
¶Classic Red listed, Order by Application
J4 Passion Rose; PT Chaste White; SU Classic Red;
VQ Noble Green; 14 Oriental Red; 25 Sandalwood;
29 Sparkle Green; 42 Noble Green; 45 Vivid Blue;
61 Solemn Blue; 4F Champagne Silver; 6Z Thunder Gray;
PZ Brilliant Black; 3L Silver Stone; 12R Aquarius Blue
3
Bolt (a) M001-51-3F4
4
Gasket (a) R/L BC1M-51-2F3
(a) Included w/Filler Panel Assy
5
Panel, Otr Rocker-See Rocker/Pillars/Floor Section
6 Door, Fuel BC1D-42-410A
7
Spring, Fuel Door D061-42-451B
8
Stopper, Fuel Door (2) GJ6A-42-459
9
Opener, Fuel Door EA01-56-890D
10
Cable, Fuel Door BC1D-56-880
11
Panel Assy, Inner Quarter R BCYD-70-110
L BCYD-71-110
12
Panel, Inner¶ R BCYD-70-11X
L BCYD-71-11X
13
Ext, Package Tray¶ R BC1D-70-180D
L BC1D-71-180D
14
Gusset, Package Tray¶ R BC1D-70-182
L BC1D-71-182
¶Included w/Inner Quarter Panel Assy
EXTERIOR TRIM
SEDAN
1 Mudguard
USA (Set of 2) 0000-88-460R-F2
Canada R/L N.A.
2
Guard, Stone R BC1M-50-481A
L BC1M-50-491A
3
Rivet R/L B092-51-833
4
Grommet R/L G030-51-852
5
Chamber Assy, Extractor R/L E016-51-920G
6
Valve, Chamber¶ (2/Side) R/L E016-51-923C
7
Gasket, Chamber¶ R/L E016-51-922
¶Included w/Extractor Chamber Assy
INTERIOR TRIM
SEDAN
1 Trim, Pillar
Brown R BC1D-68-250E-90
