LIFTGATE Cont’d
GLASS & PARTS Cont’d
¶Included w/Glass Bracket Assy
10
Dam, Lower Glass N.A.
11
Blade Assy, Wiper N.A.
12
Insert, Blade¶ N.A.
¶Included w/Wiper Blade Assy
13
Arm, Wiper N.A.
14
Cover, Wiper Arm N.A.
15
Nut, Upper N.A.
16
Cap, Seal N.A.
17
Nut, Lower N.A.
18
Bushing, Outer N.A.
19
Motor, Wiper N.A.
20
Tank Assy, Washer N.A.
21
Tank, Washer¶ N.A.
22
Cap, Tank¶ N.A.
23
Pump, Washer¶ N.A.
¶Included w/Washer Tank Assy
24
Valve, Washer Tank N.A.
25
Joint, Hose N.A.
26
Protector, Pipe N.A.
27
Nozzle, Spray N.A.

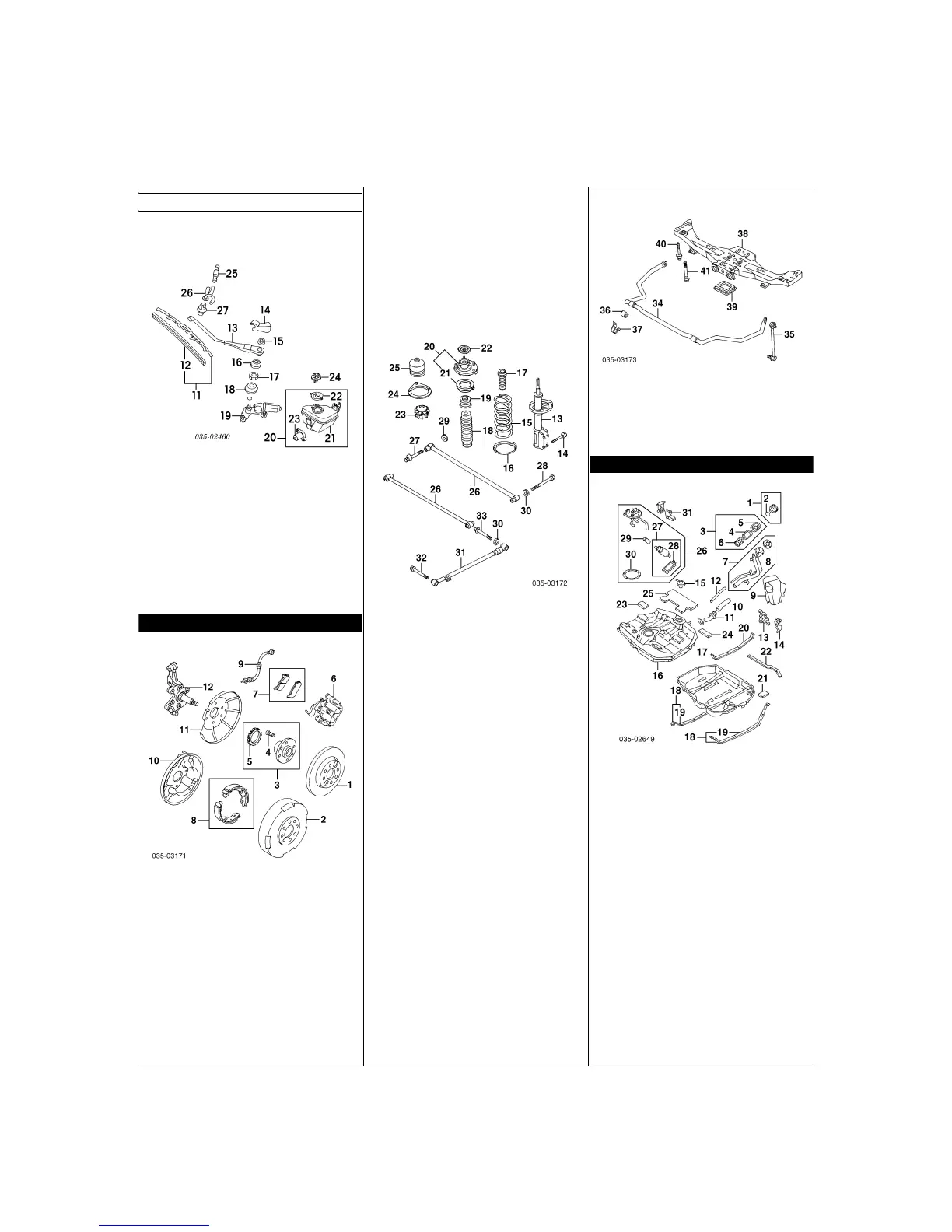

REAR SUSPENSION
1 Rotor, Brake 95-96 R/L BB4C-26-251C
97-98 R/L BB4C-26-251C
2
Drum, Brake 95 R/L D102-26-251
96-98 R/L B596-26-251D
3
Bearing & Hub Assy
w/ABS R/L B603-26-15XC
w/o ABS R/L B455-26-15XA
4
Bolt, Hub¶ (4/Side) 95 R/L B01Y-33-062
96-98 R/L B455-33-062
5
Rotor, ABS Sensor¶ R/L B603-26-471A
¶Included w/Bearing & Hub Assy
Sensor, ABS-See ABS/Brakes Section
6 Caliper, Brake¶ 95-96 R BCYF-26-98ZR
L BCYF-26-99ZR
97-98 R BCYF-26-98ZR
L BCYF-26-99ZR
¶"R" Suffix Indicates Remanufactured Part. Contact Dealer for Core
Charge & Exchange Information
7
Pad Set, Brake BCYF-26-43ZB
8
Shoe Set, Brake BCYD-26-38ZA
9
Hose, Brake
1.5L Eng R/L BC1D-43-810
1.8L Eng R/L BC1F-43-980
10
Plate, Backing
Drum Brakes
w/ABS R BC1M-26-280B
L BC1M-26-290B
w/o ABS R BC1D-26-280A
L BC1D-26-290A
11
Shield, Splash
Disc Brakes R/L B613-26-261A
12
Spindle, Hub
Drum Brakes
w/ABS R BC1E-26-111C
L BC1E-26-115C
w/o ABS R B455-26-111D
L B455-26-115D
Disc Brakes
w/ABS R B603-26-111B
L B603-26-115B
w/o ABS R B461-26-111B
L B461-26-115B
13
Strut
1.5L Eng
1995
w/ABS R BC1D-28-700C
L BC1D-28-900C
w/o ABS R BC1E-28-700C-9U
L BC1E-28-900C-9U
1996 R BC1E-28-700C-9U
L BC1E-28-900C-9U
1997-98 R BC1H-28-700B
L BC1H-28-900B
1.8L Eng
1995
w/ABS R BC1F-28-700B
L BC1F-28-900B
w/o ABS R BC1G-28-700B
L BC1G-28-900B
1996 R BC1G-28-700B
L BC1G-28-900B
1997-98 R/L BC1G-28-900D
14
Bolt, Strut (2/Side) R/L 9YA0-21-231C
15
Spring, Coil¶
1.5L Eng R/L BC1C-28-011
1.8L Eng R/L BC1E-28-011
¶Order by Application
16
Seat, Rubber R/L B455-28-0A3
17
Stopper, Bumper 95 R/L B01C-28-111A
96-98 R/L B25D-28-111
18
Boot, Dust R/L B01C-28-0A5A
19
Seat, Spring R/L B01C-28-340A
20
Insulator Assy, Mounting R BC1D-28-380B
L BC1D-28-390B
21
Seat, Rubber¶ R/L B01C-28-012
¶Included w/Mounting Insulator Assy
22
Bushing R/L BC1D-28-343A
23
Stopper, Damper 95 R/L BC1D-28-019D
96-98 R/L B455-28-019
24
Plate, Adjust 95-96 R/L BC1D-28-0A1A
97-98 R/L B21H-28-0A1
25
Cap, Mount 95-96 R/L BC1D-28-01YD
97-98 R/L B455-28-019
26
Link, Lateral
Front R/L B02A-28-620A
Rear R/L BC1D-28-600B
27
Bolt, Adjust 95-96 R/L BC1D-28-664
97-98 R/L BC1F-28-66Z
28
Bolt, Lateral Link R/L GA2A-28-113A
29
Plate, Cam 95-96 R/L BCY9-28-6AZ
97-98 R/L BC1F-28-473A
30
Washer, Spindle R/L 0193-34-662A
31
Link, Trailing
1.5L Eng 95-96 R BC1D-28-200
L BC1D-28-250
97-98 R/L BC5A-28-200A
1.8L Eng 95-96 R BC1F-28-200
L BC1F-28-250
97-98 R/L BC5B-28-200A
32
Bolt, Lateral Link Frt R/L B455-28-114A
33
Bolt, Lateral Link Rear
1995 R/L 9YA0-21-207
1996-98 R/L B455-28-116
34
Bar, Stabilizer
1.8L Eng BC1D-28-151
35
Link, Stabilizer R/L BC1D-28-170A
36
Bushing, Stabilizer R/L G564-28-156A
37
Bracket, Stabilizer R/L GA2A-28-155A
38
Crossmember, Susp BC1D-28-800B
39
Cover, Crossmember (2) GA2A-28-831A
40
Bolt, Crossmember Outer
(2/Side) R/L GA2A-28-89X
41
Bolt, Crossmember Inner R/L 9YA0-21-009
FUEL TANK
1 Cap Assy, Filler
To 3-97 UE54-42-250
From 3-97 to 5-97 BJ0E-42-250B
From 5-97 BE5M-42-250
2
Gasket, Cap¶ BF67-42-252
¶Included w/Filler Cap Assy
3
Cover Assy, Dust
To 5-97 B01W-42-240A
From 5-97 BE5M-42-240
4
Gasket, Dust Cover Upr¶ BC1D-42-244
5
Cover, Lever¶ B455-42-242A
6
Gasket, Dust Cover Lwr¶ B01W-42-243
¶Included w/Dust Cover Assy
7
Pipe Assy, Filler
1995
w/Calif Emission BC1M-42-210C
w/o Calif Emission BC5A-42-210C
1996-98 BC4C-42-210B
8
Gasket, Filler Pipe¶ B455-42-366
¶Included w/Filler Pipe Assy
9
Protector, Filler Pipe BC1M-42-298B
10
Hose, Joint
Hatchback N.A.
Sedan
1995
w/Calif Emission BC1M-42-231
w/o Calif Emission B01A-42-231
1996 BC1M-42-231
1997-98 BG1N-42-231B
11
Hose, Filler BC1M-42-11X
12
Hose, Breather BC1M-42-232
13
Valve, Check
1995
w/Calif Emission BC1M-42-950
w/o Calif Emission B01A-42-910
1996-98 BC4C-42-950A
14
Bracket, Check Valve
1995-96
w/Calif Emission-Serviced w/Check Valve
