MAZDA 323/PROTEGE 1995-98
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
307
madpl1_g02_
Page 307—April 22, 2004—15:28:32—Version Manufacturer

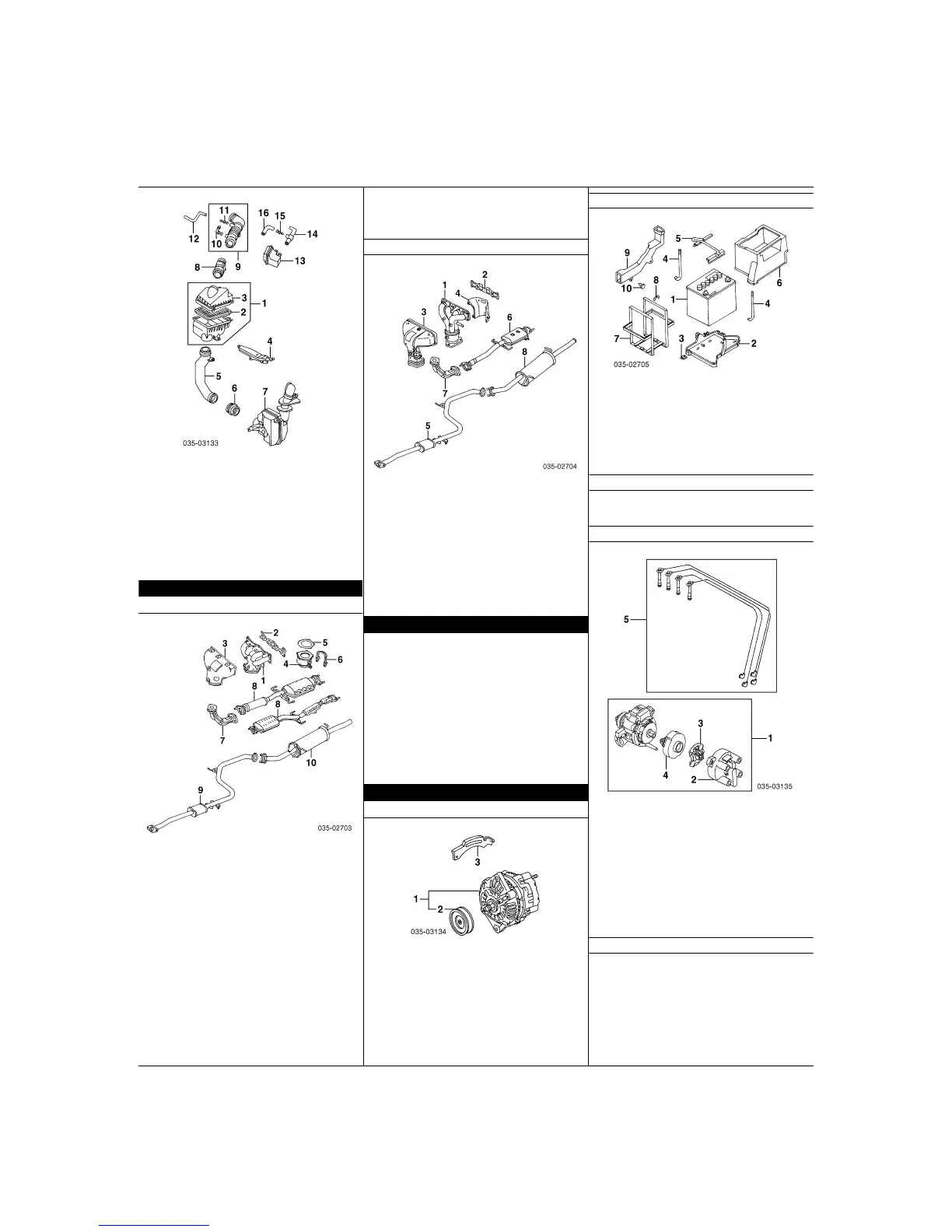

10
Joint, Air Hose¶
1.5L Eng 95-96 B595-13-758
1.8L Eng 95-96 B587-13-758
11
Pipe, Air Intake¶
B6S7-13-174
¶Included w/Air Hose Assy
12
Hose, Ventilation
1.5L Eng Z501-13-742A
1.8L Eng BPD3-13-742
13
Chamber, Resonance
95-96 B595-13-195A
14
Hose, Air Surge
1995-96
1.5L Eng B595-13-766
1.8L Eng BPD5-13-766
15
Pipe, Ventilation
95-96 JE26-13-746
16
Hose, By-Pass
95-96 B595-13-765
EXHAUST
1.5L ENG
1
Manifold, Exhaust
Z509-13-451A
2
Gasket, Manifold
Z501-13-460
3
Insulator, Manifold
B6CK-13-390D
4
Pre-Converter, Catalyst
w/Calif Emission B6GD-20-500C
w/o Calif Emission Z502-20-500
5
Gasket, Pre-Converter
B6CK-20-520
6
Bracket, Preconverter
B6H8-40-082C
7
Pipe, Front Exhaust
1995 Z503-40-500D
1996-98
w/Calif Emission B6H8-40-500E
w/o Calif Emission Z503-40-500D
8
Converter, Catalytic
w/Calif Emission Z502-20-600B
w/o Calif Emission 95 Z503-20-600B
96 Z524-20-600A
97-98 Z5A6-20-600B
9
Pipe, Intermediate
Hatchback N.A.
Sedan
1995 Z535-40-300A
1996-97 Z553-40-300A
1998
w/Calif Emission Z553-40-300A
w/o Calif Emission Z550-40-300A
10
Muffler, Rear
Hatchback N.A.
Sedan
1995 Z544-40-100A
1996 Z544-40-100A
1997-98
w/Calif Emission Z544-40-100A
w/o Calif Emission Z550-40-100B
1.8L ENG
1
Manifold, Exhaust
BPD3-13-450E
2
Gasket, Manifold
BPD3-13-460
3
Insulator, Manifold
BPE1-13-390D
4
Insulator, Heat
BPE1-13-380A
5
Pipe, Front Exhaust
BP47-40-500E
6
Converter, Catalytic
Hatchback N.A.
Sedan 95-96 BPD3-20-600A
97-98 BP3C-20-600C
7
Pipe, Intermediate
Hatchback N.A.
Sedan BP47-40-300E
8
Muffler, Rear
Hatchback N.A.
Sedan 95 BP47-40-100B
96 BPC8-40-100A
97-98 BP47-40-100B
EMISSION SYSTEM
Valve, EGR
95-96 B6BF-20-300
97-98 BP3C-20-300A
Canister, Vapor
1995
w/Calif Emission BPD3-13-978
w/o Calif Emission BP01-13-970
1996-98 JE96-13-978
Brkt, Canister
B6DA-13-960
Sensor, MAP
95 Z501-18-211
96-98 Z502-18-211A
Sensor, Coolant Temp
95-96 B593-18-840A
97-98 KLK1-18-840
Module, Control¶ (a)
1.5L Eng Z5Y3-18-881
1.8L Eng BPY4-18-881R-00
¶Parts w/an "R" Suffix are Rebuilt, Contact Dealer for Core Charge &
Exchange Information
(a) Order by Application
ELECTRICAL
ALTERNATOR
1
Alternator Assy¶
1995-96
1.5L Eng Z505-18-300R-00
1.8L Eng BPD3-18-300R-00
1997-98 Z599-18-300R-00
¶Parts w/an "R" Suffix are Rebuilt, Contact Dealer for Core Charge &
Exchange Information
2
Pulley, Alternator (a)
B3C7-18-W10
(a) Included w/Alternator Assy
3
Brace, Alternator Adj
B6BF-18-361C
Belt, Drive-See Cooling Section
BATTERY
1
Battery
0000-80-026R-WB
Cable, Positive
N.A.
Cable, Negative
BC1D-67-EW1B
2
Tray, Battery
BC1D-56-040B
3
Nut, Clip
95-96 FA01-50-054
4
Bolt, Clamp
R/L B180-56-034A
5
Clamp, Battery
B01E-56-031
6
Box, Battery
B6BF-18-591
7
Band, Battery
N350-18-522
8
Clip, Battery
B612-20-468
9
Duct, Battery
BPD7-18-596A
10
Clip, Duct (2)
W201-56-052
HORN
Horn
95-97 B596-66-790A
98 BG2L-66-790
Brkt, Horn
95-97 BG1N-66-7BY
98 BG1N-66-7BY
IGNITION
1
Distributor Assy
1995 B6BF-18-200R-0A
1996
1.5L Eng
w/Calif Emission B6BF-18-200R-0A
w/o Calif Emission BP1A-18-200R-00
1.8L Eng BP1A-18-200R-00
1997-98 BP1A-18-200R-00
2
Cap, Distributor¶
B593-18-V00A-9U
3
Rotor, Distributor¶
B6BF-18-V05-9U
4
Cover, Distributor¶
BP1A-18-V48
¶Included w/Distributor Assy
5
Wire Set, Ignition
1.5L Eng 95-96 0000-18-137A
97-98 0000-18-137A
1.8L Eng 95 0000-18-136A
96-98 0000-18-136A
STARTER
Illustration Located in Next Column
1
Starter Assy¶
1.5L Eng
1995-96 B676-18-400R-00
1997-98
0.8 KW B676-18-400R-00
To Next Page
