MAZDA 323/PROTEGE 1995-98
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
301
madpl1_g02_
Page 301—April 22, 2004—15:28:23—Version Manufacturer
7
Cushion Assy, Rear
R/L BC1M-56-78XA
8
Clip, Cushion¶
R/L UB39-56-741A
¶Included w/Rear Cushion Assy
9
Latch, Hood
BC1D-56-62X
10
Hook, Safety
Hatchback N.A.
Sedan BC1D-56-630
11
Cable, Hood Release
BC1M-56-720C
12
Clip, Release Cable
D001-56-731
13
Rod, Support
BC1M-56-650E
14
Grommet, Rod Pivot
95-96 T001-56-652
97-98 G030-52-518
15
Retainer, Grommet
B01A-56-641
16
Clip, Support Rod
BC1C-56-693A
17
Weatherstrip Assy, Hood Front
Hatchback N.A.
Sedan BC1M-56-770
18
Clip, W/Strip¶ (15)
B01A-56-741
¶Included w/Hood Front W/Strip Assy
19
Seal Assy, Hood
BC1M-56-750
20
Clip, Hood Seal¶ (13)
UB39-56-741A
¶Included w/Hood Seal Assy
21
Weatherstrip Assy, Hood Rear
BC1M-56-760
22
Fastener, W/Strip¶ (2)
G031-58-762
23
Clip, W/Strip¶ (9)
T001-56-742
¶Included w/Hood Rear Weatherstrip Assy

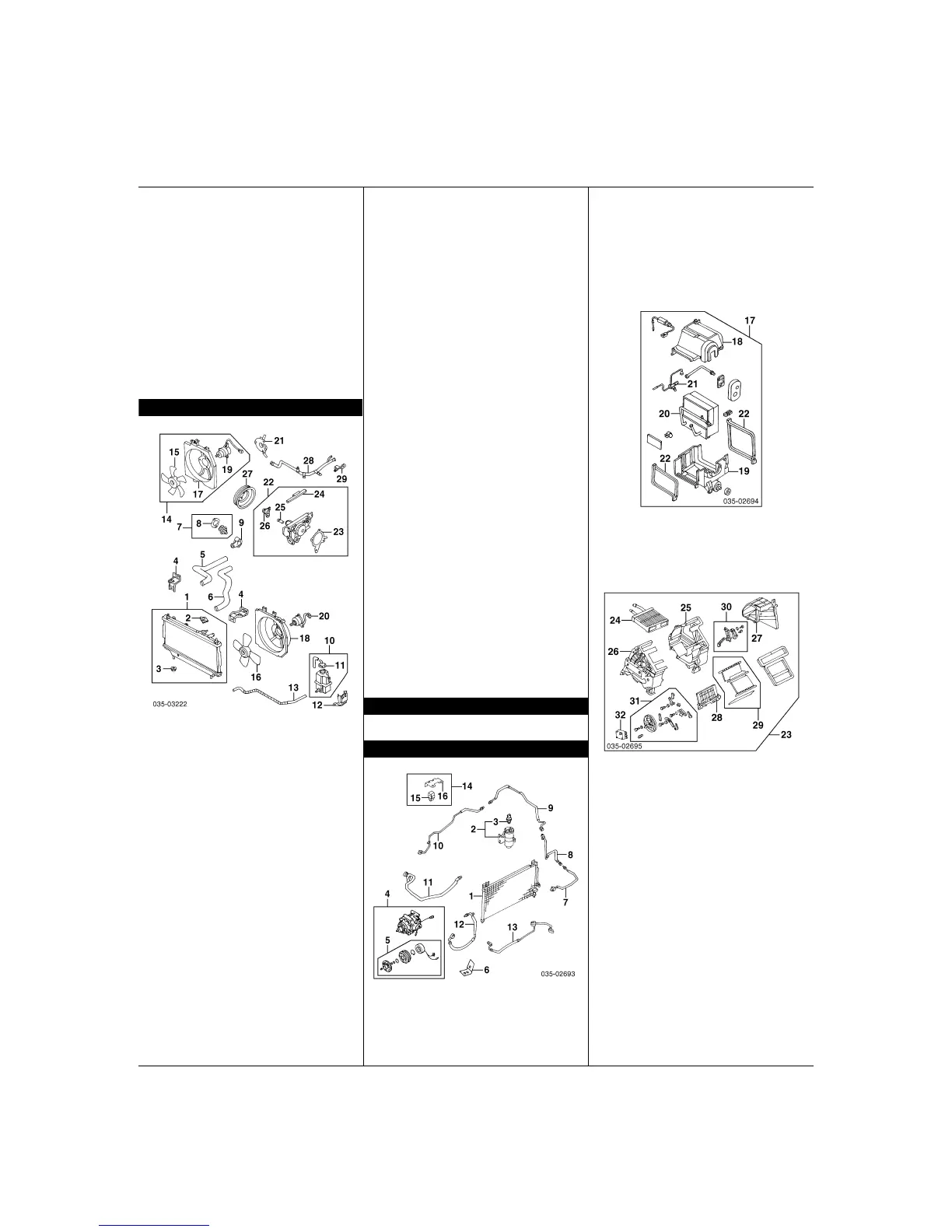

COOLING
1
Radiator Assy
1.5L Eng
Man Trans B6BF-15-200G
Auto Trans
1995-96
To 2-95 B6BG-15-200F
From 2-95 B6DA-15-200A
1997-98 B6BG-15-200F
1.8L Eng
Man Trans B6BF-15-200G
Auto Trans BPD4-15-200H
2
Cap, Radiator¶
Man Trans B3C7-15-205
Auto Trans D316-15-205
3
Mount, Rubber¶
Man Trans R/L B3P5-YV-SK1
Auto Trans
w/ A/C
1.5L Eng R/L B3P5-YV-SK1
1.8L Eng R/L B6DD-YV-SK1
w/o A/C R/L ZL01-15-202
¶Included w/Radiator Assy
4
Brkt, Radiator
R B6BF-15-240A
L B6BF-15-250A
5
Hose, Rad Upper
95 B6BF-15-186B
96-98 B6BF-15-186B
6
Hose, Rad Lower
1.5L Eng B6BF-15-185A
1.8L Eng BPD3-15-185A
7
Thermostat Assy
SOHC Eng 8AN1-15-171-91
DOHC Eng 95-96 8AB8-15-151
97-98 8ABE-15-171
8
Gasket, Thermostat¶
B621-15-173
¶Included w/Thermostat Assy
9
Cover, Thermostat
95-96 B366-15-172
97-98 B6BF-15-172
10
Tank Assy, Coolant
B6BF-15-350B
11
Cap, Coolant Tank¶
B6BF-15-355A
¶Included w/Coolant Tank Assy
12
Brkt, Coolant Tank
BPX2-15-370
13
Hose, Coolant Tank
B6BF-15-381B
14
Shroud & Fan Assy, Right
w/ A/C
1.5L Eng
USA Z501-15-035
Canada-Serviced by Components
1.8L Eng-Serviced by Components
Blade, Fan
15 Right
w/ A/C
1.5L Eng
USA-Serviced w/Right Fan & Shroud Assy
Canada N.A.
1.8L Eng B595-15-140
16 Left
1.5L Eng E358-15-140
1.8L Eng
Man Trans E358-15-140
Auto Trans FEH5-15-140
Shroud, Fan
17 Right
w/ A/C
1.5L Eng
USA-Serviced w/Right Shroud & Fan Assy
Canada N.A.
1.8L Eng B595-15-210A
18 Left
1.5L Eng B6BF-15-210A
1.8L Eng
Man Trans B6BF-15-210A
Auto Trans BPD3-15-210A
Motor, Fan
19 Right
w/ A/C
1.5L Eng
USA-Serviced w/Right Shroud & Fan Assy
Canada N.A.
1.8L Eng 95-96 B595-15-150A
97-98 B595-15-150A
20 Left
1.5L Eng B6DN-15-150
1.8L Eng
Man Trans 95-96 B6DN-15-150
97-98 B6DA-15-150
Auto Trans 95-96 BPD7-15-150
97-98 BPH7-15-150
21
Cover, Fan
Right
w/ A/C
1.5L Eng Z501-15-028
1.8L Eng BPD3-15-028
22
Pump Assy, Water
1.5L Eng 95 8ABB-15-010A
96-98 ZZM5-15-010
1.8L Eng 8ABB-15-010A
23
Gskt, Water Pump¶
B6BF-15-116
24
Seal, Water Pump¶
B660-10-543B
25
Pin, Set¶
F801-15-713
26
Boss, Pulley¶
E301-15-117
¶Included w/Water Pump Assy
27
Pulley, Water Pump
B3C7-15-131
28
Pipe, By-Pass
1.5L Eng Z509-15-290
1.8L Eng BPD7-15-290
29
Clip, By-Pass Pipe
B69F-15-286
Belt, Drive¶
B6BF-18-381-9U
¶Order by Application
A/C REFRIGERANT CAPACITIES
A/C R-134a Refrigerant Capacity
1995-98: 21.2 Ozs (1.33 Lbs)
A/C /HEATER
1
Condenser
BC1M-61-480
2
Receiver/Drier Assy
BC1M-61-500A
3
Switch, Pressure¶
GB6H-61-503
¶Included w/Receiver/Drier Assy
4
Compressor Assy
BC1M-61-450A
5
Clutch Set, Magnet¶
BC1M-61-L10
¶Included w/Compressor Assy
6
Brkt, Compressor
1.5L Eng B6BF-15-811
1.8L Eng BPD3-15-811
7
Pipe, Condenser
95-96 BC1M-61-465
97-98 BC1M-51-465B
8
Pipe, Receiver/Drier
BC1M-61-466
9
Pipe, Intermediate
BC1M-61-467A
10
Pipe, Evaporator
BC1M-61-468B
11
Pipe, Compressor
BC1M-61-469B
12
Hose, Low Pressure
BC1M-61-462A
13
Hose, High Pressure
BC1M-61-4G0
14
Relay Assy
BC4C-61-690A
15
Relay, Cooling Fan¶
H450-67-740
16
Bracket, Relay¶
BC4C-61-695
¶Included w/Relay Assy
17
Evaporator Assy
BC1M-61-520A
18
Case, Evap Upper¶
BC1M-61-J01
19
Case, Evap Lower¶
BC1M-61-J02
20
Core, Evaporator¶
BC1M-61-J10
21
Valve, Expansion¶
BC1M-61-J14
22
Seal, Evaporator¶
RBC1M-61-J04
LBC1M-61-J05
¶Included w/Evaporator Assy
23
Heater Assy
1995-96
Man Control 95 BC1M-61-130G
96 BC1M-61-130G
Elect Controls BC1N-61-130F
1997-98 BC1M-61-130G
24
Core, Heater¶
B01A-61-A10
Case, Heater¶
25 Passenger Side BC1M-61-A02A
26 Driver Side BC1M-61-A01A
27
Duct, Case¶
BC1M-61-A03
28
Damper, Air Mix¶
BC1M-61-A1Y
29
Damper, Heater Core¶
BC1M-61-A1XA
30
Link Kit, Temp¶
Man Control BC1M-61-A20
Elect Controls BC1N-61-A20
31
Link Kit, Mode¶
BC1M-61-A30A
32
Actuator, Mode¶
Elect Controls BC1N-61-A70
¶Included w/Heater Assy
Illustration Located in Next Column
33
Blower Assy
1995-96
Man Control BG1P-61-140B
Elect Controls BC1N-61-140E
1997-98 BG1P-61-140B
34
Motor/Fan, Blower¶
95-96 BCYM-61-14Z
97-98 BG1P-61-B10
35
Case, Heater Upper¶
1995-96
Man Control BC1M-61-B01B
To Next Page
