Mazda MIATA - Wiper System

MAZDA MIATA 1999-04
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.

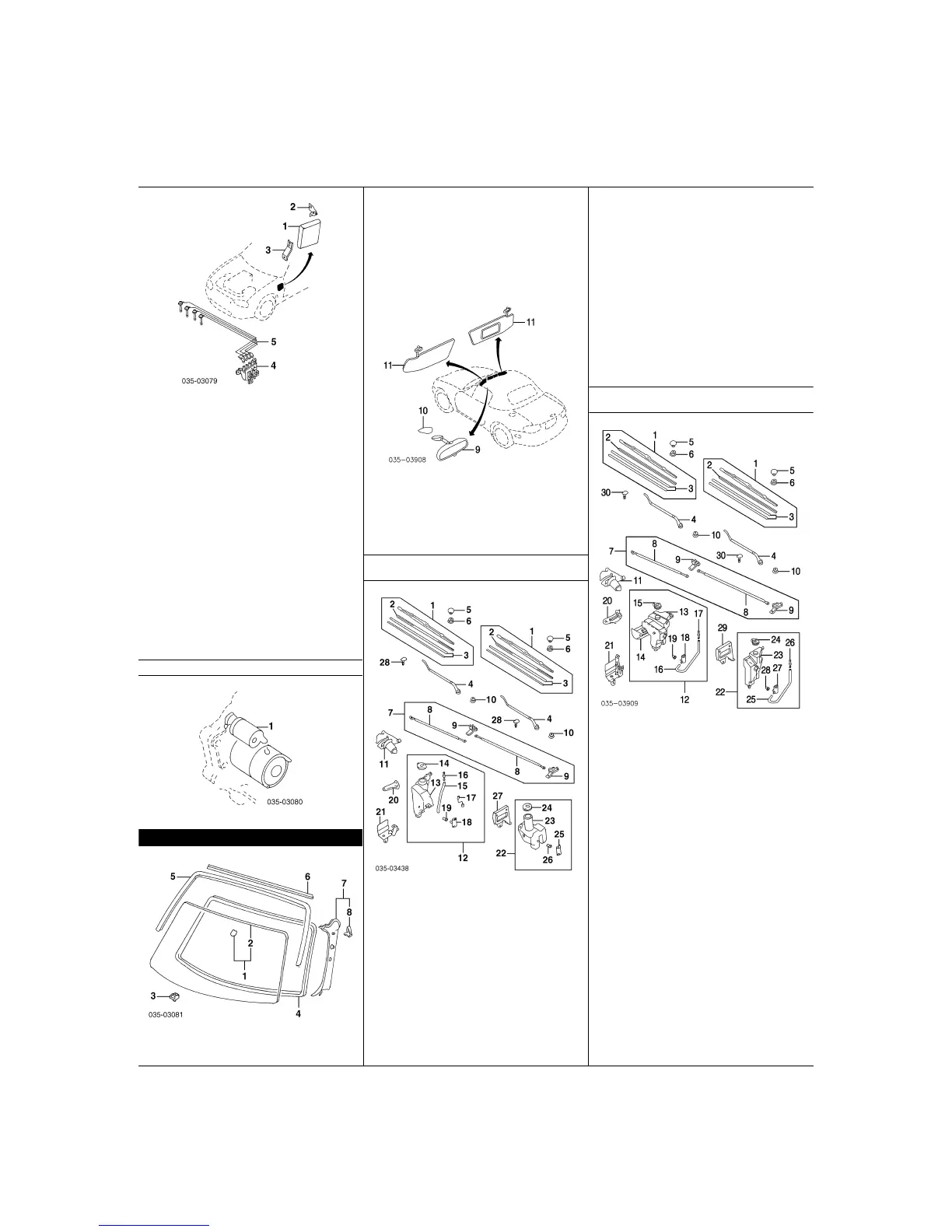

243
madpl1_g01_
Page 243—April 22, 2004—13:34:18—Version Manufacturer
1999-00
w/Calif Emission
Man Trans BP4Y-18-881R-0C
Auto Trans BP4Z-18-881R-0C
w/o Calif Emission
Man Trans BP4W-18-881R-0C
Auto Trans BP4X-18-881R-0C
2001-02
Man Trans BP6F-18-881R-0G
Auto Trans BP6H-18-881R-0G
2003
Man Trans
w/Immobilizer BP7F-18-881G
w/o Immobilizer BP7J-18-881A
Auto Trans BP7G-18-881G
2004
w/Turbo
w/Calif Emission BP8J-18-881B
w/o Calif Emission BP8J-18-881A
w/o Turbo
Man Trans
w/Immobilizer BP7V-18-881D
w/o Immobilizer BP7X-18-881D
Auto Trans BP7W-18-881D
2
Bracket, Upr Module BP4W-18-882
3
Bracket, Lwr Module BP4W-18-883
4
Coil & Igniter
1999-00 BP4W-18-10XB
2001-04 (2) BP6D-18-100A
5
Wire Set, Ignition
1999-00 0000-18-121A
2001-04
No. 1 BP6D-18-140A
No. 2 BP6E-18-140A
STARTER
1 Starter BPD4-18-400R-00
WINDSHIELD
1 Glass Assy, Windshield
Mazda NC11-63-900A
2
Base, Rear View Mirror¶ BC1C-69-240
¶Included w/Windshield Glass Assy
3
Spacer, Glass R/L E040-50-891
4
Dam, Windshield
3550mm NA01-50-894A
3960mm GA7B-50-899
5
Moulding, Reveal 99-03 NA01-50-601A
04 NC82-50-601
6
Protector, Moulding DX50-50-6B1
7
Trim Assy, Pillar 99-02 R NC10-68-160A-02
L NC10-68-170A-02
03-04 R N077-68-160A-02
L N077-68-170A-02
8
Clip, Trim¶ (2/Side) R/L GJ12-68-865
¶Included w/Pillar Trim Assy
9
Mirror, Rear View
w/Turbo
Gray NE45-69-22X-01
Red NE45-69-22X-87
w/o Turbo HG82-69-220A
10
Base, Rear View Mirror BC1C-69-240
11
Visor, Sun 99-03 R NC10-69-270B-02
L NC11-69-320B-02
04 R NC10-69-270B-02
L NE02-69-320-02
WIPER SYSTEM
1999-00
1 Blade Assy, Wiper R NC11-67-330-9U
L NC10-67-330-9U
2
Insert, Wiper¶ R/L B16B-67-333
3
Plate, Backing¶ R NA10-67-332
L NC33-67-332
¶Included w/Wiper Blade Assy
4
Arm, Wiper R NC11-67-321
L NC10-67-321
5
Cover, Wiper Arm R/L LA01-67-395C
6
Nut, Wiper Arm R/L 9090-10-801
7
Link Assy, Wiper
To VIN 100063 NC10-67-360A
From VIN 100063 NC10-67-360B
8
Link, Wiper¶
To VIN 100063 R NC10-67-361
L NC10-67-362
From VIN 100063 R NC10-67-361A
L NC10-67-362
9
Pivot, Wiper¶ R NC10-67-363A
L NC10-67-364A
¶Included w/Wiper Link Assy
10
Nut, Wiper Link R/L 9994-00-601
11
Motor, Wiper
w/Cold Climate Spec NA04-67-340D
w/o Cold Climate Spec NA01-67-340E
12
Tank Assy, Washer
w/ABS NC14-67-480D
13
Tank, Washer¶ NC14-67-481A
14
Cap, Tank¶ GJ21-67-483
15
Pipe, Nozzle¶ NC17-67-501B
16
Joint, Hose¶ (2) DB05-67-502
17
Cord¶ NC14-67-5D9A
18
Pump, Washer¶ S084-76-672
19
Grommet, Pump¶ S084-76-677
¶Included w/Washer Tank Assy w/ABS
20
Bracket, Upper Tank NC17-67-520B
21
Bracket, Lwr Tank NC18-67-520A
22
Tank Assy, Washer
w/o ABS NA01-67-480B
23
Tank, Washer¶ NA01-67-481
24
Cap, Tank¶ UB39-51-815
25
Pump, Washer¶ S084-76-672
26
Grommet, Pump¶ S084-76-677
¶Included w/Washer Tank Assy w/o ABS
27
Bracket, Tank NC10-67-521
28
Nozzle, Washer R NC10-67-510
L NC11-67-510
WIPER SYSTEM
2001-04
1 Blade Assy, Wiper R NC11-67-330-9U
L NC10-67-330-9U
2
Insert, Wiper¶ R/L B16B-67-333
3
Plate, Backing¶ R NA10-67-332
L NC33-67-332
¶Included w/Wiper Blade Assy
4
Arm, Wiper R NC11-67-321
L NC10-67-321
5
Cover, Wiper Arm R/L LA01-67-395C
6
Nut, Wiper Arm R/L 9090-10-801
7
Link Assy, Wiper NC10-67-360B
8
Link, Wiper¶ R NC10-67-361A
L NC10-67-362
9
Pivot, Wiper¶ R NC10-67-363A
L NC10-67-364A
¶Included w/Wiper Link Assy
10
Nut, Wiper Link R/L 9994-00-601
11
Motor, Wiper
w/Cold Climate Spec NA04-67-340D
w/o Cold Climate Spec NA01-67-340E
12
Tank Assy, Washer
Large NC79-67-480C
13
Tank, Washer¶ NC79-67-481A
14
Insulator, Tank¶ NC15-67-454A
15
Cap, Tank¶ GJ21-67-483
16
Pipe, Nozzle¶ NC79-67-501A
17
Joint, Hose¶ (2) DB05-67-502
18
Pump, Washer¶ S084-76-672
19
Grommet, Pump¶ S084-76-677
¶Included w/Washer Tank Assy
20
Bracket, Upper Tank NC17-67-520B
21
Bracket, Lwr Tank NC78-67-520
22
Tank Assy, Washer
Standard
w/ABS NC78-67-480D
w/o ABS NA01-67-480B
23
Tank, Washer¶
w/ABS NC78-67-481A
w/o ABS NA01-67-481
24
Cap, Tank¶ UB39-51-815
25
Pipe, Nozzle¶
w/ABS NC15-67-501
26
Joint, Hose¶
