MAZDA MIATA 1999-04
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
240
madpl1_g01_
Page 240—April 22, 2004—13:34:13—Version Manufacturer
STEERING PUMP Cont’d
w/Turbo N115-32-470B
w/o Turbo NC10-32-470A

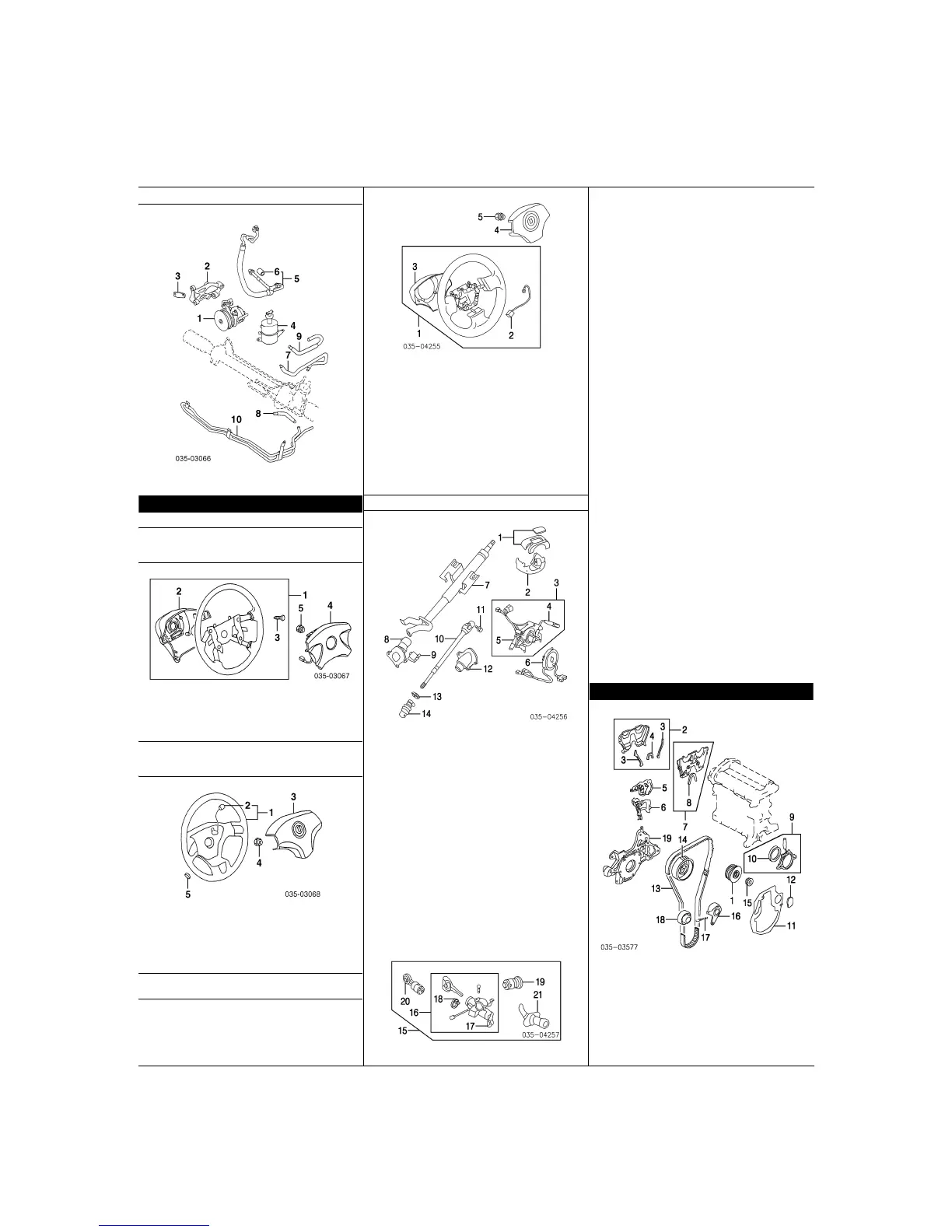

STEERING WHEEL/COLUMN
WHEEL & TRIM
1999-00
URETHANE WHEEL
1
Wheel Assy, Steering
GE8K-32-980C
2
Cover, Wheel¶
GE7T-32-049
3
Bolt, Wheel¶
GE7T-32-750
¶Included w/Steering Wheel Assy
4
Module, Driver Air Bag-See Air Bag System Section
5
Nut, Strg Wheel
9994-81-200
WHEEL & TRIM
1999-00
LEATHER WRAPPED WHEEL
1
Wheel Assy, Steering
Type A N065-32-980
Type B NC10-32-980C
2
Harness, Strg Wheel¶
NC10-32-9YX
¶Included w/Steering Wheel Assy
3
Module, Driver Air Bag-See Air Bag System Section
4
Nut, Strg Wheel
9994-81-200
5
Cap, Cover
BC1D-32-9L1
WHEEL & TRIM
2001-04
Illustration Located in Next Column
1
Wheel Assy, Steering
2001-03
Leather Wrapped B25H-32-980A
Woodgrain N066-32-980
2004
w/Turbo N115-32-980
w/o Turbo NE02-32-980
2
Harness, Strg Wheel¶
2001-03
Leather Wrapped Wheel B25E-32-9YX
Woodgrain Wheel NC10-32-9YX
2004-Serviced w/Steering Wheel Assy
3
Cover, Wheel¶
2001-03-Serviced w/Steering Wheel Assy
2004 NE12-32-049
¶Included w/Steering Wheel Assy
4
Module, Driver Air Bag-See Air Bag System Section
5
Nut, Strg Wheel
9994-81-200
COLUMN
1
Cover, Upper Column
NC10-60-220
2
Cover, Lower Column
NC10-60-231A
3
Switch Assy, Combination
w/Cruise Control NC11-66-120A
w/o Cruise Control NC10-66-120A
4
Switch, Wiper (a)
1997-03
w/Cruise Control NC11-66-128
w/o Cruise Control NC10-66-128
2004 NC10-66-135
5
Switch, Headlamp (a)
NC11-66-122
(a) Included w/Combination Switch Assy
6
Clockspring-See Air Bag System Section
7
Shaft, Upper
NC10-32-100D
8
Cover, Upr Joint
NA75-32-AZ1
9
Cover, Lwr Joint
NA01-32-AZ2A
10
Shaft, Intermediate
1999-00
Man Strg NC11-32-090D
Pwr Strg NC10-32-090D
2001-03
Man Trans NC11-32-090D
Auto Trans NC10-32-090D
2004 NC10-32-090D
11
Bolt, Shaft (3)
B455-32-099A
12
Cover, Lever
NC10-32-210
13
Grommet
NA01-32-217
14
Joint, Steering
NC10-32-850
15
Lock Set, Complete
1999-00 (b)
Man Trans NC93-09-010D
Auto Trans NC13-09-010E
2001-02 (b)
Man Trans
w/Immobilizer NCY3-76-29X
w/o Immobilizer NCY0-76-290
Auto Trans
w/Immobilizer NCY6-76-29X
w/o Immobilizer NCY3-76-290
2003
Man Trans
Man Locks
w/Immobilizer NC73-09-010A
w/o Immobilizer NC75-09-010
Pwr Locks
w/Immobilizer NC72-09-010D
w/o Immobilizer NC74-09-010
Auto Trans
w/Immobilizer NC77-09-010D
w/o Immobilizer NC81-09-010
2004
Man Trans
Man Locks
w/Immobilizer NE02-09-010
w/o Immobilizer NE04-09-010
Pwr Locks
w/Immobilizer NE01-09-010
w/o Immobilizer NE03-09-010
Auto Trans
w/Immobilizer NE07-09-010
w/o Immobilizer NE08-09-010
(b) Order by Application
16
Lock Assy, Ignition¶
1999-00
Man Trans NCY0-76-290
Auto Trans NCY3-76-290
2001-03
Man Trans
w/Immobilizer NCY3-76-29X
w/o Immobilizer NCY0-76-290
Auto Trans
w/Immobilizer NCY6-76-29X
w/o Immobilizer NCY3-76-290
2004
Man Trans
w/Immobilizer NEY1-76-29X
w/o Immobilizer NEY3-72-290
Auto Trans
w/Immobilizer NEY7-76-29X
w/o Immobilizer NY15-76-290
17
Switch, Ignition¶ (a)
N053-66-151
18
Coil, Immobilizer¶ (a)
2001-03
Man Trans 01-03 GG2A-66-938
Auto Trans 01-03 GG2C-66-938
2004-Serviced w/Ignition Lock Assy
(a) Included w/Ignition Lock Assy
19
Cylinder, Glove Box¶-See Instrument Panel Section
20
Cylinder, Door Lock¶-See Front Door Section
21
Cylinder, Luggage Lid Lock¶-See Luggage Lid Section
¶Included w/Complete Lock Set
ENGINE/TRANS
1
Pulley, Crankshaft
Hillsdale Brand BP4W-11-401
NOK Brand BPD4-11-401
2
Cover Assy, Upper Timing
1999-00 B61P-10-510
2001-03 BP6D-10-511
2004
w/Turbo B61P-10-510
w/o Turbo BP6D-10-511
3
Gskt, Upr Timing Cover¶
Side
1999-00 R B61P-10-514
To Next Page
