6 Bracket, Radiator
w/Turbo R BP8J-15-240
L BP8J-15-250
w/o Turbo R BP4W-15-241
L BP4W-15-250
7
Brkt, Upr Bumper Stay R/L NC10-53-1D0A
8
Brkt, Lwr Bumper Stay R/L NC10-52-12X
9
Cover, Under-See Engine Under Cover Section
SIDE
1 Apron Assy
1999-03 R NCY0-53-200B
L NCY0-54-200B
2004
To 8-2-03 R NCY0-53-200B
L NCY0-54-200B
From 8-2-03 R NCY0-53-200D
L NCY0-54-200D
2
Panel, Apron¶ R N067-53-210A
L N067-54-210C
3
Frame Assy, Inner Apron¶ 99-00 R N066-53-31X
L N066-54-31X
01-04 R N066-53-31X
L N066-54-31X
4
Rail, Upper Front¶ (a) R NC10-53-320B
L NC10-54-320
5
Rail, Otr Frame¶ (a) R NC10-53-35XA
L NC10-54-35XA
6
Rail, Inr Frame¶ (a) R NC10-53-310
L NC10-54-310
7
Bracket, Stabilizer¶ (a) 99-00 R NA01-53-380
L NA01-54-380B
01-04 R N067-53-330
L N067-54-330
8
Reinf, Tie Down Hook¶ (a) R NA01-53-32XB
L NA01-54-32XC
(a) Included w/Inner Apron Frame Assy
9
Reinforcement¶ R NC10-53-390A
L NC10-54-390A
10
Gusset, Frame¶ R NA01-53-370A
L NA01-54-370A
11
Rail, Upper Rear¶ R NA01-53-37ZB
L NA01-54-37ZD
12
Box, Torque¶ R NA01-53-391
L NA01-54-391
¶Included w/Apron Assy
13
Reinf, Apron R NA01-53-591
L NA01-54-590
14
Hook, Tie-Down R NA01-56-34XD
L NA01-56-34YD
15
Bar, Susp Strut 99-00 R N044-56-49Y
L N044-56-49X
01-04 N067-56-49XA
16
Plate, Strut Bar 99-00 R/L N044-56-492-3
01-04 R N067-56-49ZA
L N067-56-49YA
17
Bolt, Strut Bar R/L N021-56-4K1A
18
Joint, Strut Bar (2) 99-00 N021-56-494A
19
Nut, Strut Bar 99-00 R N022-56-496A
L N021-56-499A

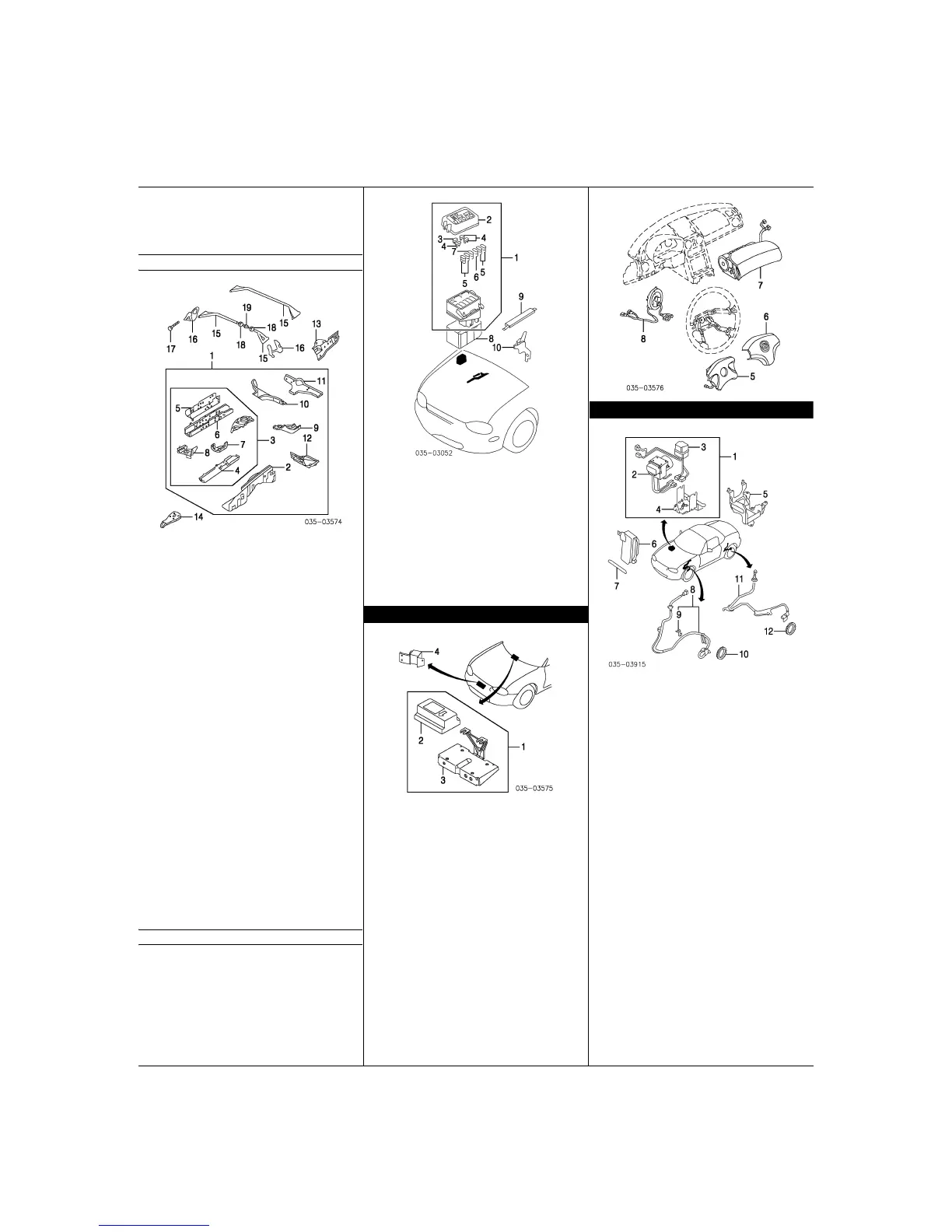

ELECTRICAL COMPONENTS
Illustration Located in Next Column
1
Block Assy, Main Fuse
1999-00 NC10-66-760
2001-03 NC82-66-760A
2004
w/Turbo NE45-66-760
w/o Turbo NE01-66-760
2
Cover, Upper Block¶
1999-00 NC10-66-762
2001-03 NC82-66-762
2004
w/Turbo NE45-66-762
w/o Turbo NE01-66-762
Fuse¶ (a)
3 15 Amp 0000-11-0015
4 20 Amp (3) 0000-11-0020
5 30 Amp (4) H115-67-099
6 40 Amp H116-67-099
7 80 Amp H117-67-099
¶Included w/Main Fuse Block Assy
(a) Order by Application
8
Cover, Lower Block NC10-66-767
9
Protector, Harness NC10-67-P80
10
Bracket, Harness NC10-67-B81A
AIR BAG SYSTEM
1 Control Assy, Air Bag Diagnosis 99-00 NC10-57-K3XB
01-04 N066-57-K3XC
2
Control, Air Bag Diagnosis¶
1999-00-Serviced w/Air Bag Diagnosis Control Assy
2001-04 N066-57-K30C
3
Bracket, Air Bag Control¶ N034-57-KX0A
¶Included w/Air Bag Diagnosis Control Assy
4
Sensor, Air Bag 01-04 N066-57-K1XA
Illustration Located in Next Column
Module, Driver Air Bag
5 Urethane Wheel 99-00 NC10-57-K00B-00
6 Leather Wrapped Wheel
1999-00 N055-57-K00D
2001
To 6-1-01 B28V-57-K00
From 6-1-01 B33M-57-K00-00
2002-04 B33M-57-K00-00
7
Module, Pass Air Bag NC10-57-K70D-02
8
Clockspring
1999-00 GE4T-66-CS0A
2001-04
Alps Brand N066-66-CS0
Tokai Brand GE4T-66-CS0A
Pretensioner, Seat Belt¶-See Seat Belts Section
¶Serviced w/Front Seat Belt
ABS/BRAKES
1 Hydraulic Assy, ABS 99-00 NC14-43-780A
01-03 NC78-43-780
04 N068-43-7A0
2
Hydraulic Unit¶
1999-00 NB86-43-7A0B
2001-03 N068-43-7A0
2004-Serviced w/ABS Hydraulic Assy
3
Relay¶
1999-00 NB86-67-740B
2001-04-Serviced w/Hydraulic Unit
4
Bracket, Upr ABS¶ 99-00 NC14-43-320A
01-04 NC78-43-320
¶Included w/ABS Hydraulic Assy
5
Bracket, Lwr ABS 99-00 NC14-43-310
01-04 NC78-43-310
6
Control Unit, ABS NC14-67-650
7
Bracket, ABS Control NC10-67-9B2A
8
Sensor Assy, Front ABS
1999 R/L NA23-43-70XE
2000
To VIN 127064 R NA23-43-70XE
L NA23-43-73XE
From VIN 127064 R NC14-43-70X
L NC14-43-73XA
2001-04 R NC14-43-70X
L NC14-43-73XA
9
Clip, Front Sensor¶ R/L NA23-43-705
¶Included w/Front ABS Sensor Assy
10
Ring, Frt ABS Sensor¶-See Front Suspension Section
¶Included w/Hub Assy w/ABS-listed in Front Suspension Section
11 Sensor, Rear ABS 99-00 R NA23-43-71YB
L NA23-43-72YB
01-04 R N068-43-71YB
L N068-43-72YB
12
Ring, Rear ABS Sensor R/L BC4C-33-471
Illustration Located in Next Column
13
Cylinder, Master
1999-00
w/ABS NC15-43-400
w/o ABS NC10-43-40Z
2001-04 NC78-43-400B
14
Holder, Master Cylinder
