MAZDA MIATA 1999-04
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
236
madpl1_g01_
Page 236—April 22, 2004—13:34:06—Version Manufacturer

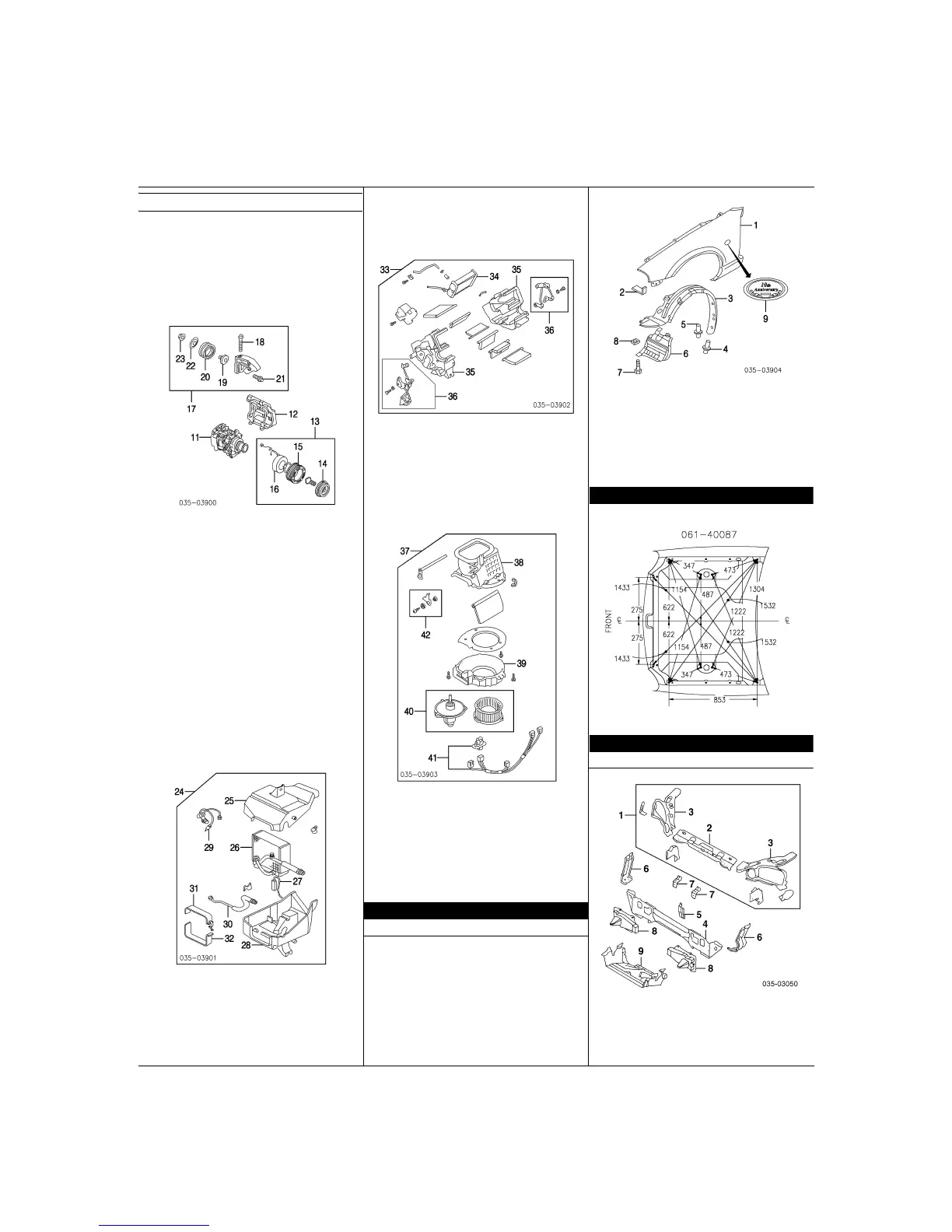

A/C /HEATER/VENTILATION Cont’d
2001-04 Cont’d
6
Tube, Upr Condenser
Optional 99-03 NC72-61-46ZA
04 NC72-61-464A
Standard 99-03 NC73-61-464
04 NC73-61-464
7
Tube, Lwr Condenser
NC72-61-465A
8
Hose Assy, Drain
NC72-61-52X
9
Hose, Drain¶
NC72-61-526
10
Grommet¶
LB46-61-558A
¶Included w/Drain Hose Assy
11
Compressor
1999-03 NC72-61-K00
2004
To 8-2-03 F151-61-K00
From 8-2-03 F151-61-K00A
12
Bracket, Compressor
99-03 BP6F-15-810
04 BP7V-15-810A
13
Clutch Assy, Compressor
1999-03 N026-61-L10A
2004
To 8-2-03 N101-61-L10
From 8-2-03 N101-61-L10A
14
Armature¶
1999-03 FD15-61-L11
2004-Serviced w/Compressor Clutch Assy
15
Pulley, Clutch¶
1999-03 N026-61-L12
2004-Serviced w/Compressor Clutch Assy
16
Coil¶
1999-03 FD15-61-L13
2004-Serviced w/Compressor Clutch Assy
¶Included w/Compressor Clutch Assy
17
Idler Assy
B63H-15-930C
18
Bolt, Adjust¶
B611-15-966
19
Spacer¶
R230-15-933
20
Pulley, Idler¶
B63H-15-940A
21
Shaft, Pulley¶
B611-15-932
22
Cover, Lever¶
R230-15-934
23
Nut, Flange¶
9994-01-000
¶Included w/Idler Assy
Belt, Drive-See Steering Pump Section
24
Evaporator Assy
2001
To 2-1-01 NC72-61-520D
From 2-1-01 NC72-61-520E
2002-04 NC72-61-520E
25
Case, Upper¶
NC72-61-J01
26
Core, Evaporator¶
NC72-61-J10
27
Sensor, Valve¶
99-03 N053-61-J22A
04 N053-61-J14A
28
Case, Lower¶
NC72-61-J02
29
Valve, Expansion¶
99-03 N053-61-J15
04 N053-61-J14A
30
Pipe, Evaporator¶
99-03 N053-61-J15
04 NC72-61-J15
31
Plate, Upper Seal¶
N001-61-529A
32
Plate, Lower Seal¶
N001-61-52YB
¶Included w/Evaporator Assy
33
Heater Assy
w/ A/C NC72-61-130B
w/o A/C NC11-61-130E
34
Core, Heater¶
NC10-61-A10A
35
Case, Heater¶
R NC10-61-A01
L NC10-61-A02A
36
Link, Mode¶
w/ A/C R NA01-61-A20
L NA01-61-A30A
w/o A/C R NA01-61-A20
L NC11-61-A30A
¶Included w/Heater Assy
37
Blower Assy
w/ A/C NC72-61-140
w/o A/C NC11-61-140A
38
Case, Upper Blower¶
w/ A/C NC72-61-B01
w/o A/C NA75-61-B01
39
Case, Lower Blower¶
w/ A/C NC72-61-B02
w/o A/C NA01-61-B02
40
Motor, Blower¶
BR70-61-B10
41
Resistor, Blower¶
NA01-61-B15
42
Link, Heater¶
NA01-61-B20
¶Included w/Blower Assy
FRONT FENDER
SHEET METAL/EXTERIOR TRIM
Illustration Located in Next Column
1
Fender
R NCY0-52-110F
L NCY0-52-210F
2
Tape, Seal
R/L GA2A-56-092
3
Liner, Fender
R NC10-56-131F
L NC10-56-141F
4
Fastener, Liner
R/L NA01-56-145
5
Clip, Liner (17/Side)
R/L BC1D-56-145
6
Shield, Splash
1999-00 R NC10-56-132E
L NC10-56-142D
2001-03 R N067-56-132
L N067-56-142
2004
w/Turbo R/L N115-56-13ZA
w/o Turbo R/L N067-56-142
7
Bolt, Splash Shield (3/Side)
R/L 9CF6-00-520B
8
Nut, Bolt (3/Side)
R/L B455-56-135
9
Emblem (Adhesive)¶
"10th Anniversary" R/L N065-51-761B
¶Contact Dealer for Information
UNDERHOOD DIMENSIONS
FRONT INNER STRUCTURE
FRONT
1
Support Assy, Radiator
N067-53-100B
2
Bar, Upper Tie¶
N067-53-150A
3
Panel, Side Support¶
R NCY0-53-120B
L NCY0-54-120B
¶Included w/Radiator Support Assy
4
Bar, Lower Tie
N067-53-16XB
5
Support, Latch
N053-56-221C
To Next Page
