MAZDA MIATA 1999-04
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
239
madpl1_g01_
Page 239—April 22, 2004—13:34:11—Version Manufacturer

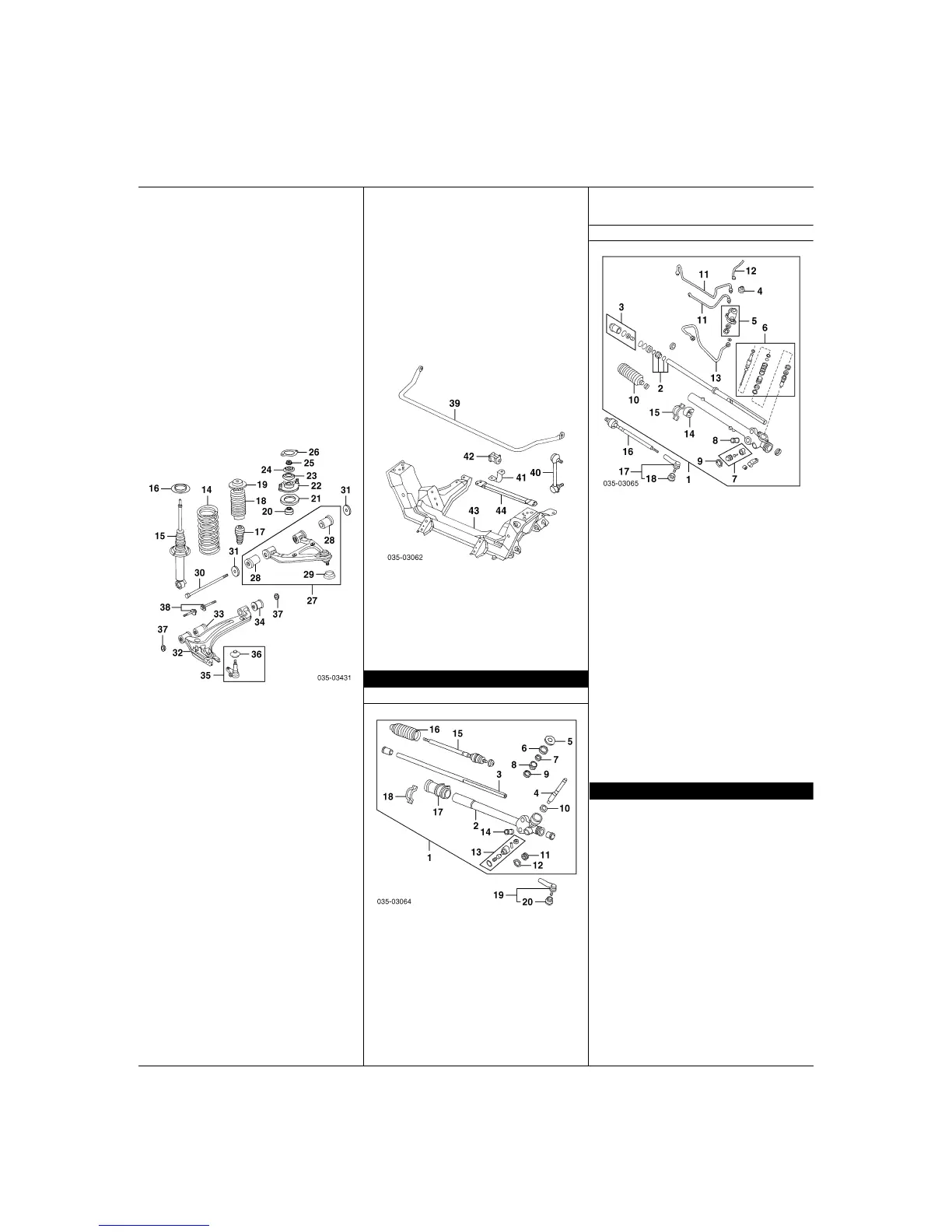

12
Knuckle, Steering
w/ABS
1999-00 R NC14-33-021A
L NC14-33-031A
2001-03 R NE45-33-021
L NE45-33-031
2004
To 10-1-03 R NE45-33-021
L NE45-33-031
From 10-1-03 R NE45-33-021
L NE45-33-031
w/o ABS
1999-03 R N115-33-021
L NC10-33-031A
2004
To 10-1-03 R N115-33-021
L NC10-33-031A
From 10-1-03 R N115-33-021
L N115-33-031
13
Shield, Splash
1999-00 R NA75-33-261
L NA75-33-271
2001
Std Susp R NA75-33-261
L NA75-33-271
Sport Susp R N067-33-261A
L N067-33-271A
2002-04
Std Susp R NC85-33-260A
L NC85-33-270A
Sport Susp R NC82-33-260A
L NC82-33-270A
14
Spring, Coil
1999-00
Std Susp R/L NC12-34-011B
Sport Susp R/L NC10-34-011C
2001-03
Std Susp
Man Trans R/L NC10-34-011C
Auto Trans R/L N068-34-011A
Sport Susp¶ R/L N067-34-011A
2004
Std Susp
Man Trans R/L NC10-34-011C
Auto Trans R/L N068-34-011A
Sport Susp
w/Turbo R/L NE45-34-011A
w/o Turbo R/L N067-34-011A
15
Strut
1999-00
w/ABS R/L NC14-34-700C
w/o ABS
Std Susp R/L NC12-34-700D
Sport Susp R/L NC10-34-700C
2001-03
Std Susp
Man Trans R/L N066-34-700
Auto Trans R/L N068-34-700
Sport Susp¶ R/L N067-34-700
2004
Std Susp R/L N066-34-700
Sport Susp¶
w/ABS R/L NE10-34-700
w/o ABS R/L NE02-34-700
¶Order by Application
16
Rubber, Mounting
R/L NC10-28-0A3A
17
Stopper, Bumper
R/L NC10-34-111
18
Boot, Dust
R/L NC10-28-015A
19
Washer
R/L NC10-28-777
20
Bushing, Lower
R/L NC10-28-776
21
Seat, Spring
R/L NC10-28-012B
22
Insulator, Mount
R/L NC10-28-340C
23
Bushing, Upper
R/L NC10-28-775
24
Retainer, Strut
R/L NC10-28-774
25
Nut, Flange
R/L D061-28-7A1
26
Gasket, Mount
R/L G030-28-013A
27
Arm Assy, Upper Control
w/ABS 99-00 R NC14-34-200A
L NC14-34-250A
01-04 R N068-34-200
L N068-34-250
w/o ABS 99-00 R NC10-34-200
L NC10-34-250
01-04 R N066-34-200
L N068-34-250
28
Bushing, Upper Cont Arm¶
Front/Rear (2/Side) R/L NC10-34-480
29
Seal, Dust¶
R/L NA01-34-548
¶Included w/Upper Control Arm Assy
30
Bolt, Upper Arm
R/L NA01-34-112
31
Washer (2/Side)
R/L NA01-34-117A
32
Arm, Lower Control
R N066-34-310
L N066-34-360
33
Bushing, Frt Lwr Cont Arm
R/L NA01-34-460A
34
Bushing, Rear Lwr Cont Arm
R/L NA01-34-490
35
Joint Assy, Lower Ball
R/L NA01-34-550B
36
Seal, Dust¶
R/L H266-28-448
¶Included w/Lower Ball Joint Assy
37
Plate, Cam (2/Side)
R/L NA80-28-473A
38
Bolt, Adjust (2/Side)
R/L NA80-28-66ZD
39
Bar, Stabilizer
w/Turbo NE45-34-151
w/o Turbo NC10-34-151B
40
Link, Stab Bar
R NC10-34-150
L NC10-34-170
41
Bracket, Stab Bar
R/L FB01-34-155
42
Bushing, Stab Bar
w/Turbo R/L NE45-34-156
w/o Turbo R/L NC10-34-156
43
Crossmember, Susp
NC72-34-800A
44
Bar, Crossmember
99-00 NC10-34-E91A
01-04 N066-34-E90
FRONT STEERING LINKAGE/GEAR
MANUAL
1
Gear Assy, Steering
NC11-32-110A
2
Housing, Gear¶
NC11-32-120
3
Rack, Gear¶
NA01-32-119
4
Pinion¶
NA01-32-122
5
Cover, Lever¶
NC11-32-112
6
Nut, Upper Lock¶
GJ21-32-137
7
Seal, Shaft¶
GJ21-32-126
8
Cover, Gear¶
GJ21-32-136
9
Bearing, Upper¶
0259-32-182
10
Bearing, Lower¶
G030-32-147
11
Nut, Lower Lock¶
S083-32-137
12
Plug, Pinion¶
HE01-32-129
13
Yoke Set, Support¶
GJ21-32-111
14
Rubber, Mounting¶ (2)
NC10-32-123
15
Rod, Tie¶
R/L NA01-32-240
16
Boot, Rack¶
R/L NA01-32-12X
17
Bushing, Mounting¶
NC11-32-124
18
Bracket, Mounting¶
NC10-32-134
¶Included w/Steering Gear Assy
19
End Assy, Tie Rod
R/L 8AN1-32-280
20
Seal, Dust¶
R/L B455-32-279
¶Included w/Tie Rod End Assy
POWER
1
Gear Assy, Steering
1999-03 NC10-32-110R-0H
2004
w/Turbo NE45-32-110A
w/o Turbo NC10-32-110J
2
Rack, Gear¶
w/Turbo N115-32-119
w/o Turbo NC10-32-119
3
Holder, Gear¶
w/Turbo N115-32-154
w/o Turbo NC10-32-154
4
Cover, Lever¶
NC10-32-112
5
Housing, Pinion¶
99-03 NC10-32-126
04 NC10-32-126A
6
Pinion Set¶
1999-00
To VIN 130784 NC10-32-380
From VIN 130784 NC10-32-380A
2001-03 NC10-32-380A
2004 NC10-32-380B
7
Yoke Set, Support¶
NC10-32-11XA
8
Rubber, Mounting¶ (2)
NC10-32-123
9
Nut, Lock¶
B456-32-131
10
Boot, Rack¶
R/L NC10-32-125
11
Pipe, Fluid¶
R NC10-32-45X
L NC10-32-45Y
12
Pipe, Upr Pressure¶
NC10-32-450
13
Pipe, Lwr Pressure¶
NC10-32-460
14
Bushing, Mounting¶
NC10-32-124
15
Bracket, Mounting¶
NC10-32-134
¶Included w/Steering Gear Assy
16
Rod, Tie
R NC10-32-240A
L NC10-32-250A
17
End Assy, Tie Rod
R/L 8AN1-32-280
18
Seal, Dust¶
R/L B455-32-279
¶Included w/Tie Rod End Assy
STEERING PUMP
Illustration Located in Next Column
1
Pump, Steering
1999-03 NC10-32-600R-0B
2004
To 12-1-03 NC10-32-600B
From 12-1-03 NC10-32-600C
2
Bracket, Strg Pump
NA02-32-680
3
Brace, Strg Pump
NC10-32-609
Belt, Drive¶
BPE8-15-909A
¶Order by Application
4
Reservoir, Fluid
NC10-32-690C
5
Hose Assy, Pressure
1999-00 NC10-32-490J
2001-03 N066-32-490
2004
To 11-1-03 N066-32-490
From 11-1-03 N115-32-490
6
Rubber, Mounting¶
BC1D-32-425
¶Included w/Pressure Hose Assy
7
Hose, Upr Return
Man Trans NC10-32-682
Auto Trans NC13-32-682A
8
Hose, Lwr Return
Man Trans NC10-32-683
9
Hose, Suction
NC10-32-688
10
Pipe, Cooling
Man Trans
To Next Page
