Mazda MIATA - Sheet Metal; Interior Trim

MAZDA MIATA 1999-04
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
246
madpl1_g01_
Page 246—April 22, 2004—13:34:22—Version Manufacturer
CENTER CONSOLE Cont’d
2001-04 Cont’d
¶Included w/Console Assy
12
Ashtray N066-64-610B
13
Pad, Shift Boot
Man Trans FB01-64-495
14
Gasket, Boot Plate
Man Trans H001-64-493
15
Insulator, Boot Plate
Man Trans NA01-64-481B

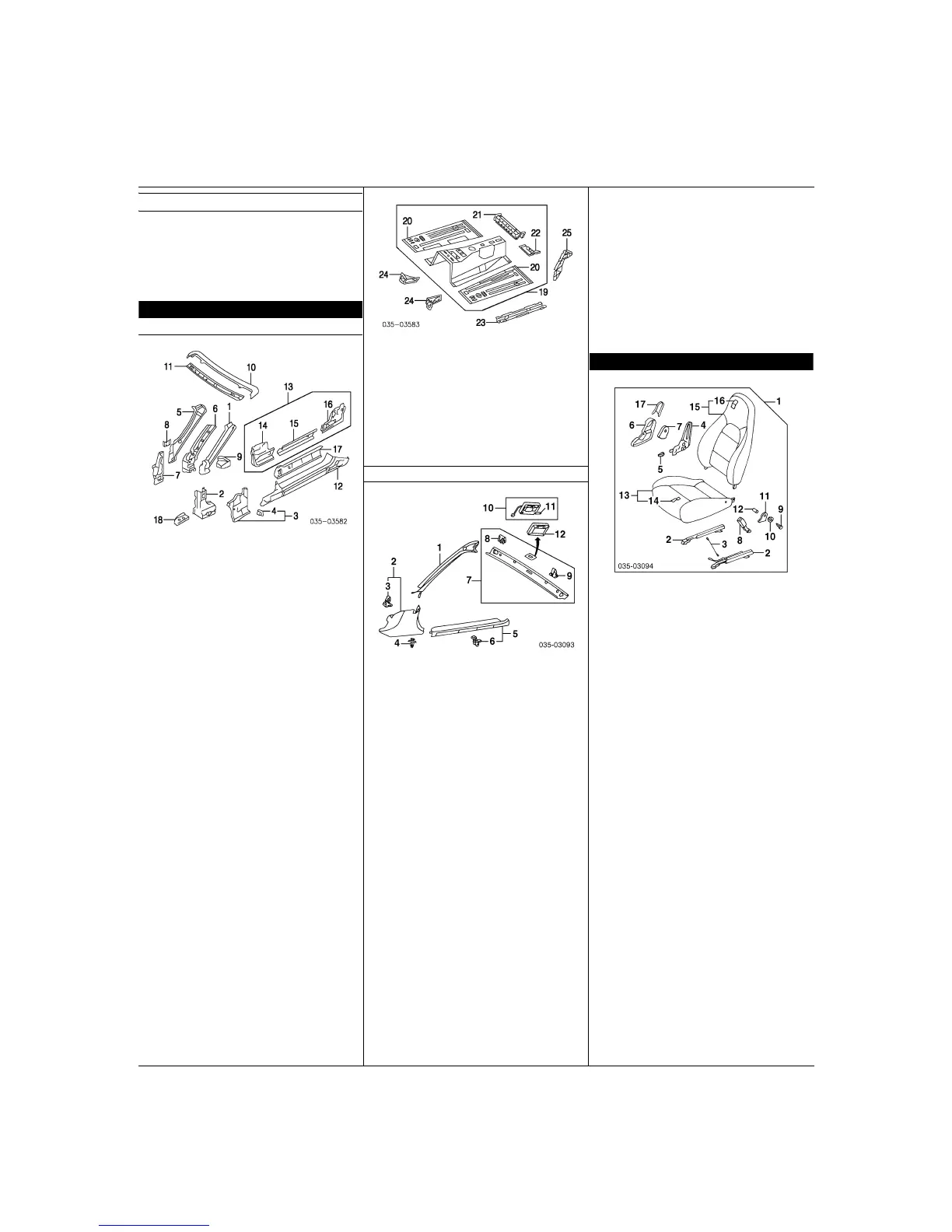

ROCKER/PILLARS/FLOOR
SHEET METAL
1 Pillar, Otr Upr Hinge R N067-70-210
L N067-71-210
2
Reinf, Hinge Pillar R N067-70-280A
L N067-71-280A
3
Panel Assy, Cowl Side 99-00 R NC10-70-020
L NC10-71-020
01-04 R N067-70-020
L N067-71-020
4
Bracket, Fender¶ R/L B092-70-070A
¶Included w/Cowl Side Panel Assy
5
Pillar, Inr Upr Hinge 99-03 R NC10-70-240A
L NC10-71-240A
04 R NC10-70-240B
L NC10-71-240B
6
Pillar, Otr Upr Hinge R N067-70-244
L N067-71-244
7
Pillar, Inr Lwr Hinge R NA01-70-230C
L NA01-71-230C
8
Plate, Nut R NC10-70-20YB
L NC10-71-20YB
9
Brkt, Inst Panel R NA01-70-071A
L NA01-71-071A
10
Header, Front Upper NA01-70-650
11
Header, Front Lower NB38-70-640A
12
Panel, Outer Rocker R NC10-70-270D
L NC10-71-270D
13
Panel Assy, Inner Rocker
1999-00-Serviced by Components
2001-02 R N067-53-971A
L N067-54-971A
2003-04-Serviced by Components
14
Panel, Front Inner Rocker¶
1999-00 R NA01-53-960D
L NA01-54-96XC
2001-04 R N067-53-95XA
L N067-54-95XA
15
Panel, Center Inner Rocker¶
1999-00 R/L N067-54-971A
2001-02¶-Serviced w/Inner Rocker Panel Assy
2003-04 R N067-53-971A
L N067-53-95ZA
16
Panel, Rear Inner Rocker¶
1999-00 R NA01-53-980E
L N067-54-95ZA
2001-04 R N067-53-95ZA
L N067-54-95ZA
¶Included w/Inner Rocker Panel Assy
17
Reinf, Rocker Panel R NC10-70-272A
L NC10-71-272A
18
Gusset, Rocker Panel R NA01-70-274
L NA01-71-274
Illustration Located in Next Column
19
Pan Assy, Front Floor
1999-00
To VIN 109481 NC12-53-600C
From VIN 109481 NC12-53-600E
2001-03 NC72-53-600
2004 NC72-53-600A
20
Pan, Floor Side
1999-00 R NA01-53-602B
L NA01-54-610C
2001-04-Serviced w/Front Floor Pan Assy
21
Crossmember (a) R NA01-53-650A
L NA01-54-650A
22
Bracket, Seat (a) R NA01-53-670A
L NA01-54-670A
(a) Included w/Front Floor Pan Assy
23
Extension, Floor Side 99-00 R/L N053-53-660A
01-04 R N067-53-660A
L N067-54-660A
24
Bracket, Front Floor 99-00 R NC10-53-482A
L NC10-54-482A
01-04 R NC10-53-482B
L NC10-54-482B
25
Gusset, Front Floor R NA01-53-725A
L NA01-54-725A
INTERIOR TRIM
1 Trim Assy, Pillar-See Windshield Section
2 Trim Assy, Cowl Side Panel
Beige R NC10-68-370A-80
L NC10-68-390A-80
Black R NC10-68-370A-02
L NC10-68-390A-02
Tan R NC10-68-370A-21
L NC10-68-390A-21
3
Clip, Cowl Trim¶ R/L GJ12-68-865
¶Included w/Cowl Side Panel Trim Assy
4
Fastener, Cowl Trim
Beige R/L GJ21-68-885B-80
Black R/L GJ21-68-885B-02
Tan R/L GJ21-68-885B-21
5
Plate Assy, Scuff
1999-00
Man Trans
5 Speed
Black R NC10-68-710D-02
L NC10-68-720D-02
Tan R NC10-68-710D-21
L NC10-68-720D-21
6 Speed
Black R NC65-68-710B-02
L NC65-68-720B-02
Tan R NC65-68-710B-21
L NC65-68-720B-21
Auto Trans
Black R NC10-68-710D-02
L NC10-68-720D-02
Tan R NC10-68-710D-21
L NC10-68-720D-21
2001
Black R NC10-68-710D-02
L NC10-68-720D-02
Tan R NC10-68-710D-21
L NC10-68-720D-21
2002
Plastic
Black R NC10-68-710D-02
L NC10-68-720D-02
Tan R NC10-68-710D-21
L NC10-68-720D-21
Stainless Steel
Black R NC65-68-710B-02
L NC65-68-720B-02
Tan R NC65-68-710B-21
L NC65-68-720B-21
2003-04
Plastic
Beige R NC10-68-710D-80
L NC10-68-720D-80
Black R NC10-68-710D-02
L NC10-68-720D-02
Stainless Steel
Beige R NC75-68-710-80
L NC75-68-720-80
Black R NC75-68-710-02
L NC75-68-720-02
6
Clip, Scuff Plate¶
(4/Side) R/L B456-68-712
¶Included w/Scuff Plate Assy
7
Trim Assy, Front Header NA01-68-090E
8
Clip, Outer Header Trim¶ R/L B455-68-AD2
9
Clip, Inner Header Trim¶ R/L GJ21-68-865
¶Included w/Front Header Trim Assy
10
Lamp Assy, Interior NB38-51-310C
11
Bulb (a) 9970-05-080L
(a) Included w/Interior Lamp Assy
12
Lens, Lamp¶ NB38-51-311A
¶Included w/Front Header Trim Assy
SEAT
1 Seat Assy, Front
1999-00
Black R NC10-57-100D-02
L NC10-57-150D-02
Blue R NC65-57-100-55
L NC65-57-150-55
Tan R NC11-57-100F-21
L NC11-57-150F-21
2001-04-Serviced by Components
2
Adjuster, Seat Track
1999-00 (a)
Passenger Side R NA01-88-102A
L NA01-88-103A
Driver Side R NC10-88-152
L NA01-88-153A
2001-02
Passenger Side R N066-88-102
L NC72-88-103
Driver Side R N066-88-152
L N066-88-153
2003-04
Passenger Side R N066-88-102
L NC72-88-103
Driver Side R N066-88-152
L N066-88-153
3
Wire, Release
1999-00 (a) R NA01-88-106
L NA01-88-156
2001-04 R NA01-88-106
L NA01-88-156
4
Knuckle, Reclining
1999-02 (a) R NA01-88-101C
L NA01-88-151C
2001-03 R N066-88-101
L N066-88-155
2004 R N066-88-101A
L N066-88-155A
5
Knob, Knuckle
1999-00 (a)
Black R/L NA01-88-084-00
Tan R/L NA01-88-084-21
2001-02
Black R N066-88-1G5-02
L N066-88-1H5-02
Tan R N066-88-1G5-21
L N066-88-1H5-21
2003-04
Beige R N066-88-1G5-80
L N066-88-1H5-80
Black R N066-88-IG5-02
L N066-88-IH5-02
6
Cover, Knuckle
1999-00 (a)
Black R NA01-88-031A-00
L NA01-88-081A-00
Tan R/L NA01-88-081-21
2001-04
Beige 03-04 R N066-88-1G1-80
L N066-88-1H3-80
Black R N066-88-1G1-02
L N066-88-1H3-02
