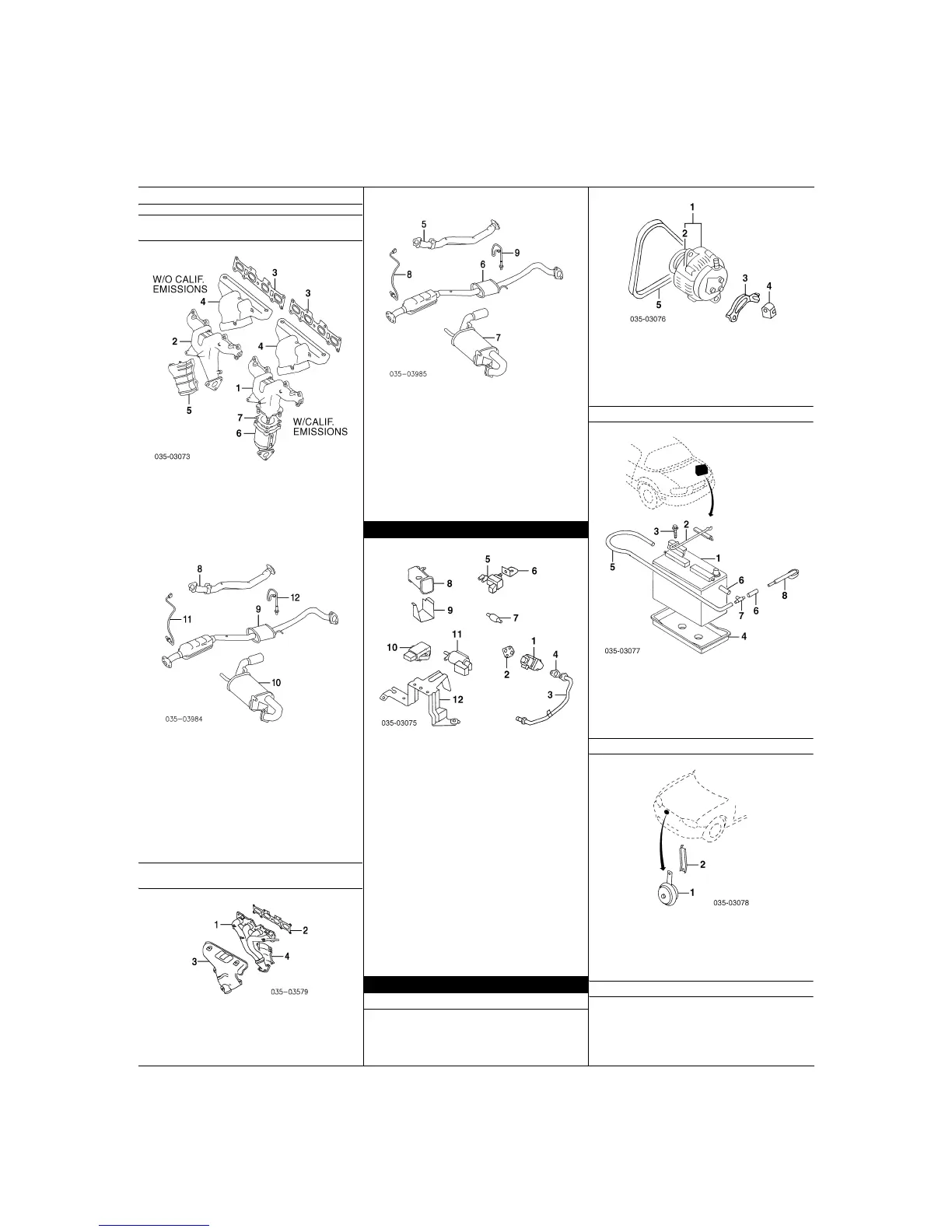

EXHAUST Cont’d
W/O TURBO
1999-00
Manifold, Exhaust
1 w/Calif Emission BP4Y-13-450B
2 w/o Calif Emission BP4W-13-450
3
Gasket, Manifold
BPD3-13-460
4
Shield, Manifold Heat
BP4Y-13-390A
5
Shield, Side
w/o Calif Emission BP4W-13-390
6
Converter, Catalytic
w/Calif Emission BP4Y-20-500C
7
Gasket, Converter
BP4Y-20-520A
8
Pipe, Front Exhaust
BPM3-40-500F
9
Converter w/Pipe¶
w/Calif Emission
Man Trans BP4Y-20-55XH
Auto Trans BP4Z-20-55XH
w/o Calif Emission
Man Trans BP4W-20-55XK
Auto Trans BP4X-20-55XK
¶Includes Catalytic Converter
10
Muffler w/Pipe
Man Trans BPM3-40-100G
Auto Trans BPM1-40-100E
11
Sensor, Front Oxygen
BP4X-18-861A-9U
12
Sensor, Rear Oxygen
w/Calif Emission BP4Y-18-861C-9U
w/o Calif Emission BP3B-18-86Z-9U
W/O TURBO
2001-04
1
Manifold, Exhaust
BP6F-13-450B
2
Gasket, Manifold
1999-03 BPD3-13-460
2004
To 12-1-03 BP05-13-460
From 12-1-03 BP8J-13-4M0
3
Shield, Front Heat
BP6F-13-390A
4
Shield, Rear Heat
BP6F-13-380
5
Pipe, Front Exhaust
BPM3-40-500F
6
Converter w/Pipe
01-02 BP6F-20-55XC
03 BP7F-20-55X
04 BPS5-20-55X
7
Muffler w/Pipe
1999-03
Man Trans BPP6-40-100C
Auto Trans 01-02 BPM8-40-100G
03 BPM8-40-100G
2004
Man Trans BPP6-40-100C
Auto Trans
To 10-1-03 BPM8-40-100G
From 10-1-03 BPM8-40-100H
8
Sensor, Front Oxygen
BP6F-18-861B-9U
9
Sensor, Rear Oxygen
BP6G-18-861C-9U
EMISSION SYSTEM
1
Valve, EGR
1999-00 BP4W-20-300A
2001
To 10-1-00 BP4W-20-300A
From 10-1-00 BP6F-20-300
2002-04 BP6F-20-300
2
Gasket, EGR Valve
JE27-20-305A
3
Pipe, EGR
1999-00 BP8J-20-31X
2001-03 BP6F-20-310A
2004
w/Turbo BP8J-20-31X
w/o Turbo BP6F-20-310A
4
Gasket, EGR Pipe
JE06-20-306
5
Valve, Solenoid
1999-00
To VIN 102379 Z504-18-741A
From VIN 102379 KLG5-18-741
2001-04 KLG5-18-741
6
Brkt, Solenoid Valve
BP4W-18-837
7
Valve, Check
HE41-13-995
8
Canister, Vapor
99-00 BP4W-13-970
01-04 BP5R-13-970
9
Protector, Canister
99-00 NC10-42-755
01-04 NC10-42-79X
10
Sensor, MAP
BP4W-18-211
11
Valve, Solenoid
BP4Y-18-741
12
Bracket, Valve
BP4W-18-28YB
Sensor, Front Oxygen-See Exhaust Section
Sensor, Rear Oxygen-See Exhaust Section
ELECTRICAL
ALTERNATOR
Illustration Located in Next Column
1
Alternator Assy
99-00 BP4W-18-300D
01-04 BP6D-18-300A
2
Pulley, Alternator¶
B3D1-18-W10
¶Included w/Alternator Assy
3
Bracket, Alternator
B6BF-18-361C
4
Spacer, Bracket
FP01-18-363
5
Belt, Drive
Bando Brand B6BG-18-401A
Gates Brand B6BF-18-381-9U
BATTERY
1
Battery
N.A.
2
Clamp, Battery
NC10-56-03XB
3
Bolt, Battery Clamp
9079-61-840
4
Tray, Battery
NC10-56-041A
5
Tube, Vent Hose
BP4W-18-524
6
Hose, Vent¶
N.A.
¶Cut to Fit
7
Joint
0813-66-879
8
Connector, Tube
B61P-18-526
HORN
1
Horn
High Note N053-66-780
Low Note
w/Turbo B30E-66-790
w/o Turbo BG3F-66-790
2
Bracket, Horn (2)
w/Turbo NE45-66-7B1
w/o Turbo NC10-66-7B1
IGNITION
Illustration Located in Next Column
1
Module, Main Computer
To Next Page
