MAZDA MIATA 1999-04
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
241
madpl1_g01_

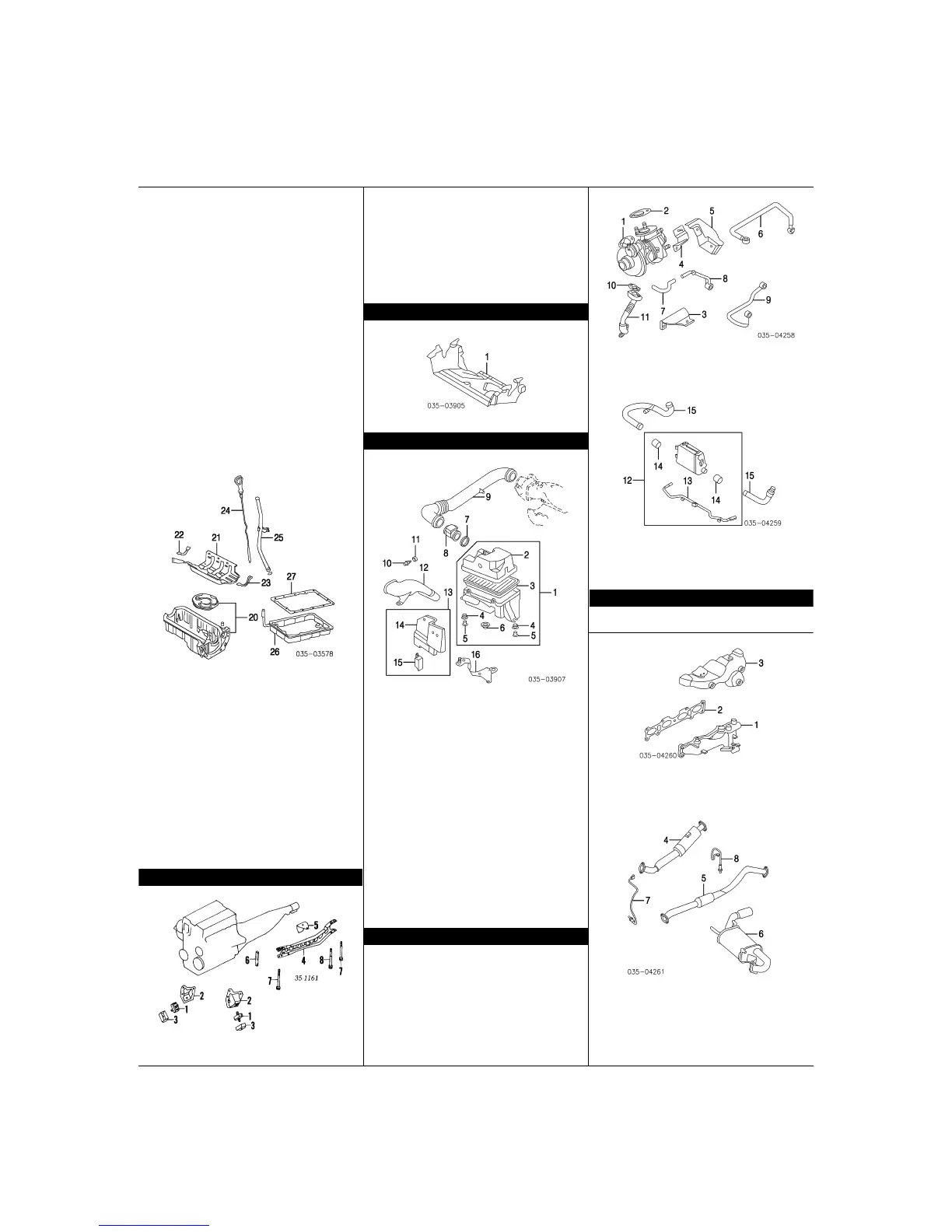

Page 241—April 22, 2004—13:34:14—Version Manufacturer
L B61P-10-512
2001-03-Serviced w/Upper Timing Cover Assy
2004 R B61P-10-514
L B61P-10-512
4
Gskt, Upr Timing Cover¶
Inner
1999-00 B61P-10-513
2001-03-Serviced w/Upper Timing Cover Assy
2004 B61P-10-513
¶Included w/Upper Timing Cover Assy
5
Cover, Center Timing B660-10-521B
6
Cover, Lower Timing B660-10-501E
7
Plate Assy, Upper Cover 99-00 B61P-10-540C
01-04 BP6D-10-540
8
Seal, Plate¶ B61P-10-544
¶Included w/Upper Cover Plate Assy
9
Cover Assy, Rear B366-11-310C
10
Seal, Oil¶ BP05-11-312
¶Included w/Rear Cover Assy
11
Plate, End
Man Trans
w/Turbo BP8J-10-901
w/o Turbo B61P-10-901B
Auto Trans BP4X-10-901
12
Cover, End Plate
Auto Trans BP4X-10-903
13
Belt, Timing B6S7-12-205D-9U
14
Sprocket, Camshaft RBP6D-12-4X0C
L B6S7-12-425A
15
Sprocket, Crankshaft B3C7-11-321
16
Tensioner, Timing Belt B660-12-700F
17
Spring, Tensioner B660-12-711C
18
Idler, Timing Belt B660-12-730C
19
Pump, Eng Oil 99-03 BP4W-14-100A
04 BP6D-14-100
20
Pan, Eng Oil
1999-00 BPY0-10-400D
2001-03 BP6D-10-400A
2004
w/Turbo BP8J-10-400A
w/o Turbo BP6D-10-400A
21
Plate, Baffle 99-00 BPE8-10-40Y
01-04 BP6D-10-40Y
22
Gasket, Frt Oil Pan 99-00 B6F4-10-427
01-04 B541-10-427
23
Gasket, Rear Oil Pan 99-00 B6F4-10-428
01-04 B541-10-428
24
Dipstick, Eng Oil
1999-00
w/Calif Emission BP4Y-10-450A
w/o Calif Emission BP4W-10-450
2001-04 BP4W-10-450
25
Tube, Eng Dipstick
1999-00
w/Calif Emission BP4Y-10-440A
w/o Calif Emission BP4W-10-440A
2001-04 BP4W-10-440A
26
Pan, Trans Oil SB01-19-830
27
Gasket, Trans Oil Pan 99-03 SB01-19-0A2
04 BT24-19-835
ENGINE/TRANS MOUNTS
1 Mount, Engine R/L NC10-39-040
2
Bracket, Eng Mount 99-00 R NC10-39-020
L NA75-39-030
01-03 R N066-39-020
L N066-39-030
04 R N066-39-020
L N066-39-030
3
Casing, Stopper R/L NA01-39-041B
4
Support, Trans
Man Trans NC10-39-710B
Auto Trans NC13-39-710A
5
Bracket, Support
Man Trans NA01-39-730A
6
Spacer, Bolt NA01-39-723
7
Bolt, Otr Support (3) NA01-39-721A
8
Bolt, Inr Support NA01-39-722
ENGINE UNDER COVER
1 Cover, Eng Under NA01-56-111F
AIR CLEANER
1 Cleaner Assy, Air 99-02 BP4W-13-320B
03-04 B6MW-13-320
2
Cover, Air Cleaner¶ BP4W-13-Z01A
3
Element, Cleaner¶ 99-02 FS05-13-Z40-9U
03-04 FS05-13-Z40-9U
4
Bushing, Mounting¶ (2) FE51-13-363
5
Spacer, Mounting¶ (2) FE51-13-329
6
Rubber, Mount¶ B61P-13-Z66
¶Included w/Air Cleaner Assy
7
Joint, Rubber B578-13-245B
8
Sensor, Air Flow 99-00 FP39-13-215R-00
01-04 FS1E-13-215R-00
9
Pipe, Air Intake 99-00 BP4W-13-331B
01-04 BP6D-13-331
10
Sensor, Air Temp BP4W-18-845
11
Grommet KL47-13-375
12
Duct, Fresh Air
1999-00 BP4W-13-200A
2001
To 12-16-00 BP6D-13-200
From 12-16-00 BP6F-13-200
2002-04 BP6F-13-200
13
Bracket Assy, Air Pipe
1999-00-Serviced by Components
2001-04 BP5A-20-650A
14
Baffle, Air Intake (a) BP4W-13-204A
15
Relay (a) 01-04 H310-67-740
(a) Included w/Air Pipe Bracket Assy
16
Bracket, Air Cleaner BP4W-20-210
TURBOCHARGER/INTERCOOLER
Illustration Located in Next Column
1
Turbocharger BP8J-13-700C
2
Gasket, Turbocharger BP8J-13-710
3
Bracket, Turbocharger BP8J-13-520
Insulator, Heat
4 No. 1 BP8J-13-381A
5 No. 2 BPS7-13-377
6
Pipe, Oil BP8J-14-270
7
Hose, Water BP8J-13-546
8
Connector, Water Hose BP8J-13-590A
9
Pipe, Water Inlet BP8J-13-530A
10
Gasket, Pipe B6F4-14-293
11
Pipe, Oil Outlet BP8J-14-260
12
Intercooler Assy BP8J-13-560B
13
Hose, Intercooler¶ BP8J-13-56XA
14
Hose, Air¶ R/L BP8J-13-77X
¶Included w/Intercooler Assy
15
Pipe, Air RBP8J-13-3D0B
L BP8J-13-330A
EXHAUST
W/TURBO
2004
1 Manifold, Exhaust BP8J-13-450A
2
Gasket, Manifold
To 12-1-03 BP05-13-460
From 12-1-03 BP8J-13-4M0
3
Shield, Heat BP8J-13-390
4
Pipe w/Converter, Front BPS7-20-50XA
5
Pipe w/Silencer BPS7-40-300A
6
Muffler w/Pipe BPS7-10-100A
7
Sensor, Front Oxygen BP8J-18-861
8
Sensor, Rear Oxygen BP8K-18-861
