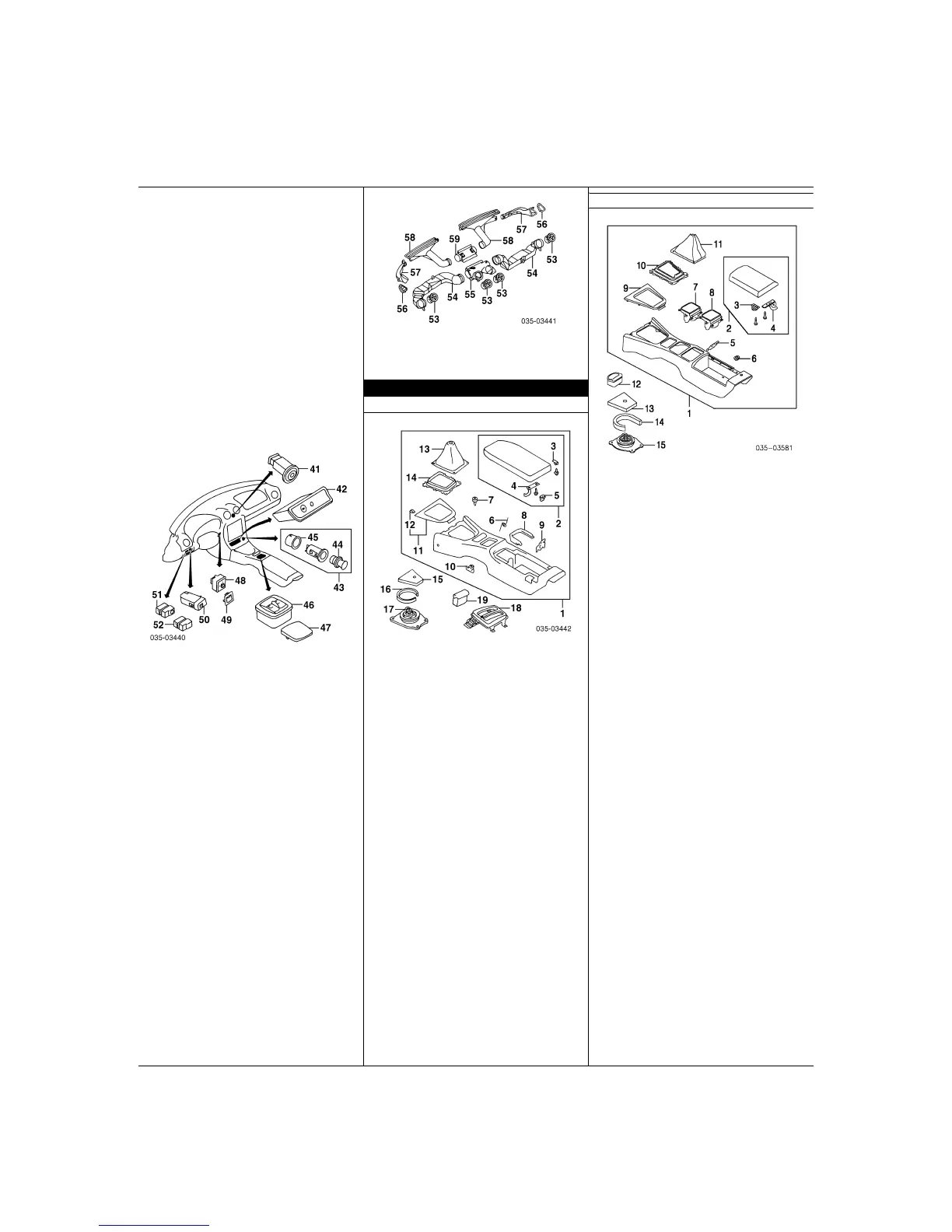

MAZDA MIATA 1999-04
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
245
madpl1_g01_
Page 245—April 22, 2004—13:34:21—Version Manufacturer
2004
w/CD Changer NE04-66-9RX
w/o CD Changer NE03-66-9R0
¶Order by Application
34
Player, CD
1999-00
w/Pwr Amplifier 0000-81-1066
w/o Pwr Amplifier GD7C-66-9R0
2001-02 NC75-66-9R0
2003-04 GK1R-66-AG0
35
Pocket, Radio
99-03 B02A-66-9M0A
04 B03A-66-9M0
36
Amplifier Assy, Power
1999-00 NC10-66-92ZA
2001-03 NC10-66-92ZB
2004
To 1-1-04 NE03-66-92X
From 1-1-04 NE03-66-92XA
37
Brkt, Amplifier¶
NC10-66-9B1
¶Included w/Power Amplifier Assy
38
Block Assy, Fuse
1999-00 NC10-66-730B
2001-03 NC72-66-730A
2004
w/Turbo NE45-66-730
w/o Turbo NC72-66-730A
39
Cover, Fuse Block¶
1999-00 NC10-66-731A
2001-04 NC72-66-731A
40
Fuse¶ (a)
0000-11-0210
¶Included w/Fuse Block Assy
(a) Order by Application
41
Switch, Hazard
NC10-66-4H0
42
Switch, Air Bag Off
99-00 NC10-66-6H0B
01-04 NC72-66-6H0
43
Lighter Assy, Cigarette
99-00 G13H-66-250
01-04 F146-66-250
44
Plug, Cigarette Lighter¶
1999-00 C001-66-252
2001-04-Serviced w/Cigarette Lighter Assy
45
Ring, Illumination¶
99-00 B001-66-251
01-04 N066-66-251
¶Included w/Cigarette Lighter Assy
46
Switch, Pwr Window
Beige 03-04 NC72-66-350-80
Black 99-00 NC11-66-350B-02
01-04 NC72-66-350-02
Tan 99-00 NC11-66-350B-21
01-03 NC72-66-350-21
47
Cover, Switch Hole
1999
Black
To VIN 121495 NC10-55-225B-02
From VIN 121495 NC10-55-225C-02
Ta n
To VIN 121495 NC10-55-225B-21
From VIN 121495 NC10-55-225C-21
2000
Black NC10-55-225C-02
Tan NC10-55-225C-21
48
Switch, Pwr Mirror
GJ84-66-600A
49
Cover, Switch Hole
D002-55-225
50
Resistor, Light
99-03 BR70-55-490
04 NC72-66-6R0
51
Switch, Cruise Control
NC11-66-340
52
Cover, Switch Hole
B481-55-225
Switch, Fog Lamp
w/Cruise Control NC73-66-4B0
w/o Cruise Control NC73-66-4B0
Illustration Located in Next Column
53
Nozzle, Vent (4)
99-03 NA01-64-81XC-00
04 NE01-64-81X
54
Duct, Front Outer
R NC10-64-741A
L NC10-64-841A
55
Duct, Front Center
NC10-64-941
56
Grille, Side Defrost
R NC10-60-160
L NC10-60-170
57
Duct, Side Defrost
R NC10-60-181A
L NC10-60-191A
58
Nozzle, Defrost
R NA75-60-121B
L NA01-60-141
59
Connector, Defrost
NC10-60-122A
CENTER CONSOLE
1999-00
1
Console Assy
Man Trans
5 Speed
Black NC10-64-420M-02
Tan NC10-64-420M-21
6 Speed
Black NC65-64-420-02
Tan NC65-64-420-21
Auto Trans
Black NC13-64-420L-02
Tan NC13-64-420L-21
2
Lid Assy, Console¶
Black NC10-64-450E-02
Tan NC10-64-450E-21
3
Lock, Lid¶ (a)
NC10-64-453
4
Stopper, Lid¶ (a)
NC10-64-452B
5
Protector¶ (a)
NC10-64-357A
(a) Included w/Console Lid Assy
6
Spring, Lid¶
GE4T-64-394
7
Cushion, Lid¶
B092-64-046
8
Holder, Cup¶
NC10-64-39X
9
Cover, Lever¶
NA01-64-424A
10
Plate, Console Lid¶
NC10-64-433
11
Plate Assy, Control¶
Man Trans
5 Speed NC10-64-470A
6 Speed NC65-64-470
Auto Trans NC10-64-470A
12
Spring, Plate¶ (a) (2)
J001-64-345
(a) Included w/Control Plate Assy
13
Boot, Shift¶
Man Trans
5 Speed NC10-64-331A
6 Speed NC65-64-330
14
Plate, Boot¶
Man Trans
5 Speed NC10-64-334
6 Speed-Serviced w/Shift Boot
¶Included w/Console Assy
15
Pad, Shift Boot
Man Trans FB01-64-495
16
Gasket, Boot Plate
Man Trans H001-64-493
17
Insulator, Boot Plate
Man Trans NA01-64-481B
18
Indicator, Shift
Auto Trans NC13-64-350D
19
Ashtray
Black NC10-64-610A-03
Tan NC10-64-610A-21
2001-04
1
Console Assy
2001
Man Trans
Black NC72-64-420H-02
Tan NC72-64-420H-21
Auto Trans
Black NC77-64-420C-02
Tan NC77-64-420C-21
2002
Man Trans
Std Panel
Black NC72-64-420H-02
Tan NC72-64-420H-21
Woodgrain Panel NC76-64-420D-21
Auto Trans
Black NC72-64-420H-02
Tan NC72-64-420H-21
2003
Man Trans
Beige NC72-64-420G-80
Black NC72-64-420H-02
Tan NC72-64-420H-21
Auto Trans
Beige NC77-64-420G-80
Black NC77-64-420H-02
Tan NC77-64-420H-21
2004
Man Trans
w/Turbo
Beige NE45-64-420-80
Black NE45-64-420-02
w/o Turbo
Beige NE01-64-420-80
Black NE01-64-420-02
Auto Trans
Beige NE07-64-420-80
Black NE07-64-420-02
2
Lid Assy, Console¶
Beige NC72-64-450E-80
Black NC72-64-450E-02
Tan NC72-64-450E-02
3
Lock, Lid¶ (a)
Beige NC72-64-453B-80
Black NC72-64-453B-02
Tan NC72-64-453A-21
4
Stopper, Lid¶ (a)
Beige N066-64-452-80
Black N066-64-452-02
Tan N066-64-452-21
(a) Included w/Console Lid Assy
5
Cover, Lever¶
01 NA01-64-424A
02-04 N066-64-424
6
Cover, Rear Console Hole¶
Beige N066-64-48X-80
Black N066-64-48X-02
Tan N066-64-48X-21
7
Holder, Front Cup¶
Beige N067-64-39XB-80
Black N067-64-39XB-02
Tan N067-64-39XB-21
8
Holder, Rear Cup¶
Beige N066-64-39XC-80
Black N066-64-39XC-02
Tan N066-64-39XC-21
9
Plate, Control¶
2001-03
Std Panel NC10-64-470A
Woodgrain Panel NC76-64-470
2004
w/Turbo NE45-64-470
w/o Turbo NE01-64-470
10
Plate, Boot¶
Man Trans NC10-64-334
11
Boot, Shift¶
Man Trans
Std Panel NC10-64-331A
Woodgrain Panel NC76-64-331
To Next Page
