Mazda MIATA - Seat Belts; Front Door; Exterior Trim

MAZDA MIATA 1999-04
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
247
madpl1_g01_
Page 247—April 22, 2004—13:34:24—Version Manufacturer
Tan 01-02 R N066-88-1G1-21
L N066-88-1H3-21
7
Protector, Seat Belt
1999-00 (a) R NA01-88-033
L NA01-88-083
2001-04
Beige 03-04 R N066-88-035-80
L N066-88-085-80
Black R N066-88-035-02
L N066-88-085-02
Tan 01-02 R N066-88-035-21
L N066-88-085-21
8
Buckle, Seat Belt
1999-00 (a) R/L NC10-57-620-00
2001-04 R N066-57-680A-00
L N066-57-620B-00
9
Bolt, Hinge
1999-00 (a) R/L D201-88-063
2001-04 R/L D201-88-063
10
Lever, Release
1999-00 (a) R/L NA75-88-108
2001-04 R/L NA75-88-108
11
Cover, Hinge (a)
1999-00
Black R NA01-88-035-00
L NA01-88-085-00
Tan R NA01-88-035-21
L NA01-88-085-21
12
Cushion, Hinge (a) 99-00 R/L NC10-88-049
13
Cushion Assy, Front Seat
1999-00 (a)
Black R NC10-88-110A-02
L NC10-88-160A-02
Blue R N065-88-110-55
L N065-88-160-55
Tan R NC11-88-110A-21
L NC11-88-160A-21
2001-02
Black R N066-88-110A-02
L N077-88-160-02
Tan R N068-88-110-21
L N068-88-160A-21
2003¶
Type 1 R ND33-88-110-02
L N068-88-160A-02
Type 2 R ND30-88-110-02
L N077-88-160-02
2004¶ R NE02-88-110-02
L NE02-88-160-02
14
Trim, Seat Cushion
1999-00 (a) (b)
Black R NC10-88-111A-02
L NC10-88-161A-02
Blue R N065-88-111-55
L N065-88-161-55
Tan R NC11-88-111A-21
L NC11-88-161A-21
2001-02 (b)
Black R N066-88-111A-02
L N066-88-161A-02
Tan R N068-88-110-21
L N068-88-160A-21
2003¶
Type 1 R ND33-88-111-02
L N068-88-161A-02
Type 2 R ND30-88-111-02
L N066-68-161A-02
2004¶ R NE02-88-111-02
L NE02-88-161-02
(b) Included w/Front Seat Cushion Assy
15
Back Assy, Seat
1999-00 (a)
Black R NC10-88-130-02
L NC10-88-180-02
Blue R NC65-88-130-55
L NC65-88-180-55
Tan R NC11-88-130B-21
L NC11-88-180B-21
2001-02
Black R NC72-88-130-02
L NC72-88-180-02
Tan R NC73-88-130-21
L NC73-88-180-21
2003-04¶
Type 1 R ND33-88-130-02
L NC73-88-180-02
Type 2 R ND30-88-130-02
L NC72-80-180-02
16
Trim, Seat Back
1999-00 (a) (b)
Black R NC10-88-131-02
L NC10-88-181-02
Blue R NC65-88-131-55
L NC65-88-181-55
Tan R NC11-88-131B-21
L NC11-88-181B-21
2001-02 (b)
Black R NC72-88-131-02
L NC72-88-181-02
Tan R NC73-88-131-21
L NC73-88-181-21
2003-04¶
Type 1 R ND33-88-131-02
L NC72-88-181-02
Type 2 R ND30-88-131-02
L NC72-88-181-02
¶Black listed, Order by Application
(b) Included w/Seat Back Assy
17
Cover, Seat Back (a)
1999-00
Black R NA01-88-036-00
L NA01-88-086-00
Tan R NA01-88-036-21
L NA01-88-086-21
(a) Included w/Front Seat Assy

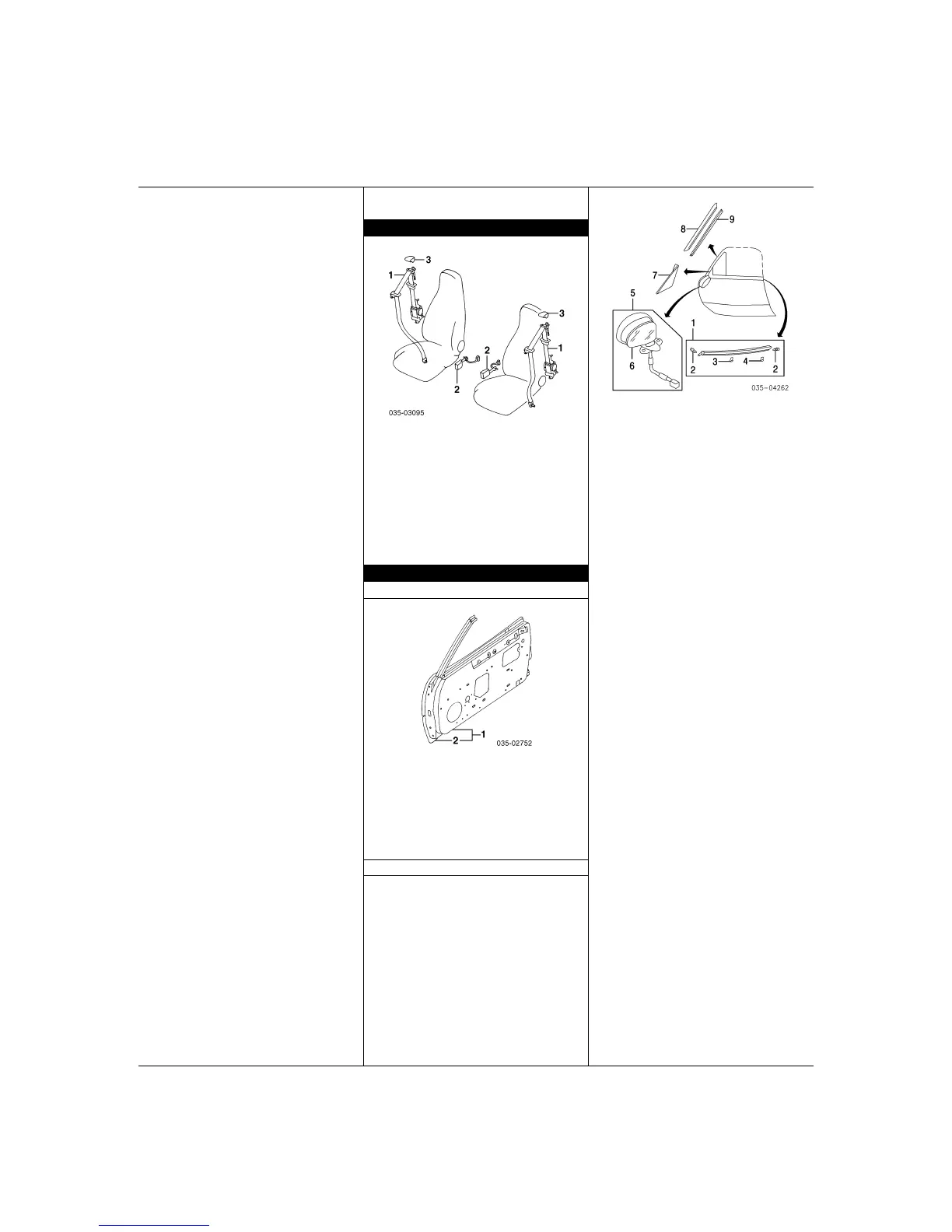

SEAT BELTS
1 Belt, Front Seat
Beige 03-04 R NC72-57-L30A-80
L N066-57-L30D-80
Black 99-00 R NC10-57-630F-00
L NC10-57-690E-00
01-04 R NC72-57-L30E-00
L N066-57-L30D-00
Tan 99-00 R NC10-57-630F-21
L NC10-57-690E-21
01-02 R NC72-57-L30E-21
L N066-57-L30D-21
2
Buckle, Seat Belt-See Seat Section
3 Cover, Anchor
Beige R/L NC10-57-631A-80
Black R/L NC10-57-631A-02
Tan R/L NC10-57-631A-21
Pretensioner, Seat Belt-Serviced w/Front Seat Belt
FRONT DOOR
SHEET METAL
1 Shell Assy, Door
1999-00 R NCY0-58-02XK
L NCY0-59-02XK
2001-03 R NCY2-58-02XE
L NCY2-59-02XD
2004
To 10-1-03 R NCY2-58-02XE
L NCY2-59-02XD
From 10-1-03 R NCY2-58-02XE
L NCY2-59-02XE
2
Panel, Door Repair¶ R NC10-58-030F
L NC10-59-030F
¶Included w/Door Shell Assy
EXTERIOR TRIM
Illustration Located in Next Column
1
Moulding Assy, Outer Belt R NA01-58-810E
L NA01-59-810E
2
Fastener, W/Strip¶
(2/Side) R/L 9926-40-531B
Clip, W/Strip¶
3 Front (2/Side) R/L NA01-58-815
4 Rear R/L B157-58-815
¶Included w/Outer Belt Moulding Assy
5
Mirror Assy, Rear View
1999-00
Manual
Black (Code A3F) R NC10-69-120F-PZ
L NC10-69-180F-PZ
Blue
Code 20P R NC10-69-120F-40
L NC10-69-180E-40
Code 12K R NC10-69-120F-57
L NC10-69-180F-57
Green (Code 18J) R NC10-69-120F-46
L NC10-69-180F-46
Orange (Code 18K) R NC10-69-120E-56
L NC10-69-180E-56
Red (Code 23E) R NC10-69-120F-SU
L NC10-69-180F-SU
Silver (Code 18G) R NC10-69-120F-92
L NC10-69-180F-92
White (Code PT) R NC10-69-120E-PT
L NC10-69-180E-PT
Power
Black (Code A3F) R NC11-69-120F-PZ
L NC11-69-180F-PZ
Blue
Code 20P R NC11-69-120F-40
L NC11-69-180F-40
Code 12K R NC11-69-120F-57
L NC11-69-180F-57
Green (Code 18J) R NC11-69-120F-46
L NC11-69-180F-46
Orange (Code 18K) R NC11-69-120F-56
L NC11-69-180F-56
Red (Code 23E) R NC11-69-120F-SU
L NC11-69-180F-SU
Silver (Code 18G) R NC11-69-120F-92
L NC11-69-180F-92
White (Code PT) R NC11-69-120F-PT
L NC11-69-180F-PT
2001-02
Black
Code A3F R NC11-69-120F-PZ
L NC11-69-180F-PZ
Code 16W R NC11-69-120F-08
L NC11-69-180F-08
Blue
Code 22A R NC11-69-120F-50
L NC11-69-180F-50
Code 23C R NC11-69-120F-51
L NC11-69-180F-51
Code 24A R NC11-69-120E-61
L NC11-69-180E-61
Green
Code A3V R NC11-69-120F-55
L NC11-69-180F-55
Code 18J R NC11-69-120F-46
L NC11-69-180F-46
Red (Code A3E) R NC11-69-120F-SU
L NC11-69-180F-SU
Silver (Code 22V) R NC11-69-120F-67
L NC11-69-180F-67
White (Code A3D) R NC11-69-120E-09
L NC11-69-180F-09
Yellow (Code HZ) R NC11-69-120E-HZ
L NC11-69-180F-HZ
2003
Black (Code A3F) R NC11-69-120F-PZ
L NC11-69-180F-PZ
Blue (Code 22A) R NC11-69-120F-50
L NC11-69-180F-50
Green
Code 18J R NC11-69-120F-46
L NC11-69-180F-46
Code 25R R NC11-69-120F-48
L NC11-69-180F-48
Red (Code A3E) R NC11-69-120F-SU
L NC11-69-180F-SU
Silver (Code 22V) R NC11-69-120F-67
L NC11-69-180F-67
White (Code A3D) R NC11-69-120F-09
L NC11-69-180F-09
2004
Black (Code A3F) R NC11-69-120F-PZ
L NC11-69-180F-PZ
Blue (Code 25E) R NC11-69-120F-38
L NC11-69-180F-38
Ebony (Code 28W) R NC11-69-120F-88
L NC11-69-180F-88
Gray (Code 29Y) R NC11-69-120F-01
L NC11-69-180F-01
Green (Code 18J) R NC11-69-120F-46
L NC11-69-180F-46
Red
