Mazda MIATA - Front Lamps; Fog Lamp; Side Marker Lamp

MAZDA MIATA 1999-04
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
234
madpl1_g01_
Page 234—April 22, 2004—13:34:02—Version Manufacturer
FRONT BUMPER Cont’d
2001-04 Cont’d
Gray (Code 29Y) N115-51-9K0-01
Green (Code 18J) N115-51-9K0-46
Red (Code 27A) N115-51-9K0-87
Silver (Code 22V) N115-51-9K0-67
White (Code A3D) N115-51-9K0-09
26
Clip, Spoiler¶ R/L N115-51-958
¶Included w/Front Spoiler Assy
27
Clip, Spoiler Outer R/L N115-50-EA1A
28
Fastener, Spoiler (7) N115-51-599A

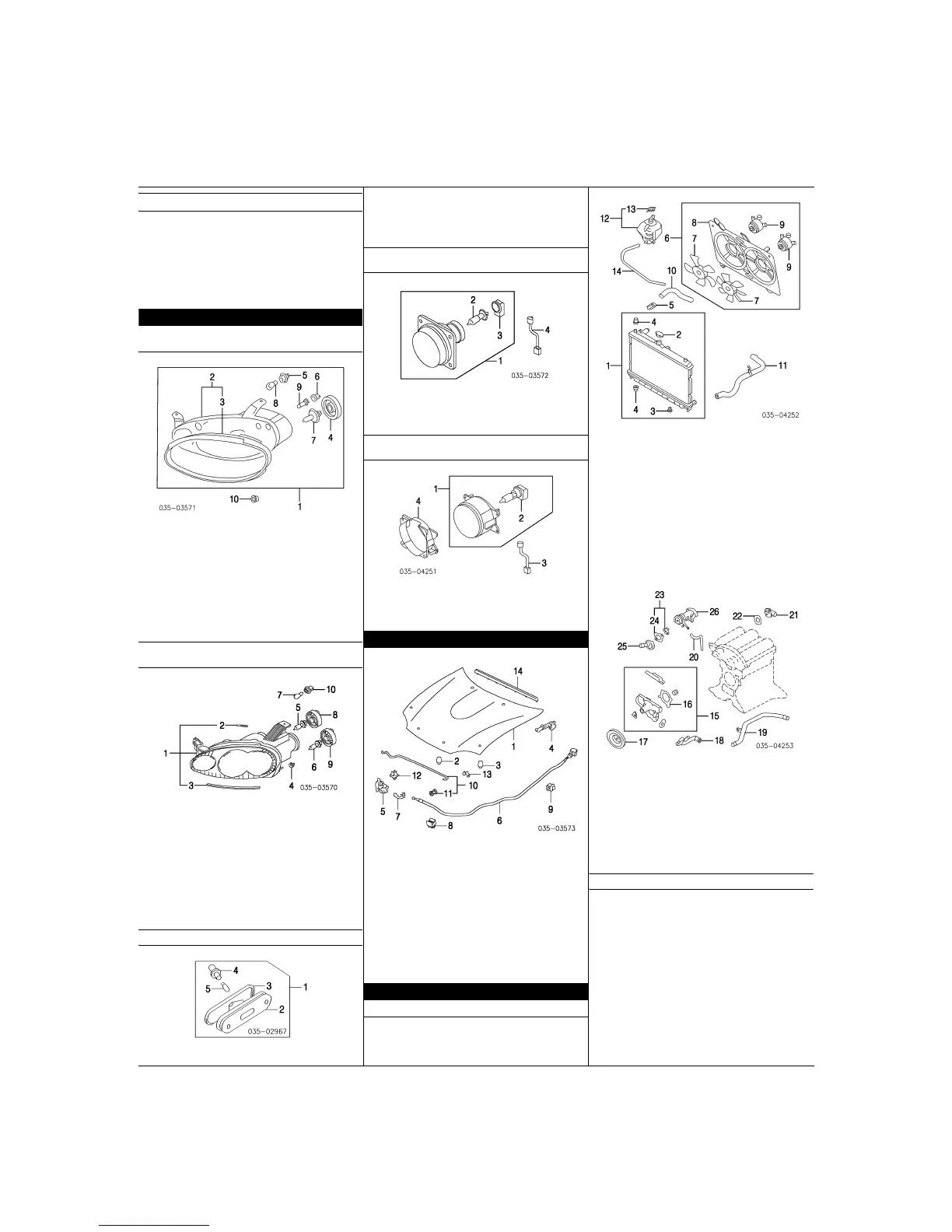

FRONT LAMPS
COMBINATION LAMP
1999-00
1 Lamp Assy, Combination R NC10-51-030E
L NC10-51-040E
2
Lens & Body Assy¶ R NC10-51-0K0E
L NC10-51-0L0E
3
Protector, Lamp¶ (a) R NC10-51-0M5B
L NC10-51-0N5B
(a) Included w/Lens & Body Assy
4
Cover, Headlamp Socket¶ R/L H432-51-0A1
5
Cover, Signal Lamp¶ R/L NC10-51-064
6
Socket, Park Lamp¶ R/L H432-51-0B4
7
Bulb, Headlamp¶ R/L 0000-11-9003
8
Bulb, Signal¶ R/L 0000-11-3496
9
Bulb, Park Lamp¶ R/L 0000-11-0194
¶Included w/Combination Lamp Assy
10
Fastener, Lamp R/L NC13-51-025C
COMBINATION LAMP
2001-04
1 Lamp Assy, Combination
w/Turbo 04 R NE45-51-0K0
L NE45-51-0L0
w/o Turbo R NC72-51-0K0D
L NC72-51-0L0D
2
Seal, Upper Lamp¶ R N066-51-0M5C
L N066-51-0N5C
3
Seal, Lower Lamp¶ R/L N066-51-0N7
¶Included w/Combination Lamp Assy
4
Fastener, Lamp R/L NC13-51-025C
5
Bulb, High Beam R/L 0000-11-9005
6
Bulb, Low Beam R/L 0000-11-9006
7
Bulb, Signal R/L 0000-11-1157-NA
8
Cover, High Beam Bulb R/L N066-51-0A1
9
Cover, Low Beam Bulb R/L N066-51-0A1
10
Socket, Signal R/L NC10-51-064
SIDE MARKER LAMP
1 Lamp Assy, Side Marker R 8BN1-51-120
L 8BN1-51-130
2
Lens & Body¶ R NA01-51-5EXA
L NA01-51-5FXA
3
Gasket¶ R/L NA01-51-5D3A
4
Socket¶ R/L NA01-51-5E2
5
Bulb¶ R/L 0000-11-0194
¶Included w/Side Marker Lamp Assy
FOG LAMP
2001-03
1 Lamp Assy, Fog R/L N066-51-680A
2
Bulb, Fog Lamp¶ R/L 0000-11-0H3
3
Socket, Fog Lamp Bulb¶ R/L B21H-51-6A6
¶Included w/Fog Lamp Assy
4
Harness, Fog Lamp R/L N066-51-688A
FOG LAMP
2004
1 Lamp Assy, Fog R/L NE01-51-680
2
Bulb, Fog¶ R/L 0000-11-9006
¶Included w/Fog Lamp Assy
3
Harness, Fog Lamp R/L NE01-51-688A
4
Bracket, Fog Lamp R/L NE01-51-684A
HOOD
1 Panel, Hood NCY0-52-31XJ
2
Cushion, Front Rubber R/L G067-58-873
3
Cushion, Side Bumper R/L BC1M-56-786
4
Hinge, Hood R NA01-52-410D
L NA01-52-420D
5
Latch NC10-56-620A
6
Cable, Latch Release NC10-56-720C
7
Fastener, Cable LA01-56-631
8
Clip, Front Cable G030-67-519
9
Clip, Rear Cable (2) UB42-66-971
10
Rod Assy, Support NC10-56-650D
11
Holder, Rear Rod¶ T001-56-652
¶Included w/Support Rod Assy
12
Holder, Front Rod G030-56-693A
13
Plate, Rear Holder B01A-56-641
14
W/Strip, Rear Hood NC10-56-760A
Nozzle, Washer-See Windshield Section
COOLING
W/TURBO
Illustration Located in Next Column
1
Radiator Assy BP8J-15-200A
2
Cap, Radiator¶ YF47-15-205
3
Cock, Drain¶ NF01-15-203
4
Mount, Rad¶ (2/Side)
Upper/Lower R/L JE48-15-202
¶Included w/Radiator Assy
5
Bracket, Rad Mount R/L BP4W-15-231
6
Fan Assy, Cooling BP8J-15-025A
7
Blade, Fan¶ R FS2V-15-140
L RF4R-15-140
8
Shroud, Fan¶ BP8J-15-210A
9
Motor, Fan¶ R/L L329-15-150
¶Included w/Cooling Fan Assy
10
Hose, Upper Rad BP8J-15-186A
11
Hose, Lower Rad BP8J-15-185B
12
Tank Assy, Coolant BP8J-15-350A
13
Cap, Tank¶ BP8J-15-355
¶Included w/Coolant Tank Assy
14
Hose, Coolant Tank BP4W-15-380
15
Pump Assy, Water 8ABB-15-010A
16
Gasket, Water Pump¶ B6BF-15-116
¶Included w/Water Pump Assy
17
Pulley, Water Pump B3C7-15-131
18
Inlet, Water B3CD-15-131
19
Pipe, By-Pass BP8J-15-280A
20
Hose, By-Pass BP6D-15-261
21
Outlet, Water BP4W-15-179
22
Gasket, Thermostat Cover (2) B621-15-173
23
Thermostat Assy BP6F-15-171A
24
Gasket, Thermostat¶ B621-15-173
¶Included w/Thermostat Assy
25
Cover, Frt Thermostat BPE8-15-172
26
Cover, Rear Thermostat BP6D-15-170A
W/O TURBO
Illustration Located in Next Column
1
Radiator Assy
Man Trans BP4W-15-200A
Auto Trans 99-00 BP4X-15-200A
01-04 BP6H-15-200
2
Cap, Radiator¶ 99-03 KL01-15-205
04 YF47-15-205
3
Cock, Drain¶ NF01-15-203
4
Mount, Rad¶ (2/Side)
Upper/Lower R/L JE48-15-202
¶Included w/Radiator Assy
5
Bracket, Rad Mount R/L BP4W-15-231
6
Fan Assy, Main Cooling BP4W-15-025
7
Blade, Fan¶ BP4W-15-140
8
Shroud, Fan¶ BP4W-15-210
