MAZDA MIATA 1999-04
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
235
madpl1_g01_

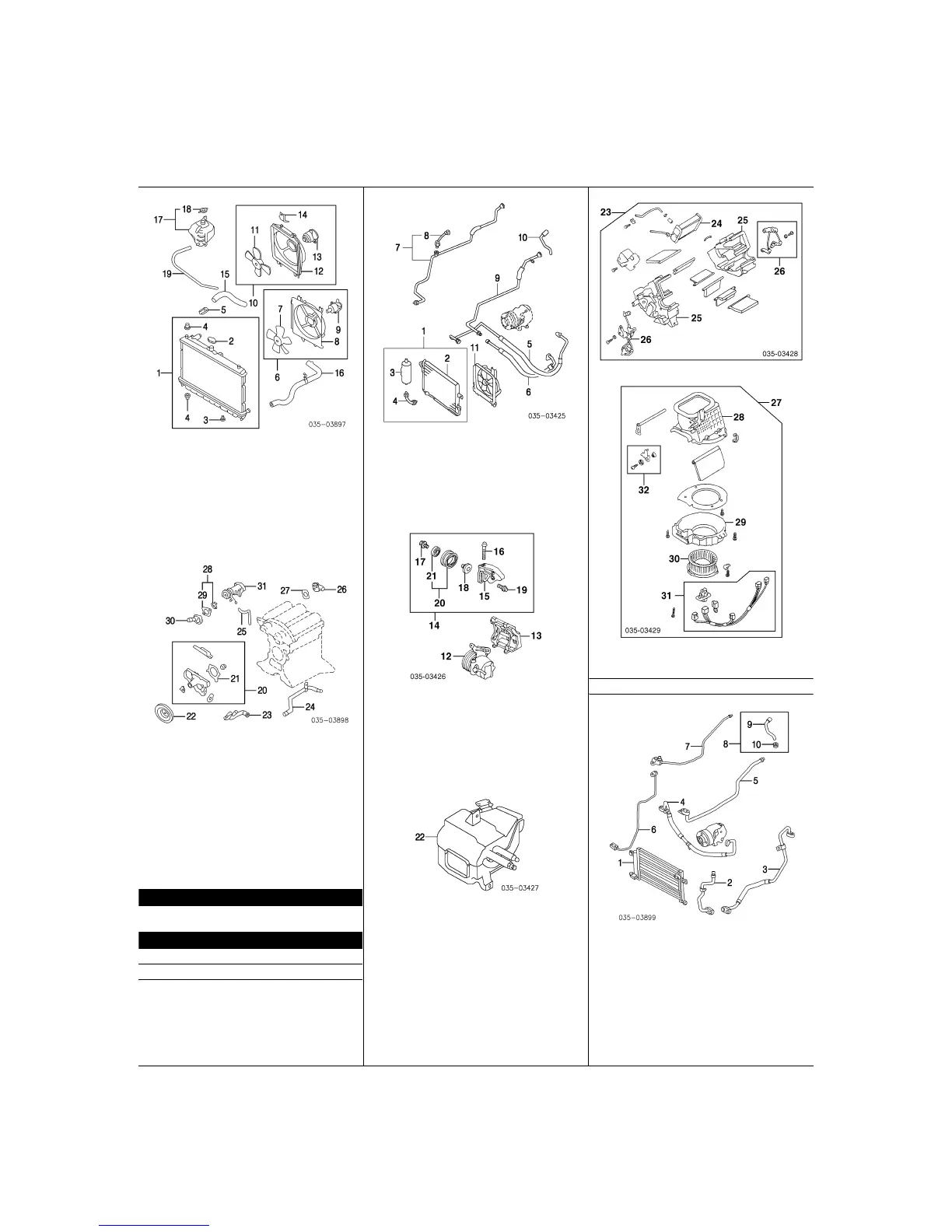

Page 235—April 22, 2004—13:34:04—Version Manufacturer
9 Motor, Fan¶ Z5A1-15-150
¶Included w/Main Cooling Fan Assy
10
Fan Assy, Auxiliary B6MC-15-035
11
Blade, Fan¶ B6MC-15-140
12
Shroud, Fan¶ B6MC-15-210
13
Motor, Fan¶ Z5A1-15-150
14
Bracket, Hose¶ N001-61-4H1
¶Included w/Auxiliary Fan Assy
15
Hose, Upper Rad BP4W-15-186B
16
Hose, Lower Rad BP4W-15-185B
17
Tank Assy, Coolant BP4W-15-350B
18
Cap, Tank¶ SLA1-15-355
¶Included w/Coolant Tank Assy
19
Hose, Coolant Tank BP4W-15-380
20
Pump Assy, Water 8ABB-15-010A
21
Gasket, Water Pump¶ B6BF-15-116
¶Included w/Water Pump Assy
22
Pulley, Water Pump B3C7-15-131
23
Inlet, Water 99-00 B61P-15-160
01-04 BP6D-15-160
24
Pipe, By-Pass BP4W-15-290A
25
Hose, By-Pass 99-00 B61P-15-261A
01-04 BP6D-15-261
26
Outlet, Water BP4W-15-179
27
Gasket, Thermostat Cover (2) B621-15-173
28
Thermostat Assy 99-00 8ABE-15-171
01-03 BP6F-15-171
04 BP6F-15-171A
29
Gasket, Thermostat¶ B621-15-173
¶Included w/Thermostat Assy
30
Cover, Frt Thermostat BPE8-15-172
31
Cover, Rear Thermostat 99-00 BPE8-15-170A
01-04 BP6D-15-170A
A/C REFRIGERANT CAPACITIES
A/C R-134a Refrigerant Capacity
1999-04: 21.2 Ozs (1.32 Lbs)
A/C /HEATER/VENTILATION
1999-00
Illustration Located in Next Column
1
Condenser Assy NC10-61-480B
2
Condenser-Serviced w/Condenser Assy
3 Receiver/Drier¶ NC10-61-500A
4
Pipe, Receiver/Drier¶ NC10-61-464
¶Included w/Condenser Assy
5
Hose, Suction NC10-61-462A
6
Hose, Pressure NC10-61-461A
7
Tube Assy, Upper A/C NC10-61-46X
8
Switch, Pressure¶ GB6H-61-503
¶Included w/Upper A/C Tube Assy
9
Tube, Lower A/C NC10-61-465
10
Hose, Drain NA01-61-526
11
Fan Assy, Auxiliary-See Cooling Section
12 Compressor NA75-61-450
13
Bracket, Compressor BPE8-15-810A
14
Idler Assy BP01-15-930
15
Bracket, Pulley¶ BP01-15-951
16
Bolt, Adjust¶ E564-15-934
17
Collar, Outer¶ E564-15-942
18
Collar, Inner¶ BP01-15-933
19
Shaft, Pulley¶ 0000-67-C42A-6F
20
Pulley Assy, Idler¶ BP01-15-940
21
Bearing¶ (a) 9960-68-302
¶Included w/Idler Assy
(a) Included w/Idler Pulley Assy
22
Evaporator NC10-61-520
Illustration Located in Next Column
23
Heater Assy NC11-61-130E
24
Core, Heater¶ NC10-61-A10A
25
Case, Heater¶ R NC10-61-A01
L NC10-61-A02A
26
Link, Mode¶ R NA01-61-A20
L NA01-61-A30A
¶Included w/Heater Assy
27
Blower Assy NC11-61-140A
28
Case, Upr Blower¶ NA75-61-B01
29
Case, Lwr Blower¶ NA01-61-B02
30
Motor, Blower¶ NA01-61-B10
31
Resistor, Blower¶ NA01-61-B15
32
Link, Heater¶ NA01-61-B20
¶Included w/Blower Assy
2001-04
1 Condenser
Optional 99-03 NE02-61-480
04 NC72-61-480C
Standard 99-03 NE01-61-480
04 NC73-61-480B
2
Hose, Condenser NC72-61-46XA
3
Hose, Pressure 99-03 NC72-61-461E
04 N101-61-461
4
Hose, Suction
2001
To 2-1-01 NC72-61-4T0B
From 2-1-01 NC72-61-4T0F
2002-03 NC72-61-4T0F
2004 NE01-61-4T0
5
Tube, Suction 01-02 NC72-61-46ZA
03-04 NC72-61-46ZE
