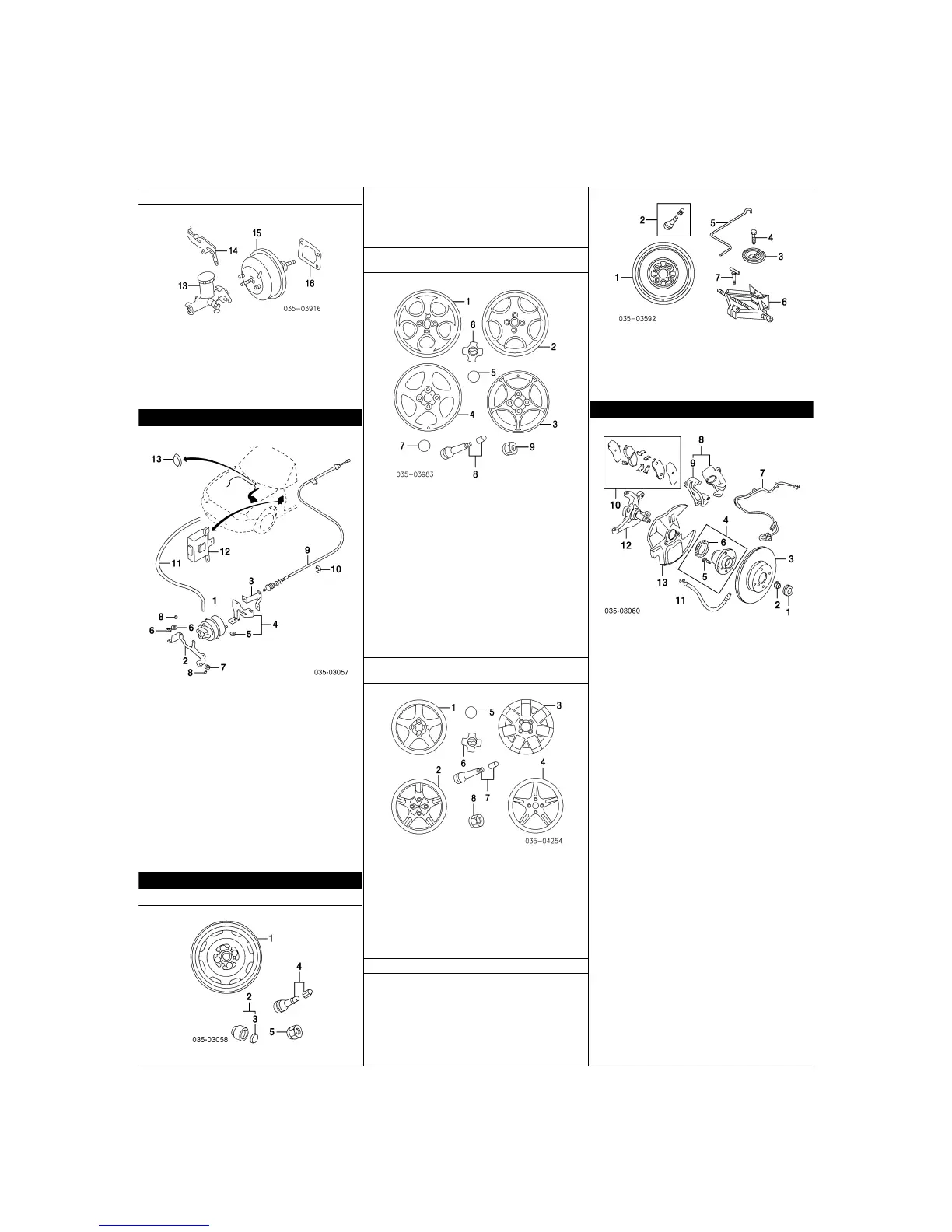

ABS/BRAKES Cont’d
1999-00 NA02-43-750A
2001-04
Std Susp NC72-43-750A
Sport Susp NC74-43-750
15
Booster, Brake
1999-00
w/ABS NA80-43-800
w/o ABS NA75-43-800
2001-04 N069-43-800
16
Gasket, Brake Booster
H001-43-443
CRUISE CONTROL SYSTEM
1
Actuator, Cruise Control
LA01-66-310A
2
Bracket, Front Actuator
99-00 NC11-66-3A3A
01-04 NC72-66-3AY
3
Bracket, Rear Otr Actuator
99-00
LA01-66-3A1
01-04 NC72-66-3AXA
4
Bracket Assy, Rear Inner Actuator
99-00
NC11-66-3AY
01-04 NC72-66-3AXA
5
Grommet, Rear Inr Brkt¶
UE54-66-3A4
¶Included w/Rear Inner Actuator Bracket Assy
Grommet, Front Bracket
6 Right (2) UE54-66-3A4
7 Left B6S7-13-349
8
Spacer, Actuator
R UE54-66-3A5
L B6S7-13-329
9
Cable, Actuator
99-00 NC11-66-311
01-04 NC72-66-311
10
Clip, Cable (3)
JE48-18-868
11
Pipe, Cruise Control
99-00 NC11-66-360B
01-04 NC72-66-360A
12
Control, Cruise
99-00 NC12-66-320
01-04 NC72-66-320
13
Grommet, Hole
w/o Cruise Control B092-41-661
WHEEL
STEEL WHEEL
1
Wheel, Steel
14x5-1/2" 9965-B9-5540
2
Cap Assy, Center
B21V-37-190
3
Emblem, Center¶
G14H-37-192
¶Included w/Center Cap Assy
4
Stem, Valve
9963-60-4130
5
Nut, Lug
B002-37-160A
ALLOY WHEEL
1999-03
Wheel, Alloy
1 14x6" 9965-25-6040
15x6"
2 Type 1
Chrome 9965-H6-6050
Silver
1999-00 9965-F6-6050
2001-03 9965-J1-6050
3 Type 2 9965-L0-6050
4 16x6-1/2" 9965-27-6560
Cap, Center¶
15x6" Wheels
5 Type 1 NC10-37-190
6 Type 2 02 NC76-37-190
03 N072-37-190
7 16x6-1/2" Wheels N067-37-190
¶Order by Application
8
Stem, Valve
Black 9963-60-4130
Chrome 9963-60-414C
9
Nut, Lug
B002-37-160A
ALLOY WHEEL
2004
Wheel, Alloy
1 15x6" 9965-J1-6050
16x6-1/2"
2 5 Spoke 9965-43-6560
3 7 Spoke 9965-54-6560
4 17x7" 9965-19-7070
Cap, Center
5 Type 1
5 Spoke Wheels D376-37-190
7 Spoke Wheels NE45-37-190
6 Type 2 NC97-37-190
7
Stem, Valve
9963-60-4130
8
Nut, Lug
B002-37-160A
SPARE WHEEL & HARDWARE
Illustration Located in Next Column
1
Wheel, Spare
14x4" 99-03 9965-21-4040
04 9965-25-4040
15x4" 9965-31-4050
2
Stem, Valve
9963-60-4130
3
Clamp, Spare Wheel
GA5R-56-971C
4
Bolt, Spare Clamp
T001-56-961
5
Handle, Jack
D201-37-810
6
Jack
99-03 B25D-37-790B
04 N077-37-790
7
Bolt, Jack
B001-56-170C
FRONT SUSPENSION
1
Cap, Dust
R/L B455-26-071
2
Nut, Lock
R/L D06Y-33-042
3
Rotor, Brake
1999-00 R/L N026-33-25XC
2001-04¶
Std Susp R/L N026-33-25XC
Sport Susp R/L N06Y-33-25X
¶Order by Application
4
Hub Assy
w/ABS R/L NA23-33-04XA
w/o ABS R/L NA01-33-04X
5
Bolt, Hub¶
R/L B455-33-062
6
Ring, Frt ABS Sensor¶
R/L NA23-33-471B
¶Included w/Hub Assy
7
Sensor, Front ABS-See ABS/Brakes Section
8
Caliper Assy, Brake
1999-00 R NAY5-33-98ZR
L NAY5-33-99ZR
2001-03
Std Susp 01-02 R NAY5-33-98ZR
L NAY5-33-99ZR
03 R NAZ5-33-98ZA
L NAZ5-33-99ZA
Sport Susp R N0Y7-33-98ZR
L N0Y7-33-99ZR
2004 R NAZ5-33-98ZA
L NAZ5-33-99ZA
9
Support, Caliper¶
1999-00 R NA75-33-281
L NA75-33-291
2001-03
Std Susp R NA75-33-281
L NA75-33-291
Sport Susp R/L N067-33-281
2004 R NA75-33-281
L NA75-33-291
¶Included w/Brake Caliper Assy
10
Pad Set, Brake
1999-00 NAY5-33-23ZC
2001
Std Susp NAY5-33-23ZC
Sport Susp N0Y9-33-23Z
2002-03
Std Susp N0Y3-33-28Z
Sport Susp 02 N0Y7-33-28Z
03 N0Y9-33-23Z
2004 N0Y3-33-23Z
11
Hose, Brake
1999-00 R NA75-43-810A
L NA75-43-820A
2001-04
Std Susp R NA75-43-810A
L NA75-43-820A
Sport Susp R N067-43-810
L N067-43-820
