Mazda MIATA - Glass & Parts; Convertible Top

MAZDA MIATA 1999-04
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
249
madpl1_g01_
Page 249—April 22, 2004—13:34:27—Version Manufacturer
¶Included w/Complete Lock Set-listed in Steering Wheel/Column
Section
4
Handle Assy, Outside
1999-00
Black (Code A3F) R GA5R-58-410G-PZ
L EA01-59-410G-PZ
Blue
Code 20P R GA5R-58-410F-40
L EA01-59-410F-40
Code 12K R GA5R-58-410F-57
L EA01-59-410F-57
Green (Code 18J) R GA5R-58-410F-47
L EA01-59-410F-47
Orange (Code 18K) R GA5R-58-410F-56
L EA01-59-410F-56
Red (Code A3E) R GA5R-58-410F-SU
L EA01-59-410F-SU
Silver (Code 18G) R GA5R-58-410F-92
L EA01-59-410F-92
White (Code PT) R GA5R-58-410F-PT
L EA01-59-410F-PT
2001-02
Black
Code A3F R GA5R-58-410G-PZ
L EA01-59-410G-PZ
Code 16W R/L GA5R-58-410G-PZ
Blue
Code 22A R GA5R-58-410F-50
L EA01-59-410F-50
Code 23C R GA5R-58-410G-51
L EA01-59-410G-51
Code 24A R/L GA5R-58-410G-61
Green
Code A3V R/L GA5R-58-410G-55
Code 18J R GA5R-58-410F-47
L EA01-59-410F-47
Red (Code A3E) R GA5R-58-410F-SU
L EA01-59-410F-SU
Silver (Code 22V) R GA5R-58-410G-68
L EA01-59-410G-68
Yellow (Code HZ) R/L GA5R-58-410G-HZ
White (Code PT) R GA5R-58-410G-09
L EA01-59-410F-09
2003
Black (Code A3F) R GA5R-58-410G-PZ
L EA01-59-410G-PZ
Blue (Code 22A) R GA5R-58-410G-50
L EA01-59-410G-50
Green
Code 18J R GA5R-58-410G-46
L EA01-59-410G-46
Code 25R R GA5R-58-410G-48
L EA01-59-410G-48
Red (Code A3E) R GA5R-58-410G-SU
L EA01-59-410G-SU
Silver (Code 22V) R GA5R-58-410G-67
L EA01-59-410G-67
White (Code A3D) R GA5R-58-410G-09
L EA01-59-410G-09
2004
Black (Code A3F) R GA5R-58-410G-PZ
L EA01-59-410G-PZ
Blue (Code 25E) R GA5R-58-410G-38
L EA01-59-410G-38
Ebony (Code 28W) R GA5R-58-410G-88
L EA01-59-410G-88
Gray (Code 29Y) R GA5R-58-410G-01
L EA01-59-410G-01
Green (Code 18J) R GA5R-58-410G-47
L EA01-59-410G-47
Red
Code A3E R GA5R-58-410G-10
L EA01-59-410G-10
Code 29A R GA5R-58-410G-87
L EA01-59-410G-87
Silver (Code 22V) R GA5R-58-410G-67
L EA01-59-410G-67
White (Code A3D) R GA5R-58-410G-09
L EA01-59-410G-09
5
Retainer, Lock Cyl¶ R GT2G-58-495
L GT2G-59-495
6
Plug, Outside Handle¶ R/L HG30-58-4A9
¶Included w/Outside Handle Assy
7
Handle Assy, Inside
1999-00 R/L B01A-58-330D-02
2001-02 R N066-58-330A-02
L N066-59-330A-02
2003
Sport Susp R N067-58-330E
L N067-59-330E
Std Susp R N066-58-330A-02
L N066-59-330A-02
2004 R N068-58-330
L N068-59-330
8
Clip, Inside Handle¶ R B01A-58-335
L B01A-59-335
¶Included w/Inside Handle Assy
9
Cover, Inside R EA01-58-303-02
L EA01-59-303-02
10
Wedge, Door 99-03 R/L NA01-62-681
04 R/L S084-62-671A
11
Dovetail, Wedge R/L S084-62-671A
12
Hinge, Upper R/L DX50-59-240
13
Hinge, Lower R DX50-58-240
L DX50-59-240
14
Check, Door R/L NA01-58-270B
15
Pin, Door Check R/L BC1D-58-265
16
Weatherstrip Assy, Door R NC10-58-760F
L NC10-59-760F
Fastener, W/Strip¶
17 No. 1 (19/Side) R/L BC1D-58-762
18 No. 2 (2/Side) R/L 9926-40-531B
¶Included w/Door Weatherstrip Assy
19
Welt, Seam R/L NC10-68-911-00

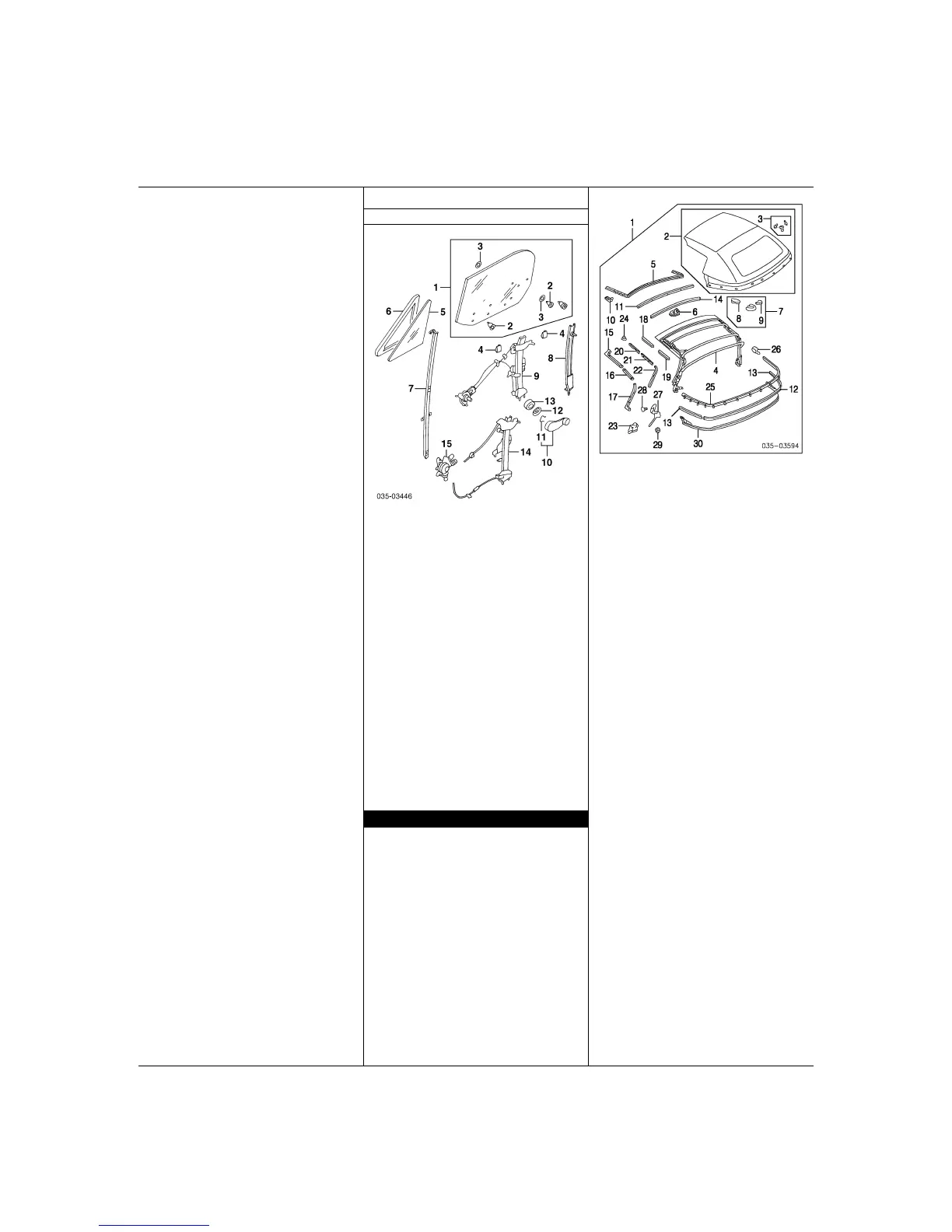

GLASS & PARTS
1 Glass Assy, Front Door
Mazda R NC10-58-510D
L NC10-59-510D
2
Stopper, Glass¶ (2/Side) R/L H001-58-546
3
Washer¶ (4/Side) R/L NA01-58-523
¶Included w/Front Door Glass Assy
4
Grommet, Stopper
(2/Side) R/L B235-58-502
5
Glass, Vent
Mazda R NB39-58-661A
L NB39-59-661A
6
W/Strip, Vent Glass R NA01-58-651B
L NA01-59-651B
7
Channel, Division
1999-00
To VIN 100083 R NA01-58-604B
L NA01-59-604B
From VIN 100083 R NC10-58-604A
L NC10-59-604A
2001-04 R NC10-58-604A
L NC10-59-604A
8
Guide, Glass R NA01-58-603D
L NA01-59-603D
9
Regulator, Manual 99-00 R NC10-58-560F
L NC10-59-560F
10
Handle Assy, Regulator 99-00 R/LS084-58-580A-00
11
Ring, Snap¶ 99-00 R/L B001-58-585
¶Included w/Regulator Handle Assy
12
Escutcheon, Handle 99-00 R/L B001-58-582A-00
13
Pad, Handle 99-00 R/L B092-58-863A
14
Regulator, Power R NC11-58-590G
L NC11-59-590G
15
Motor, Regulator R NC11-58-58XA
L NC11-59-58XA
Moulding Assy, Outer Belt-See Exterior Trim Section
Mldg, Inr Belt
Front-See Interior Trim Section
Rear-See Interior Trim Section
CONVERTIBLE TOP
Illustration Located in Next Column
1
Top Assy, Convertible
1999
Black NC10-R1-020W-66
Blue NC10-R1-020W-44
Tan NC10-R1-020W-88
2000
Black NC20-R1-020P-66
Blue NC20-R1-020D-44
Tan NC20-R1-020P-88
2001
To 1-22-01
Black NC20-R1-020P-66
Ta n
Type 1 NC20-R1-020P-88
Type 2 NC72-R1-020A-88
From 1-22-01
Black NC20-R1-020P-66
Ta n
Type 1 NC20-R1-020P-88
Type 2 NC72-R1-020C-88
2002
Black NC20-R1-020P-66
Ta n
Type 1 NC20-R1-020P-88
Type 2 NC72-R1-020C-88
2003
Black NC20-R1-020R-66
Tan VC20-R1-020R-88
2004
Cloth N.A.
Vinyl N.A.
2
Cover Assy, Outer Top¶
1999-02
Black NC10-R1-210G-66
Blue 99-00 NC10-R1-210G-44
Ta n
Type 1 NC10-R1-210G-88
Type 2 NC72-R1-210B-88
2003
Black NC10-R1-210G-66
Tan NC10-R1-210G-88
2004
Cloth
Beige/Black N077-R1-210-80
Black N077-R1-210-66
Dark Blue N077-R1-210-60
Vinyl NC10-R1-210G-66
3
Fastener Set¶ (a) NA01-R1-230
(a) Included w/Outer Top Cover Assy
4
Frame, Cover¶
1999-00
To VIN 138751 NC10-R1-100A
From VIN 138751 NC10-R1-100G
2001-04 NC10-R1-100G
5
W/Strip, Header¶ NC10-R1-711D
6
Handle, Top¶ NA01-R1-331
7
Latch Assy, Top¶ 99-03 R NA01-R1-310L
L NA01-R1-320L
04 R NA01-R1-310M
L NA01-R1-320M
8
Cap, Top Latch¶ (a) R/L NA01-R1-311
9
Pad¶ (a) R/L NA01-R1-313B
(a) Included w/Top Latch Assy
10
Striker, Latch¶ R NA01-R1-361H
L NA01-R1-371H
11
Plate Set, Front¶ NA01-R1-291A
12
Plate Set, Center Rear¶ NA01-R1-581D
13
Plate Set, Outer Rear¶ R NC10-R1-582B
L NC10-R1-592B
14
Welt, Seam¶ NC10-R1-281
15
W/Strip, Otr Frt Frame¶ R NC10-R1-411C
L NC10-R1-421C
16
W/Strip, Otr Ctr Frame¶ R NC10-R1-412D
L NC10-R1-422D
17
W/Strip, Otr Rear Frame¶ R NC10-R1-413A
L NC10-R1-423A
18
W/Strip, Inr Frt Frame¶ R NC10-R1-431B
L NC10-R1-441B
19
W/Strip, Inr Rear Frame¶ R NC10-R1-432C
L NC10-R1-442C
20
Retainer, Frt Frame W/Strip¶ R NA01-R1-461
L NA01-R1-471
21
Retainer, Ctr Frame W/Strip¶ R NA01-R1-462
L NA01-R1-472
22
Retainer, Rear Frame W/Strip¶ R NA01-R1-463
L NA01-R1-473
23
W/Strip, Side¶ R NC10-R1-721D
L NC10-R1-731C
24
Grommet, Retainer¶ (16) NA01-R1-491
25
Moulding, Belt¶ NC10-R1-750D
26
Protector, Moulding¶ R NA01-R1-741B
L NA01-R1-742C
27
Cover, Belt¶ R NC10-R1-780E
L NC10-R1-790G
28
Retainer, Belt Cover¶ R/L G032-68-865A-00
29
Stopper, Outer Cover¶ R/L NA01-R1-981A
30
Rail, Drip¶ NC20-R1-560
¶Included w/Convertible Top Assy
