MAZDA MIATA 1999-04
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
252
madpl1_g01_
Page 252—April 22, 2004—13:34:31—Version Manufacturer

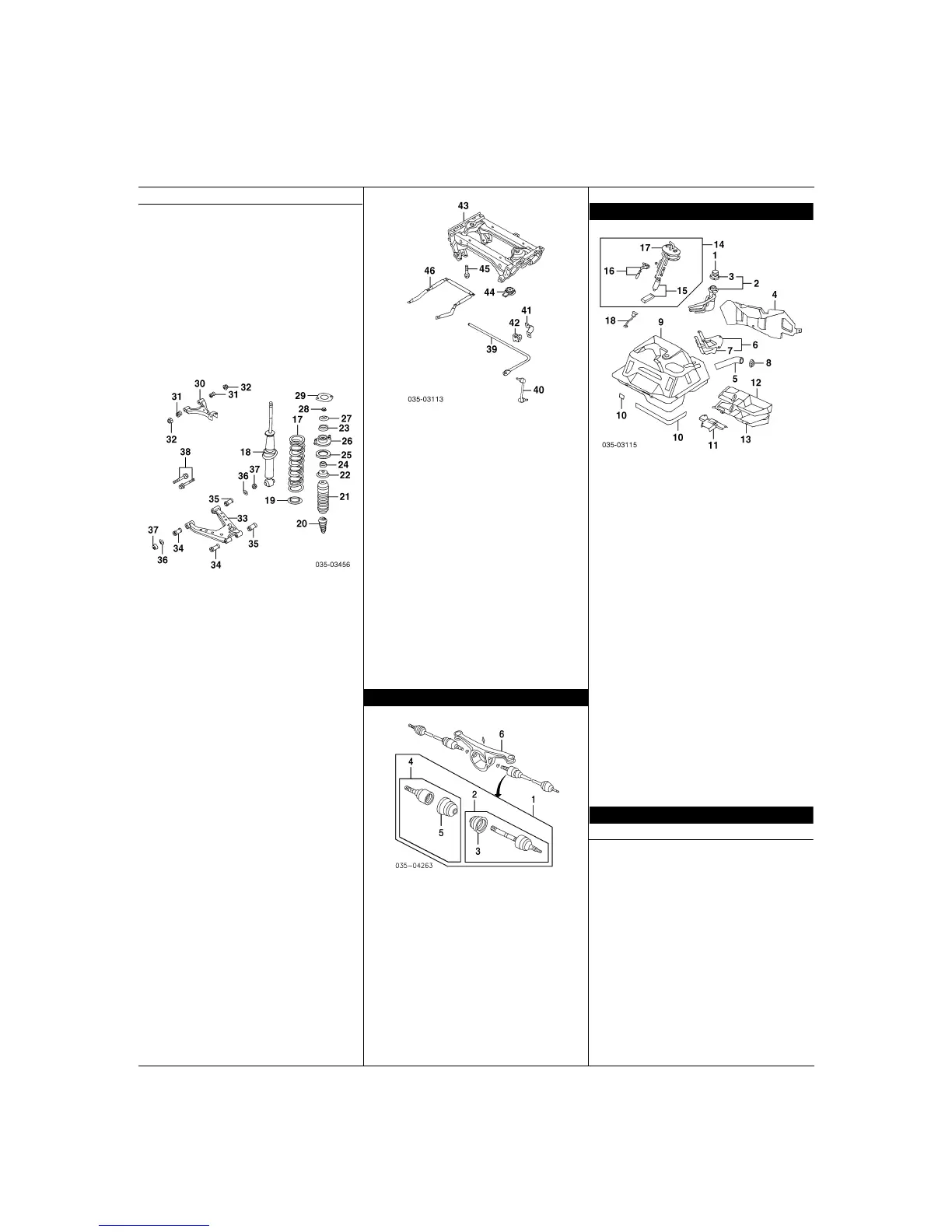

REAR SUSPENSION Cont’d
9
Shield, Splash¶
1999-00 R/L B530-26-261B
2001-04
Std Susp R/L B530-26-261B
Sport Susp R/L N067-26-261
10
Ring, Retaining¶
R/L B21M-33-048
11
Seal, Grease¶
R/L G304-33-065
12
Bearing, Knuckle¶
R/L B455-33-047D-MV
13
Knuckle¶
w/ABS R NC14-26-112B
L NC14-26-122B
w/o ABS R NC10-26-112B
L NC10-26-122B
¶Included w/Knuckle Assy
14
Sensor, Rear ABS-See ABS/Brakes Section
15
Ring, Frt ABS Sensor
w/Turbo R/L G14V-26-471
w/o Turbo R/L BC4C-33-471
16
Hose, Brake
R NA75-43-980A
L NA75-43-990A
17
Spring, Coil
1999-00
Std Susp R/L NC12-28-011D
Sport Susp R/L NC10-28-011B
2001-03
Std Susp R/L N066-28-011A
Sport Susp
Firm R/L N066-28-011A
Hard R/L N067-28-011
2004
Std Susp R/L N066-28-011A
Sport Susp
Firm R/L N066-28-011A
Hard
w/Turbo R/L NE45-28-011
w/o Turbo R/L N067-28-011A
18
Strut
1999-00
Std Susp R/L NC12-28-700D
Sport Susp R/L NC10-28-700C
2001-02
Std Susp R/L N066-28-700
Sport Susp
Firm R/L N066-28-700
Hard R/L N067-28-700
2003
Std Susp R/L N066-28-700
Sport Susp R/L N067-28-700
2004
Std Susp R/L N066-28-700
Sport Susp
Firm R/L NE02-28-700
Hard
w/Turbo R/L NE45-28-700A
w/o Turbo R/L N067-28-700
19
Rubber, Mounting
R/L NC10-28-0A3A
20
Stopper, Bumper
R/L NC10-28-111B
21
Boot, Dust
R/L NC10-28-015A
22
Washer
R/L NC10-28-777
23
Bushing, Upper
R/L NC10-28-775
24
Bushing, Lower
R/L NC10-28-776
25
Seat, Spring
R/L NC10-28-012B
26
Insulator, Mount
R/L NC10-28-340C
27
Retainer, Strut
R/L NC10-28-774
28
Nut, Flange
R/L D061-28-7A1
29
Gasket, Mount
R/L G030-28-013A
30
Arm, Upper
R/L NC10-28-C10
31
Bushing, Upr Arm
(2/Side) R/L NA01-28-8C0C
32
Nut, Upper Arm (2/Side)
R/L 8871-34-222
33
Arm, Lower
R NC10-28-310
L NC10-28-360
34
Bushing, Frt Lwr Arm (2/Side)
R NA01-28-460
L NA01-28-4D0
35
Bushing, Rear Lwr Arm (2/Side)
R NA01-28-460
L NA01-28-4D0
36
Plate, Cam (2/Side)
R/L NA80-28-473A
37
Nut, Plate (4/Side)
R/L B001-39-037B
38
Bolt, Adjust (2/Side)
R/L NA80-28-66ZD
39
Bar, Stabilizer
1999-03
Std Susp NC12-28-151A
Sport Susp N023-28-151A
2004
Std Susp N023-28-151A
Sport Susp
Firm N023-28-151A
Hard
w/Turbo NE45-28-151
w/o Turbo NC12-28-151A
40
Link, Stab Bar
R GA2A-34-150A
L GA2A-34-170A
41
Bracket, Stab Bar
R/L FB01-28-155
42
Bushing, Stab Bar
1999-03
Std Susp R/L G113-28-156
Sport Susp R/L N023-28-156
2004
Std Susp R/L N023-28-156
Sport Susp
Firm R/L N023-28-156
Hard
w/Turbo R/L NE45-28-156A
w/o Turbo R/L G113-28-156
43
Crossmember, Suspension
99-00
NC10-28-800A
01-04 NC10-28-800D
44
Washer, Crossmember
R/L NA01-28-880C
45
Bolt, Control Link
99-03 R/L NA01-28-092
04 R/L 9YA0-21-286
46
Bar, Rear Cross
1999-00 NC10-28-E90D
2001-04
Std Susp NC10-28-E90D
Sport Susp N067-28-E90A
REAR DRIVE AXLE
1
Shaft Assy, Axle
w/Turbo R/L MA03-25-50X
w/o Turbo R/L MD21-25-500
2
Joint Assy, Outer¶
1999-00
w/ABS R/L MD12-22-510B
w/o ABS R/L MD11-22-510A
2001-03 R/L MD12-22-510B
2004-Serviced w/Axle Shaft Assy
3
Boot Set, Outer¶
1999-03 (a) R/L M090-22-530-9U
2004
w/Turbo R/L MA03-22-530
w/o Turbo R/L M090-22-530-9U
(a) Included w/Outer Joint Assy
4
Joint Assy, Inner¶
w/Turbo R/L MA03-22-520
w/Turbo R/L MD02-22-520B
5
Boot, Inner¶ (b)
w/Turbo R/L MA01-22-540
w/o Turbo R/L M090-22-540-9U
¶Included w/Axle Shaft Assy
(b) Included w/Inner Joint Assy
6
Case, Differential
MA02-27-600A
FUEL TANK
1
Cap, Filler
99-03 NC10-42-250B
04 NC11-42-250
2
Pipe Assy, Filler
1999 NC10-42-210H
2000
To VIN 138751 NC10-42-210H
From VIN 138751 NC49-42-210A
2001-04 NC49-42-210E
3
Gasket, Filler Pipe¶
0866-42-366B
¶Included w/Filler Pipe Assy
4
Protector, Filler Pipe
NC11-42-291A
5
Hose, Filler
NC10-42-231
6
Cover Assy, Filler Pipe
1999 NC10-42-240
2000 NC10-42-240
To VIN 138751 NC10-42-240
From VIN 138751 NC49-42-240
2001-04 NC49-42-240
7
Gasket, Cover¶
NA01-42-233
¶Included w/Filler Pipe Cover Assy
8
Valve, Non Return
99 GA2A-42-270
00 GE4T-42-270
01-04 GE4T-42-270B
9
Tank, Fuel
99-02 NC49-42-110B
03 ND30-42-110
04 ND30-42-110A
10
Insulator, Front Tank
R NC10-42-761
L NA01-42-761
11
Insulator, No. 1 Lwr Tank
NC10-42-740A
12
Insulator, No. 2 Lwr Tank
NC10-42-743A
13
Insulator, No. 3 Lwr Tank
NC10-42-74XC
14
Pump Assy, Fuel
1999-00 BP4W-13-35ZF
2001-03 BP4W-13-35ZG
2004
w/Turbo BP8J-13-35Z
w/o Turbo BP4W-13-35ZG
15
Pump, Fuel¶
w/Turbo BP8J-13-350
w/o Turbo BP4W-13-350A
16
Regulator, Fuel¶
BP4W-13-280B
17
Gasket, Fuel Pump¶
BP4W-60-962
¶Included w/Fuel Pump Assy
18
Gauge, Fuel Tank
NC10-60-960
REAR BODY
SHEET METAL
Illustration Located in Next Column
1
Panel, Rear Body
99-02 NC10-70-750H
03-04 NC72-70-750
2
Panel Assy, Bulkhead
NC10-70-50Y
3
Panel, Rear Deck¶
NA01-70-521B
4
Member, Rear Deck¶
NA01-70-530D
¶Included w/Bulkhead Panel Assy
5
Panel, Package Tray
N066-56-5EXC
6
Plate, Corner
R NC10-70-481B
L NC10-71-481B
7
Cover, Service Hole
NA01-56-971
8
Panel Assy, Rear Floor
NCY0-53-710A
9
Panel, Rear Floor¶
N067-53-71YA
10
Bracket, Lower¶
1353-65-190
¶Included w/Rear Floor Panel Assy
11
Gusset, Floor Center
NA01-53-725A
12
Frame, Upper Floor
N067-53-71X
13
Brace, Frame
NC10-53-718
14
Plate, Side Front
R NA01-53-750B
L NA01-54-750B
15
Plate, Side Rear
R/L NA01-53-760B
To Next Page
