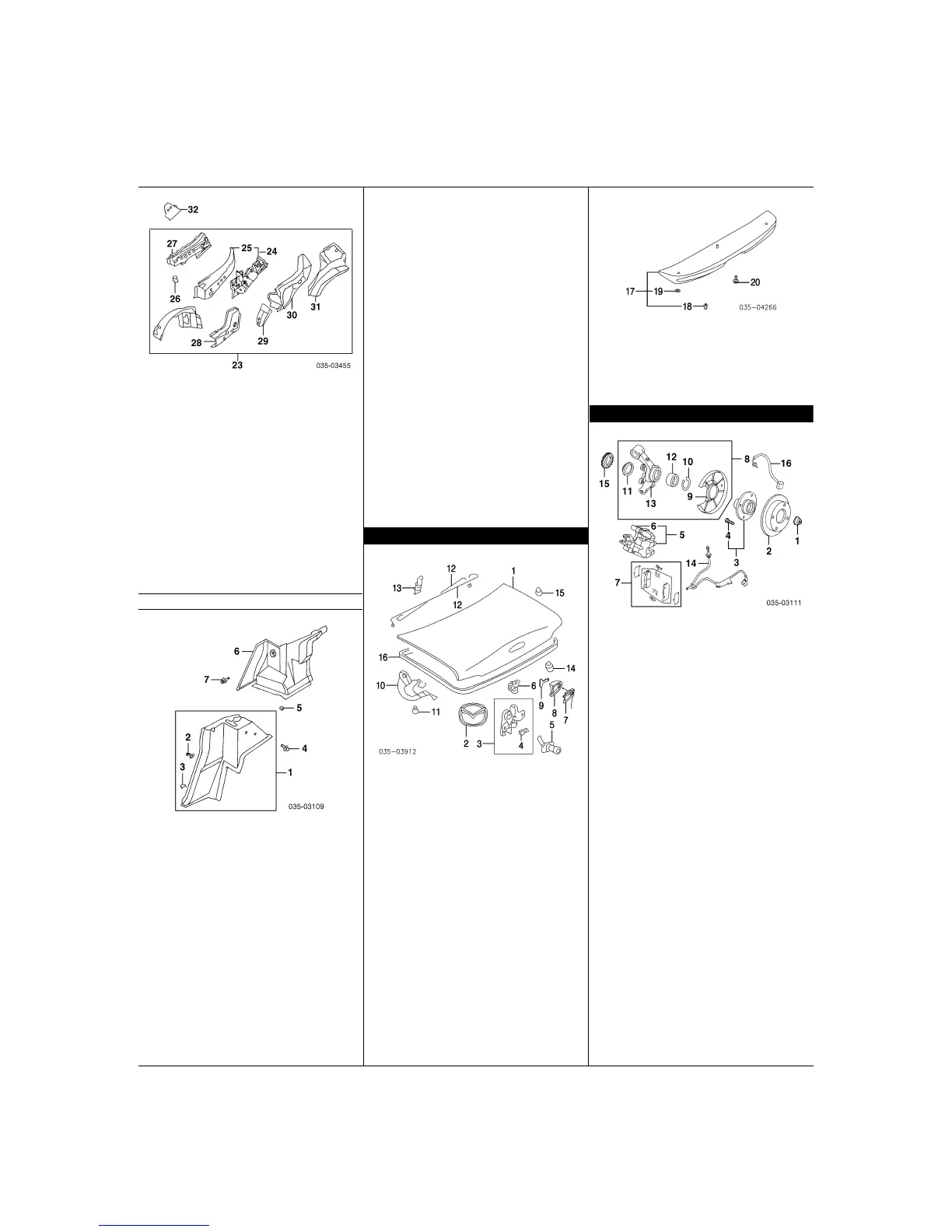

Mazda MIATA - Rear Suspension; Luggage Lid

MAZDA MIATA 1999-04
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
251
madpl1_g01_
Page 251—April 22, 2004—13:34:30—Version Manufacturer
23 Panel Assy, Inner Quarter 99-00 R NC10-70-100
L NC10-71-100
01-04 R N067-70-100
L N067-71-100
24
Panel Assy, Inner Upper¶ 99-00 R NC10-70-1X0
L NC10-71-1X0
01-04 R NA01-70-19XF
L NA01-71-19XF
25
Reinf, Inr Upr
1999-00¶ (a) R NA01-70-19XF
L NA01-71-19XF
2001-04-Serviced w/Inner Upper Panel Assy
(a) Included w/Inner Upper Panel Assy
26
Bracket, Inr Pnl¶ R/L NA01-71-192
27
Reinf, Quarter Panel¶ R NC10-70-117A
L NC10-71-117A
28
Plate, Joint¶ R NC10-70-1AXA
L NC10-71-1AXA
29
Plate, End¶ R NC10-70-112A
L NC10-71-112A
30
Reinf, Belt Line¶ R NA01-70-116D
L NA01-71-116F
31
Wheelhouse, Outer¶ R NCY0-70-11X
L NCY0-71-11X
¶Included w/Inner Quarter Panel Assy
32
Plate, Closing R N067-70-670
L N067-71-670
INTERIOR TRIM
1 Panel Assy, Quarter Trim
Conv Top
w/Aero Board
Beige 01-03 R N053-68-520C-80
L N053-68-550C-80
04 R NC31-68-520C-80
L NC31-68-550C-80
Black 99-03 R N053-68-520C-00
L N053-68-550C-00
04 R NC31-68-520C-00
L NC31-68-550C-00
Tan R N053-68-520C-21
L N053-68-550B-21
w/o Aero Board
Beige 01-03 R NC10-68-520C-80
L NC10-68-550C-80
04 R NC30-68-520C-80
L NC30-68-550C-80
Black 99-03 R NC10-68-520C-00
L NC10-68-550C-00
04 R N053-68-520C-00
L N053-68-550C-00
Tan 01-02 R NC10-68-520C-21
L NC10-68-550C-21
Hardtop
w/Aero Board
Beige 01-03 R NC31-68-520C-80
L NC31-68-550C-80
04 R N053-68-520C-80
L N053-68-550C-80
Black 00-03 R NC31-68-520C-00
L NC31-68-550C-00
04 R N053-68-520C-00
L N053-68-550C-00
Tan 01-02 R NC31-68-520C-21
L NC31-68-550C-21
w/o Aero Board
Beige 01-03 R NC30-68-520C-80
L NC30-68-550C-80
04 R NC10-68-520C-80
L NC10-68-550C-80
Black 99-03 R NC30-68-520C-00
L NC30-68-550C-00
04 R NC10-68-520C-00
L NC10-68-550C-00
Tan 01-02 R NC30-68-520C-21
L NC30-68-550C-21
2
Clip, Upr Trim Panel¶ R/L GJ21-68-865
3
Clip, Lwr Trim Panel¶
Beige R/L NC10-68-AD2C-80
Black 99-03 R/L NC10-68-AD2B-00
04 R/L NC10-68-AD2C-00
Tan 01-02 R/L NC10-68-AD2B-21
¶Included w/Quarter Trim Panel Assy
4
Fastener, Trim Panel
Beige R/L B499-68-AC3A-80
Black R/L B499-68-AC3A-00
Tan R/L B499-68-AC3A-21
5
Cover, Hole
Beige R/L NA01-68-222A-80
Black R/L NA01-68-222A-00
Tan R/L NA01-68-222A-21
6
Cover, Link
Beige R NC10-68-282A-80
L NC10-68-292A-80
Black R NC10-68-282A-02
L NC10-68-292A-02
Tan R NC10-68-282A-21
L NC10-68-292A-21
7
Fastener, Link Cover
Beige R/L B467-68-AC3-80
Black R/L B467-68-AC3-02
Tan R/L B467-68-AC3-21
LUGGAGE LID
1 Lid, Luggage NCY0-52-61XG
2
Emblem (Adhesive) NC37-51-731A
3
Latch Assy
1999-00 NC10-56-820C
2001-02
w/Keyless Entry N066-56-820D
w/o Keyless Entry NC10-56-820C
2003-04
w/Keyless Entry NC88-56-820A
w/o Keyless Entry NC87-56-820B
4
Clip, Latch¶ G030-59-315
¶Included w/Latch Assy
5
Cylinder, Luggage Lid Lock¶ NCY1-76-230A
¶Included w/Complete Lock Set-listed in Steering Wheel/Column
Section
6
Striker, Latch NA01-56-840
7
Cable, Latch Release NC10-56-8B0B
8
Handle, Release BJ0E-56-8B2B
9
Base, Release Handle NC10-56-8B4A
10
Hinge R NA01-52-710C
L NA01-52-720B
11
Cushion, Hinge R/L NA01-56-802
12
Bar, Torsion
1999-03 R NC10-52-791B
L NC10-52-792B
2004
w/Turbo R N115-52-791A
L N115-52-792
w/o Turbo R NC10-52-791B
L NC10-52-792B
13
Holder, Torsion Bar NA01-56-805
14
Cushion, Rubber
1999-01
To VIN 106606 R/L B481-56-786
From VIN 106606 R/L H043-56-786
2002-04 R/L H043-56-786
15
Plug, Drain R/L NA01-56-051
16
W/Strip, Lid NC10-56-951
17
Spoiler Assy, Air
Gray (Code 29Y) N115-51-960-01
Green (Code 18J) N115-51-960-46
Red (Code 27A) N115-51-960-87
Silver (Code 22V) N115-51-960-67
White (Code A3D) N115-51-960-09
18
Clip, Spoiler¶ R/L N115-51-685
19
Gasket, Spoiler¶ (3) N115-51-965
¶Included w/Air Spoiler Assy
20
Bolt, Spoiler R/L 9YA0-20-612
REAR SUSPENSION
1 Nut, Axle R/L GJ21-33-042B
2
Rotor, Brake
1999-00 R/L BB4C-26-251C
2001
Std Susp R/L BB4C-26-251C
Sport Susp R/L N06Y-26-251B
2002-04
Std Susp R/L BB4C-26-251C
Sport Susp
w/Dacron Coating R/L N06Y-26-251B
w/o Dacron Coating R/L N06Y-26-251B
3
Hub Assy R/L B01A-33-060A
4
Bolt, Lug¶ (4/Side) R/L B01Y-33-062
¶Included w/Hub Assy
5
Caliper Assy, Brake
1999-00 R NAY5-26-98ZR
L NAY5-26-99ZR
2001-04
Std Susp R/L NAY5-26-98ZR
Sport Susp R/L N0Y7-26-98ZR
6
Support, Caliper¶
1999-00 R NA75-26-28X
L NA75-26-29X
2001-04
Std Susp R NA75-26-28X
L NA75-26-29X
Sport Susp R N067-26-28X
L N067-26-29X
¶Included w/Brake Caliper Assy
7
Pad Set, Brake
1999-00 NAY1-26-46ZB
2001
Std Susp N0Y8-26-43ZA
Sport Susp
To 11-1-01 N069-26-43ZA
From 11-1-01 N0Y9-26-43ZC
2002
Std Susp N0Y8-26-43ZA
Sport Susp N0Y9-26-43ZC
2003-04
Std Susp N0Y8-26-43ZA
Sport Susp N0Y7-26-48ZB
8
Knuckle Assy
1999-00
w/ABS R NC14-26-130
L NC14-26-140
w/o ABS R NC10-26-130
L NC10-26-140
2001-04
Std Susp R NC10-26-130
L NC10-26-140
Sport Susp
w/ABS R N069-26-130
L N069-26-140
w/o ABS R N067-26-130
L N067-26-140
