3 GET FAMILIAR WITH BB100

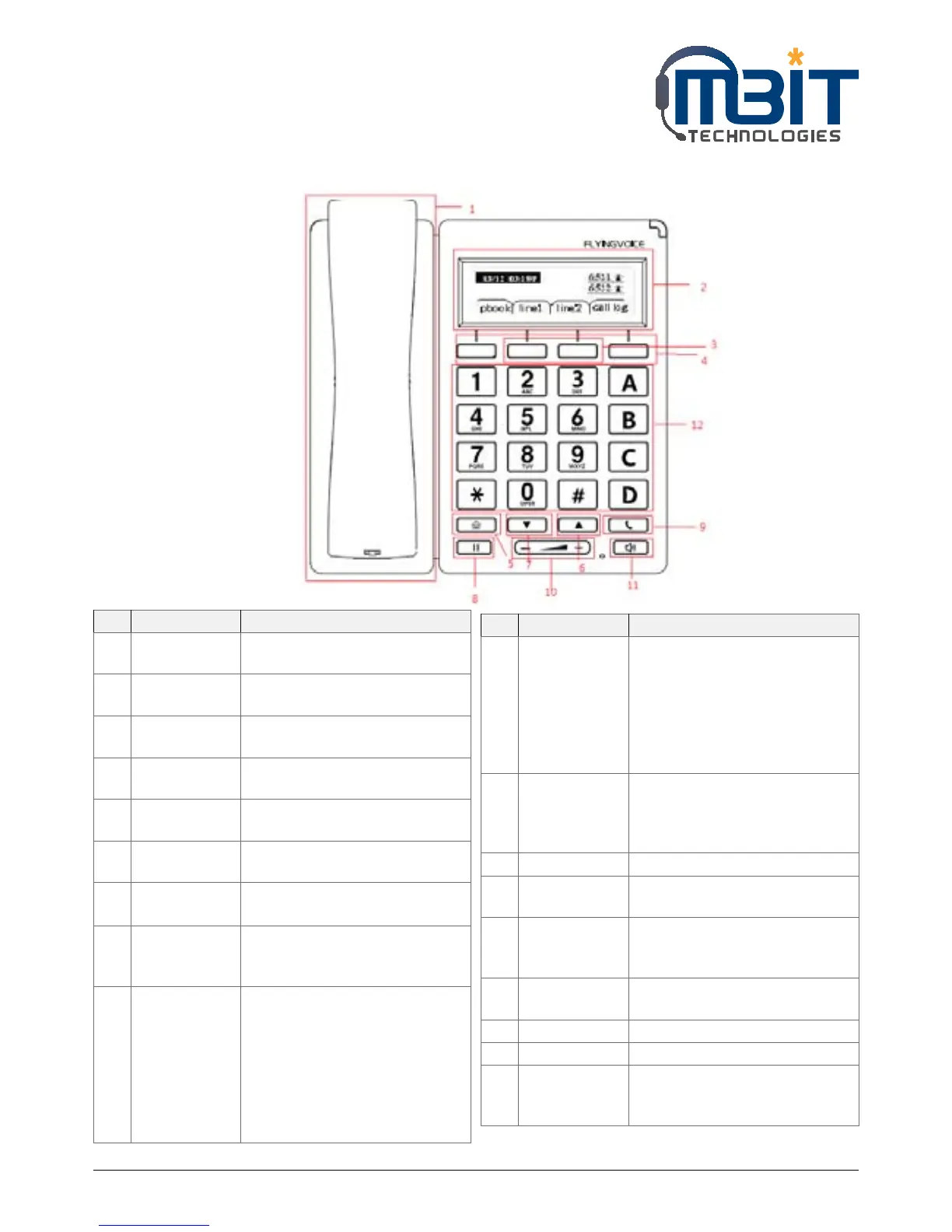

3.1 Front Panel
No. Part Name Description of Function
1 Handset top
cradle
For the placement of handset
(Receiver end)
Hook switch For hang-up and hang-off of
handset
Cradle latch To prevent the handset from
dropping when it is wall-mounted.
Handset
bottom cradle
For the placement of handset
(Transmitter end)
Handset cord
port
RJ-11 jack on the left side of the IP
phone
Headset wire
port
RJ-11 jack on the bottom of the
handset
Headset To mount mouthpiece and earpiece
on the single handle.
2 LCD screen The LCD screen is for displaying
your settings, such as phone
number, line status and so on.
3 Line keys In standby: These keys are used
as line keys; you can press the line
button to select the corresponding
line, and then user can make call or
do other functions.
The LEDs under the keys used to
display the status of each extension,
please refer to 3.3 LCD indicator
No. Part Name Description of Function
4 Soft keys These keys are used as soft keys.
These can be used for item
selection or control on the LCD
screen.
The softkey’ function depends
on their corresponding content
displayed on the LCD at that time.
5 Menu Press it to access to menu items:
such as phonebook, multi-
functional key, and call history and
so on.
6 UP To scroll up or turn up the volume
7 DOWN To scroll down or turn down the
volume
8 Hold The Hold key is used to hold the
current call, press it again to release
the hold function.
9 Redial The Redial key is used to redial the
last dialed number automatically.
10 Volume Add or reduce the volume
11 Handsfree Press it to use Handsfree
12 Numeric
Keypad
Enters numeric digits for initiating
a call or for entering configuration
information.
