3.2 Sensor installation
The GLM KIT can be fitted with the following types of sensor:
• Proximity inductive sensor, NPN, 12V, N.A.
• Capacitive sensor, NPN, 12V, N.A.
3.2.1 Speed sensor installation

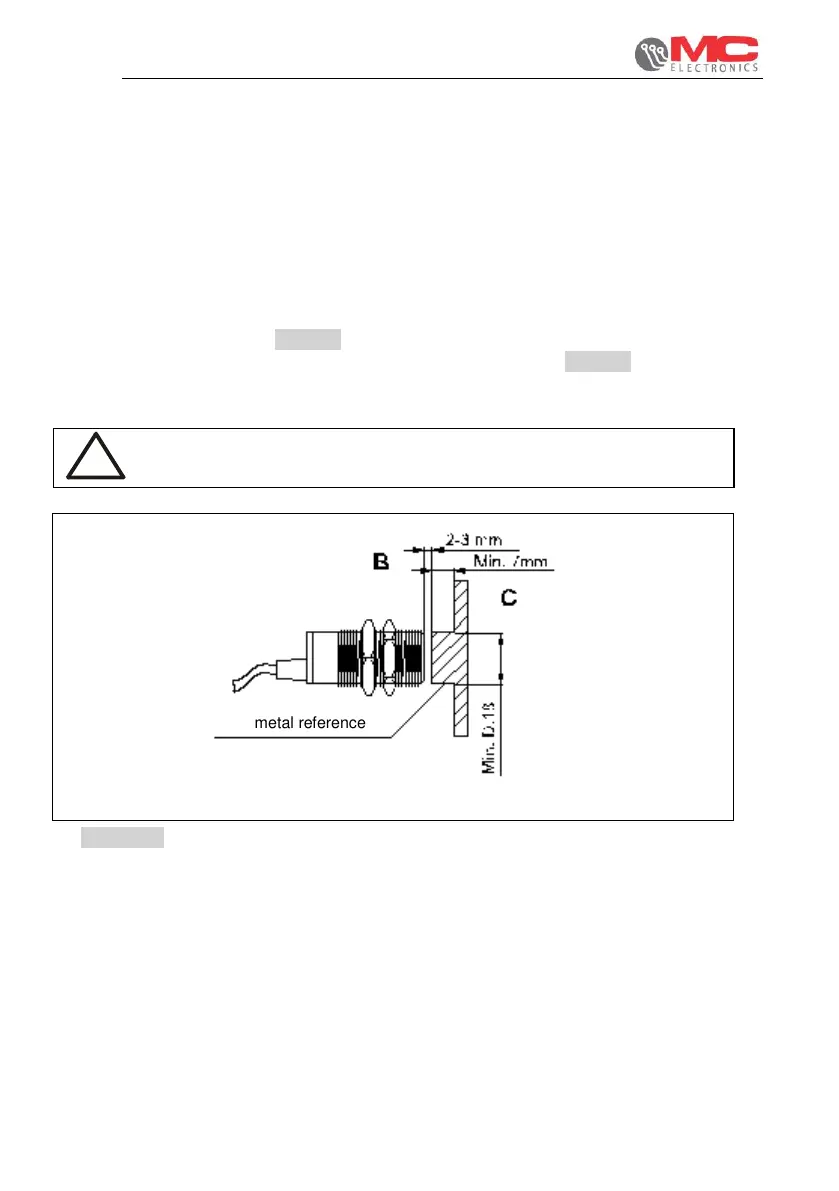

You can install the speed sensor anywhere there is mechanical movement, on the wheel
(front or rear wheel) of the agricultural vehicle/machine or applying a metal reference
protruding by at least 7 mm (Figure 5- ref. <C>).
Adjust the distance between the sensor and the bolts to 2-3 mm (Figure 5 – ref. <B>).
Fasten the sensor supporting bracket (supplied) securely to a fixed part of the vehicle
structure. Fasten the sensor to the bracket using the nut and the lock nut.
