3.1 Virtual Terminal assembly
To assemble the Virtual Terminal, proceed as follows:
• Screw the suction bracket onto the rear part of the Virtual Terminal using the supplied
screws
• Fasten the suction bracket onto a clean flat surface. Otherwise, the Virtual Terminal
can detach itself and fall during operations
Note:
we recommend installing the Virtual Terminal in front of the operator to make
it easier to use during the work cycle.

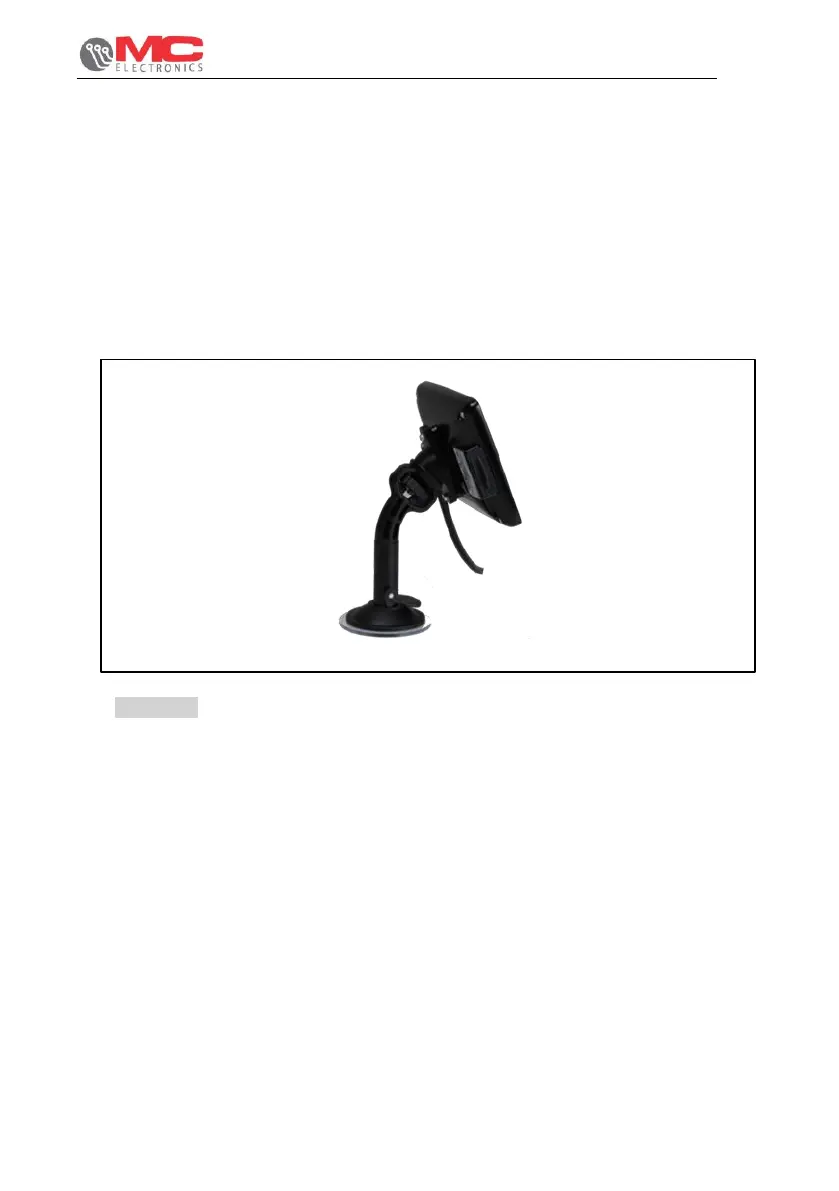

Figure 4 - 3.5” Virtual Terminal assembly
