McCrometer WATER SPECIALTIES FlowCom FC101 User Manual

30119-50 Rev. 2.2 | 23JUL2020
Page 35
PRODUCT SPECIFICATIONS
5.4 Parts List

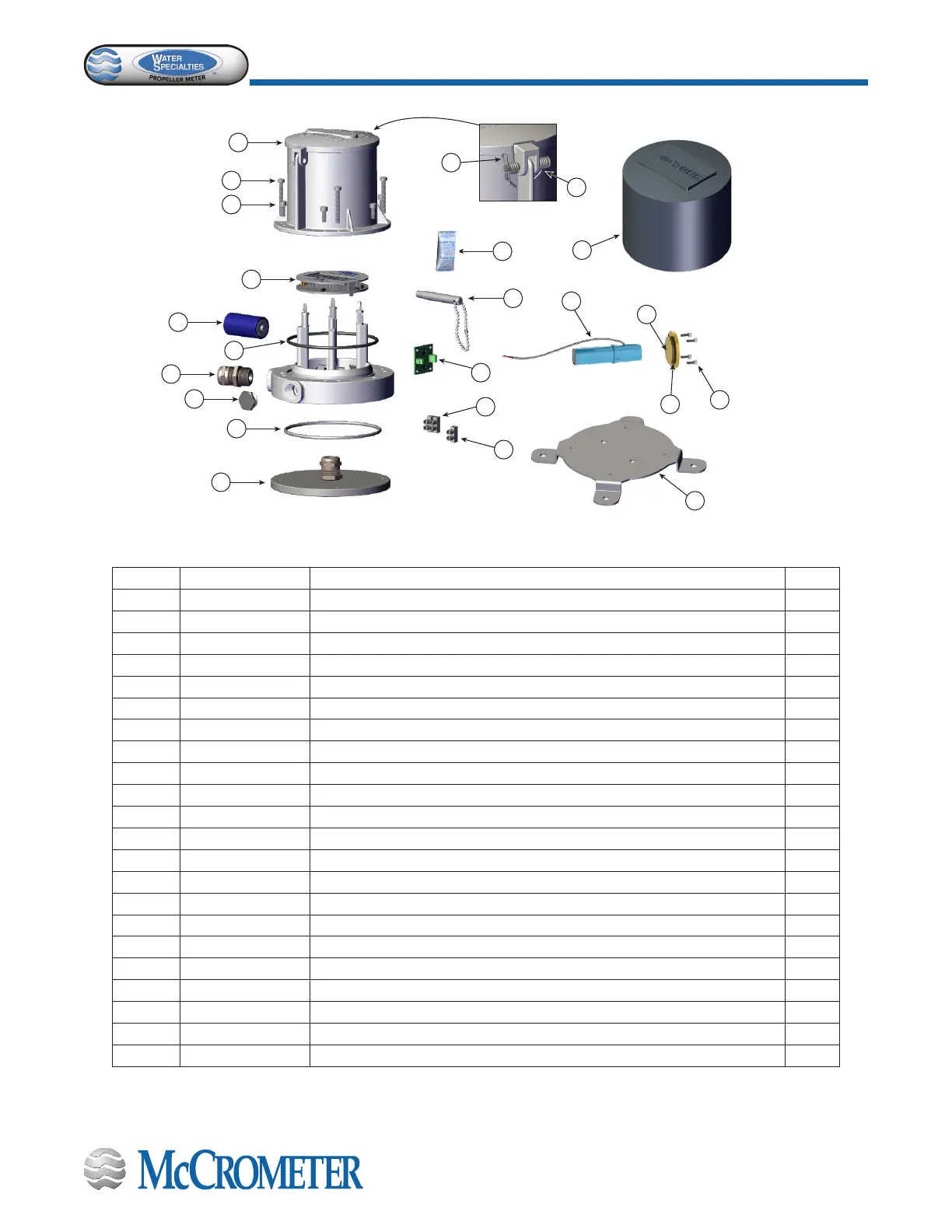

Figure 18. FlowCom Replacement Parts
Ref. Part Number Description Qty
1 R0710-60 Canopy Enclosure Water Specialties 1
2 10730 Screw 10-32 x 1.25” Long Fillister Head 4
3 10602 Screw 10-32 x 0.5” Long Socket Head Cap 6
4 ELR500-01 Electronic Register, FlowCom 1
5 EZ100-00 Battery C 3.6V Lithium 1
6 10285 O-Ring (237 Buna) 1
7 EJ539-00 / EJ543-00 Fitting Cable Compression PG7 (Inside) / Fitting Cable PG11 Brass Plate (Outside) Note 1
8 EJ544-00-K Plug PG7 Slotted w/O-ring Note 1
9 1-1551-38 O-Ring (243 Buna) 1
10 3-4397-4 Meter Head Cover with O-Ring & Cable Out (Remote Only) 1
11 1-1707-18 Inline Terminal 1 Wire 1
12 1-1707-19 Inline Terminal 2 Wire 1
13 EB420-02 4-20mA Protection Board 1
14 FC100-M Magnet Wand 2
15 10015-00 Dry Pack 2
16 RP100-00 Retaining Pin SS F/Canopy 1
17 SP100-00 Spring Double Torsion F/Canopy 1
18 CB100-10 Canopy Boot 1
19 4-2745-2 / 4-2748-8 Sensor Pulse Transmitter 2 Pulse / Sensor Pulse Transmitter 8 Pulse 1
20 2-2731-SS Gear Box Cover with O-Ring 1
21 1-1551-2 O-Ring (028 Buna) 1
22 1-1103-8-7 Screw 8-32 x 7/16” Long 4
23 1-2802 Remote Wall Bracket 1
Notes:
1. Quantity is based on the model selected.
Recommended parts for technicians: FC100-M (2 each), EZ100-00 (quantity as required), 10015-00 (quantity as required).
1
17
16
13
14
15
2
3
5
8
9
10
11
12
7
6
4
20
23
18
19
21
22
